Wiper/Washer System Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

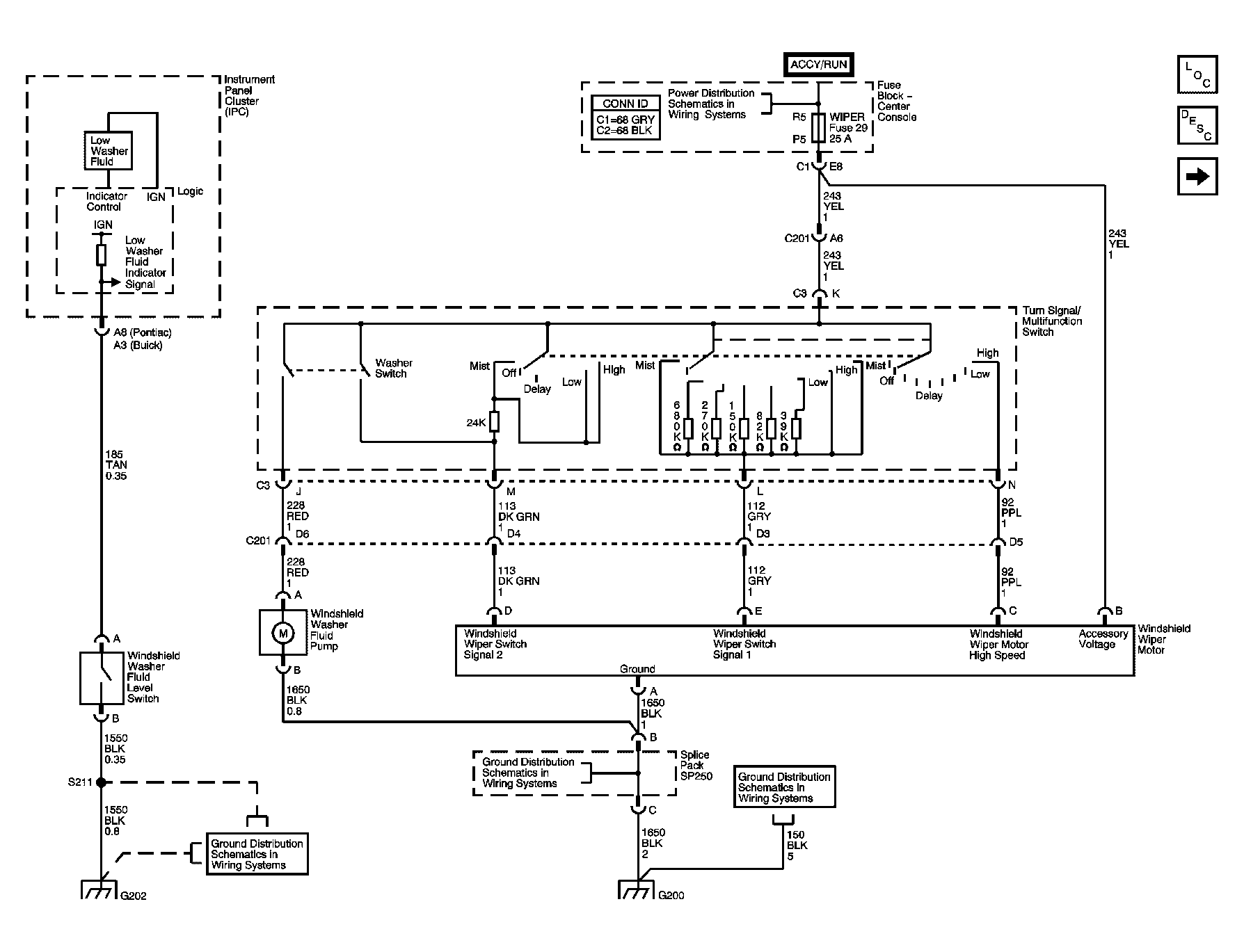

Fig 1: Windshield Wiper/Washer Schematic
GM628109Courtesy of GENERAL MOTORS CORP.

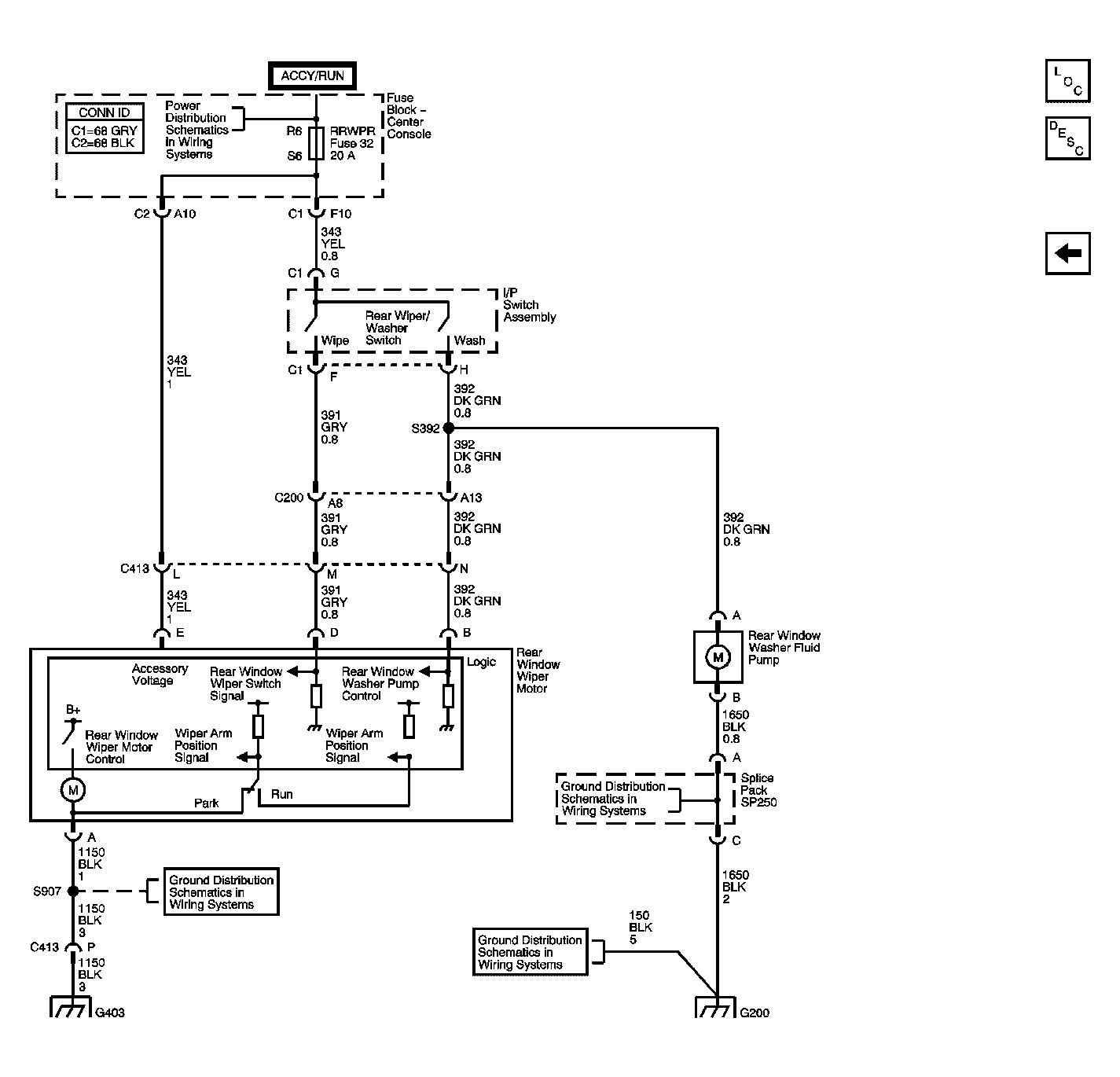

Fig 2: Rear Wiper/Washer Schematic
GM792011Courtesy of GENERAL MOTORS CORP.
