Home >> Pontiac >> 2001 >> Aztek Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wiper System And Washer System >> Removal & Installation >> Washer Fluid Level Sensor >> Removal

Washer Fluid Level Sensor: Removal

  1. Open hood.
  2. Drain washer solvent from washer solvent container.
  3. Disconnect washer solvent container level sensor harness connector.
  4. Using a small flat-bladed tool, remove washer solvent container level sensor and seal from washer solvent container. See Fig 1 .

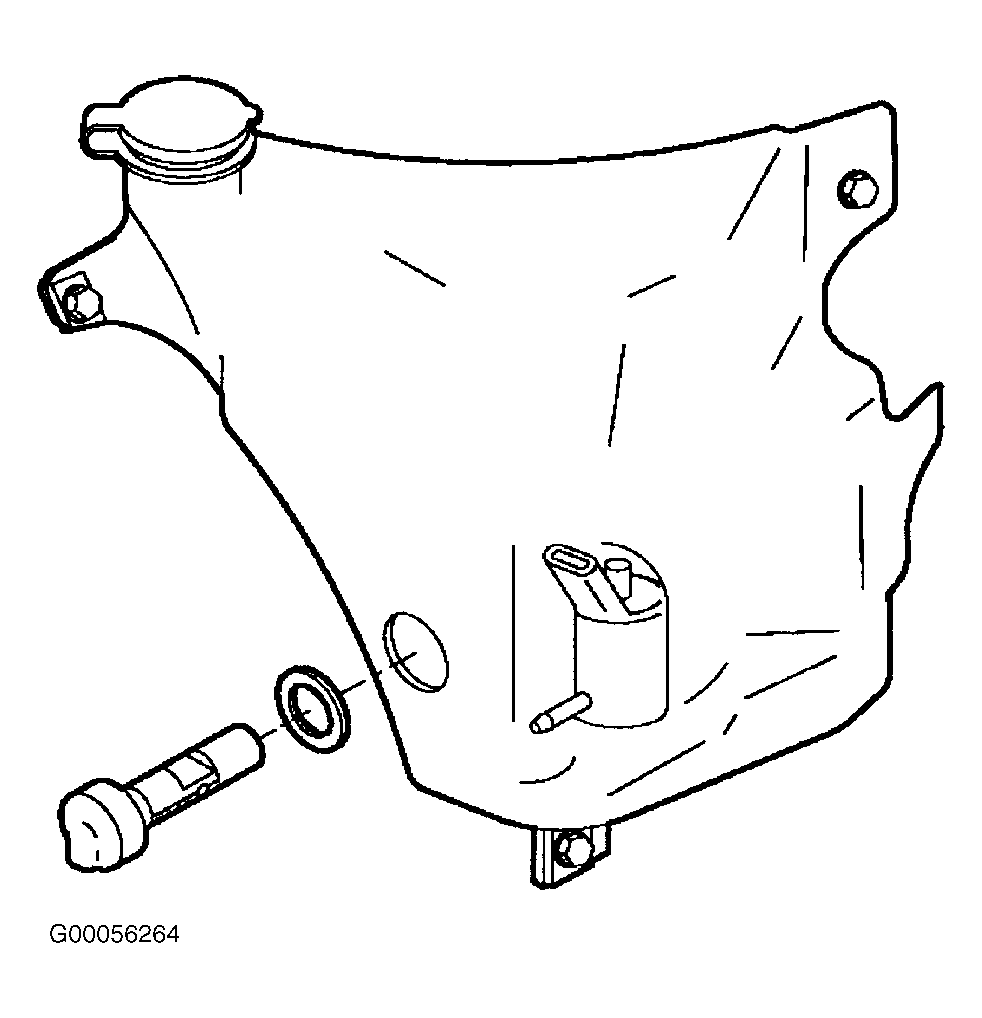

Fig 1: Removing & Installing Washer Solvent Container Level Sensor
G00056264Courtesy of GENERAL MOTORS CORP.
