Test C: Unlock Inoperative, Lock Operates

For test procedure, refer to illustrations. See Figure and Fig 1 .

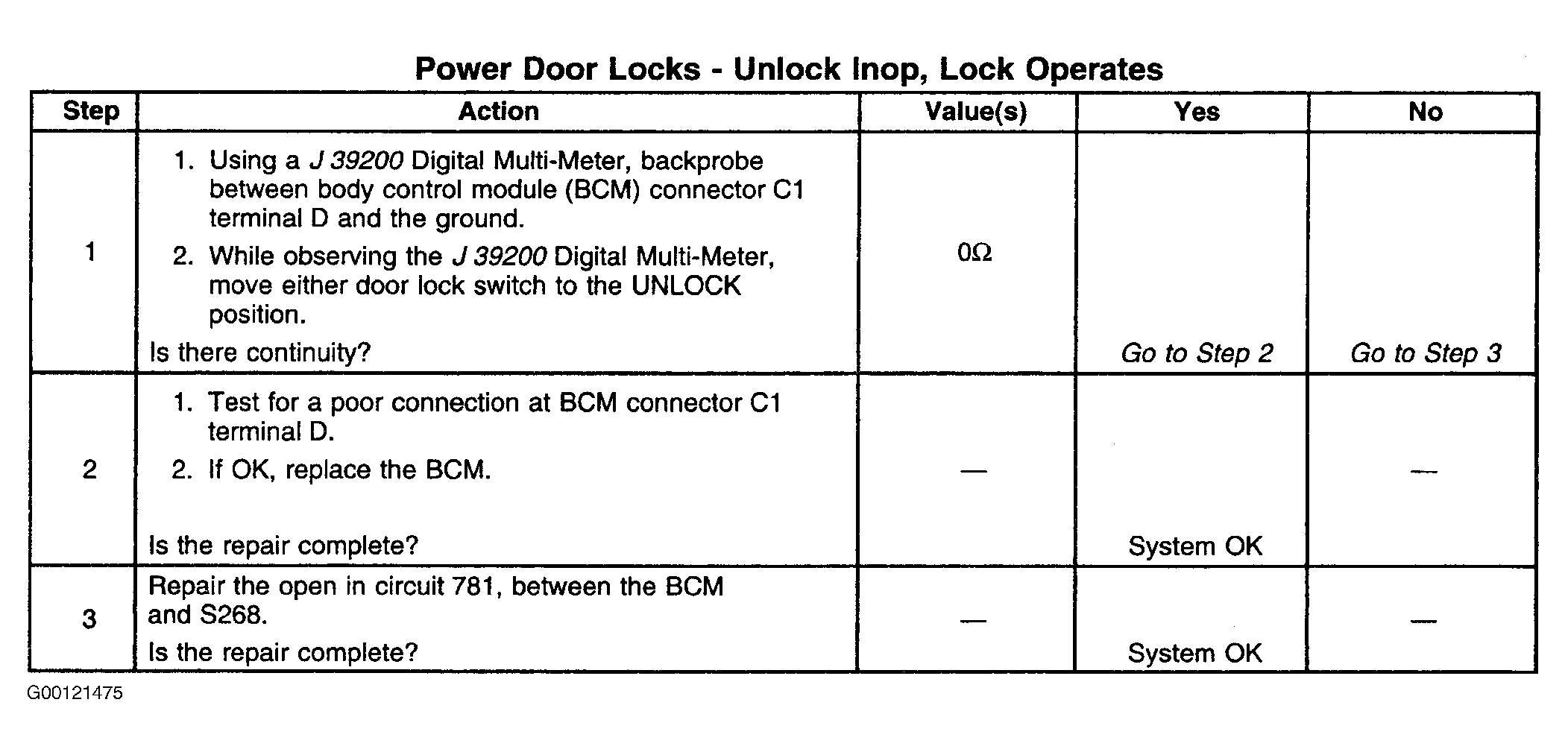

Fig 1: Test C: Testing Unlock Inoperative, Lock Operates

G00121475

Courtesy of GENERAL MOTORS CORP.
