Test B: Lock Inoperative, Unlock Operates

For test procedure, refer to illustrations. See Fig 1 and Fig 2 .

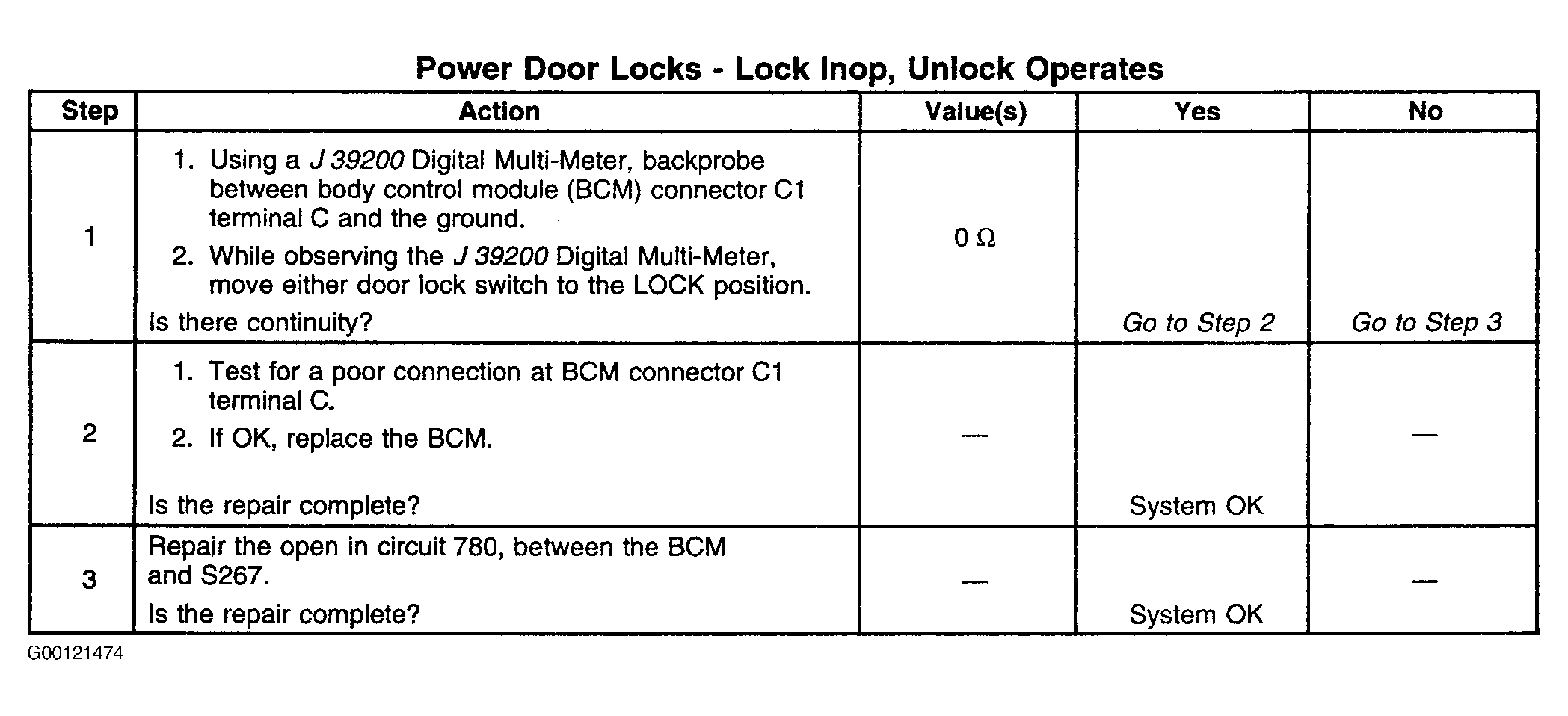

Fig 1: Test B: Lock Inoperative, Unlock Operates

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying BCM Harness Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.
