Diagnostic Aids

Check all connections to transmission pass-through connector. An open in the ignition feed circuit will cause multiple codes to set.

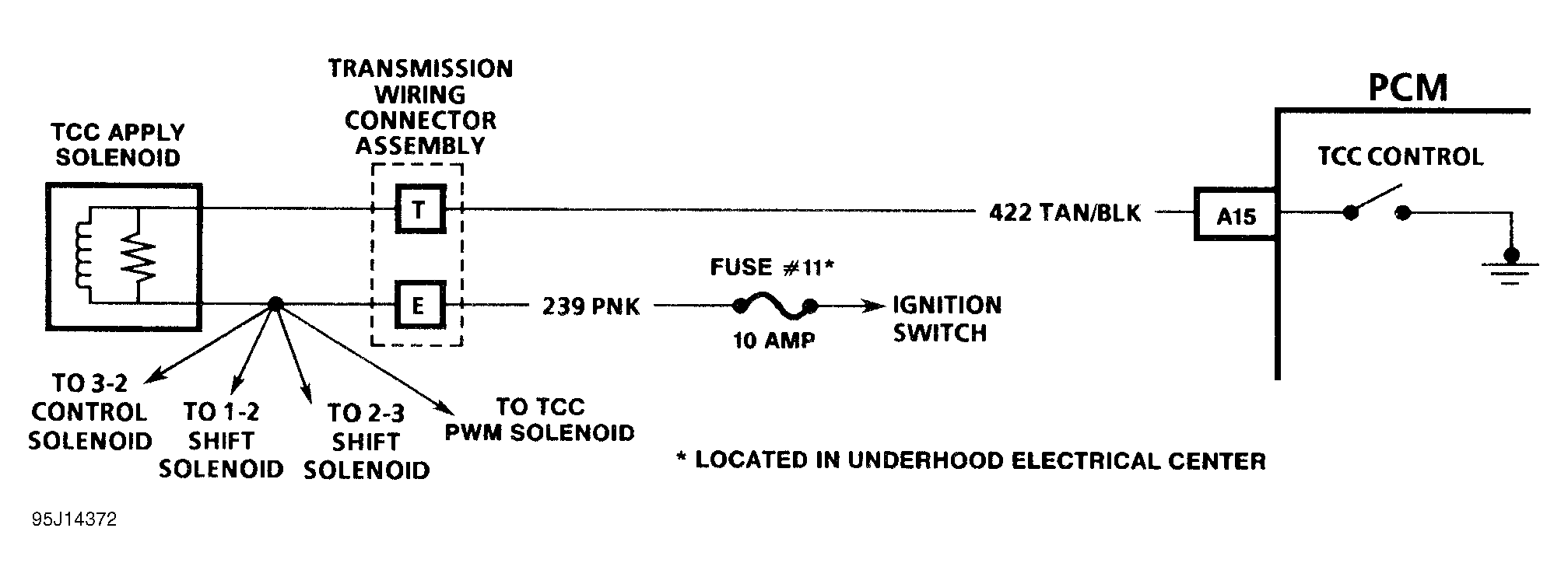

Fig 1: Code 90 Schematic (3.4L (VIN S)) TCC Solenoid Circuit

Fig 2: Code 90 Diagnostic Flow Chart (3.4L (VIN S)) TCC Solenoid Circuit
