Connector Identification

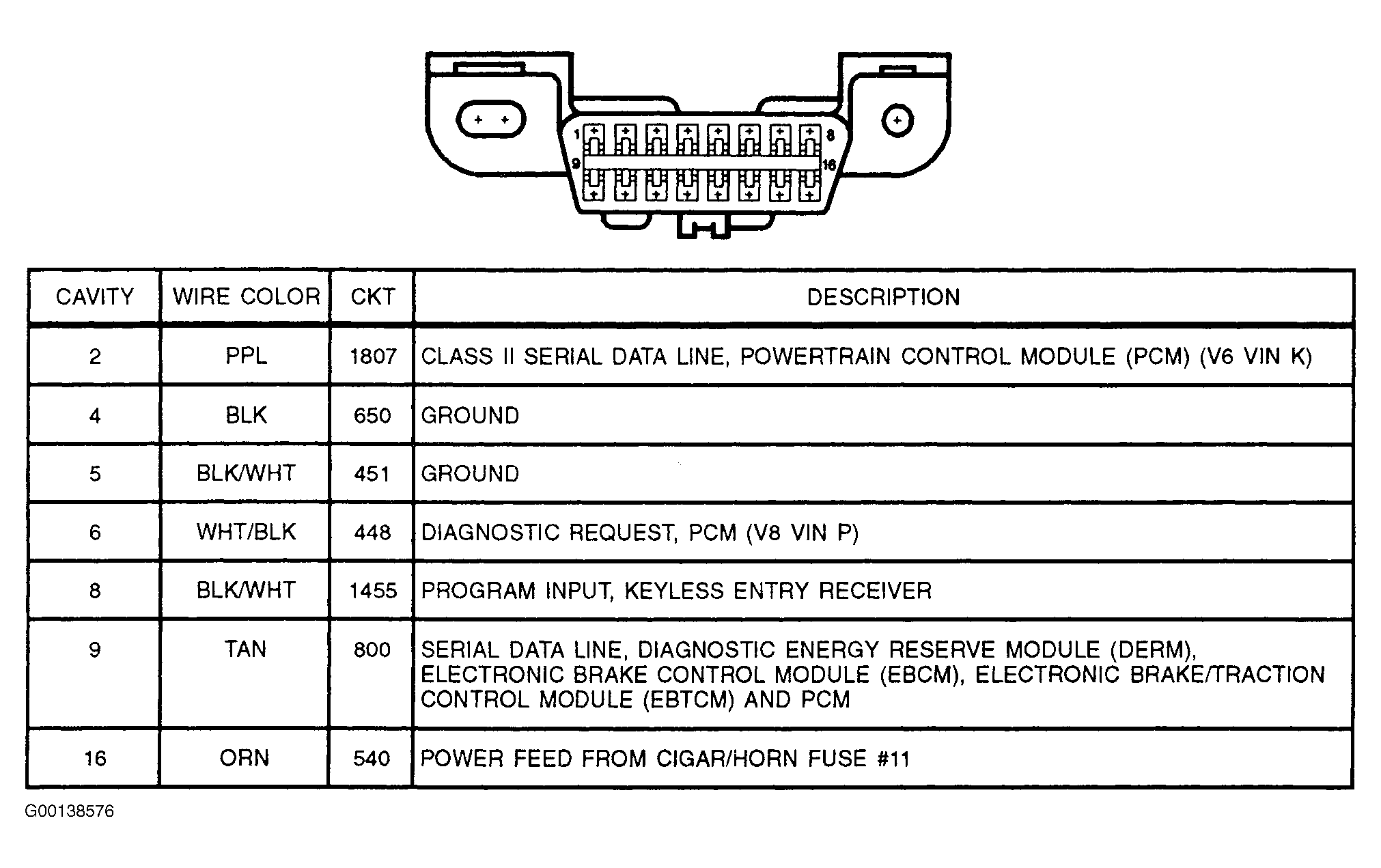

Fig 1: Identifying DLC Terminals

G00138576

Courtesy of GENERAL MOTORS CORP.
