Flow Chart 4, Bladder Inflates, But Does Not Deflate (Firebird)
Flow Chart 4, Bladder Inflates, But Does Not Deflate (Firebird)

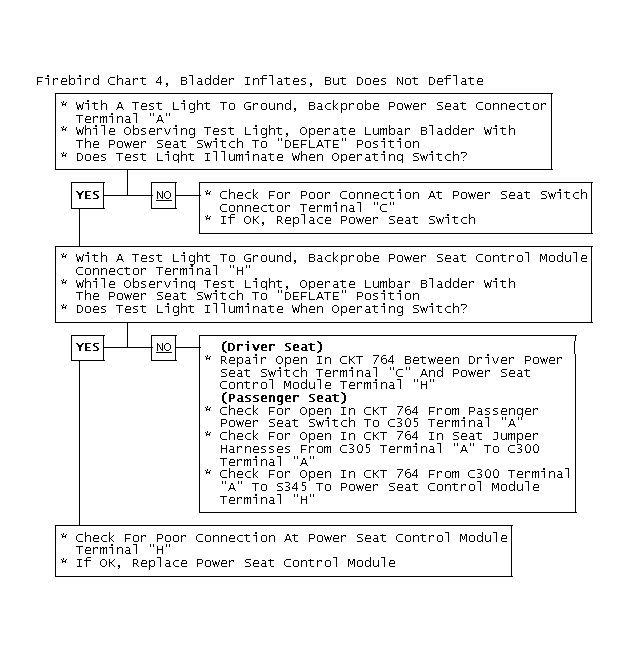

Fig 1: Firebird Chart 4, Bladder Inflates, But Does Not Deflate
