Diagnostic Aids

Because coil driver gets its power from coil, check ignition feed circuit to ignition coil for opens.

Fig 1: Code 41 Schematic (5.7L "F" Body) Opti-Spark Ignition System (Open or Shorted EST Circuit)
G93B39306

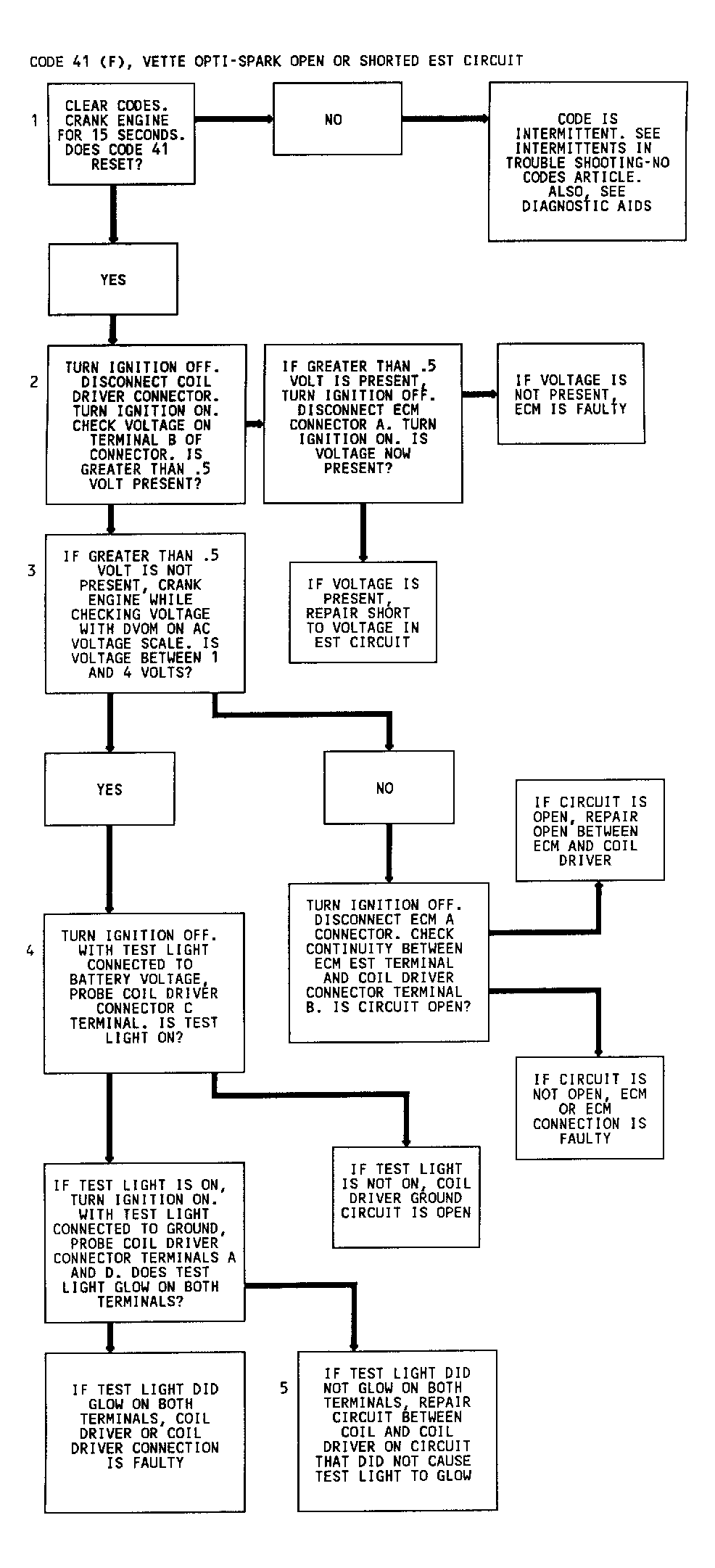

Fig 2: Code 41 Flow Chart (5.7L "F" Body) Opti-Spark Ignition System (Open or Shorted EST Circuit)
G92I04337
