Home >> Pontiac >> 1991 >> Grand Prix GTP >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> Removal & Installation >> Remote Door Lock Receiver (Keyless Entry Module) >> Removal & Installation

Removal & Installation

  1. Remove rear-to-back window trim panel.
  2. Remove plastic rivets. See Fig 1 or Fig 2 .
  3. Remove the receiver from the panel.
  4. Disconnect electrical connection from the receiver.
  5. To install, reverse removal procedure. If coding the system is necessary, refer to CODING TRANSMITTER  .

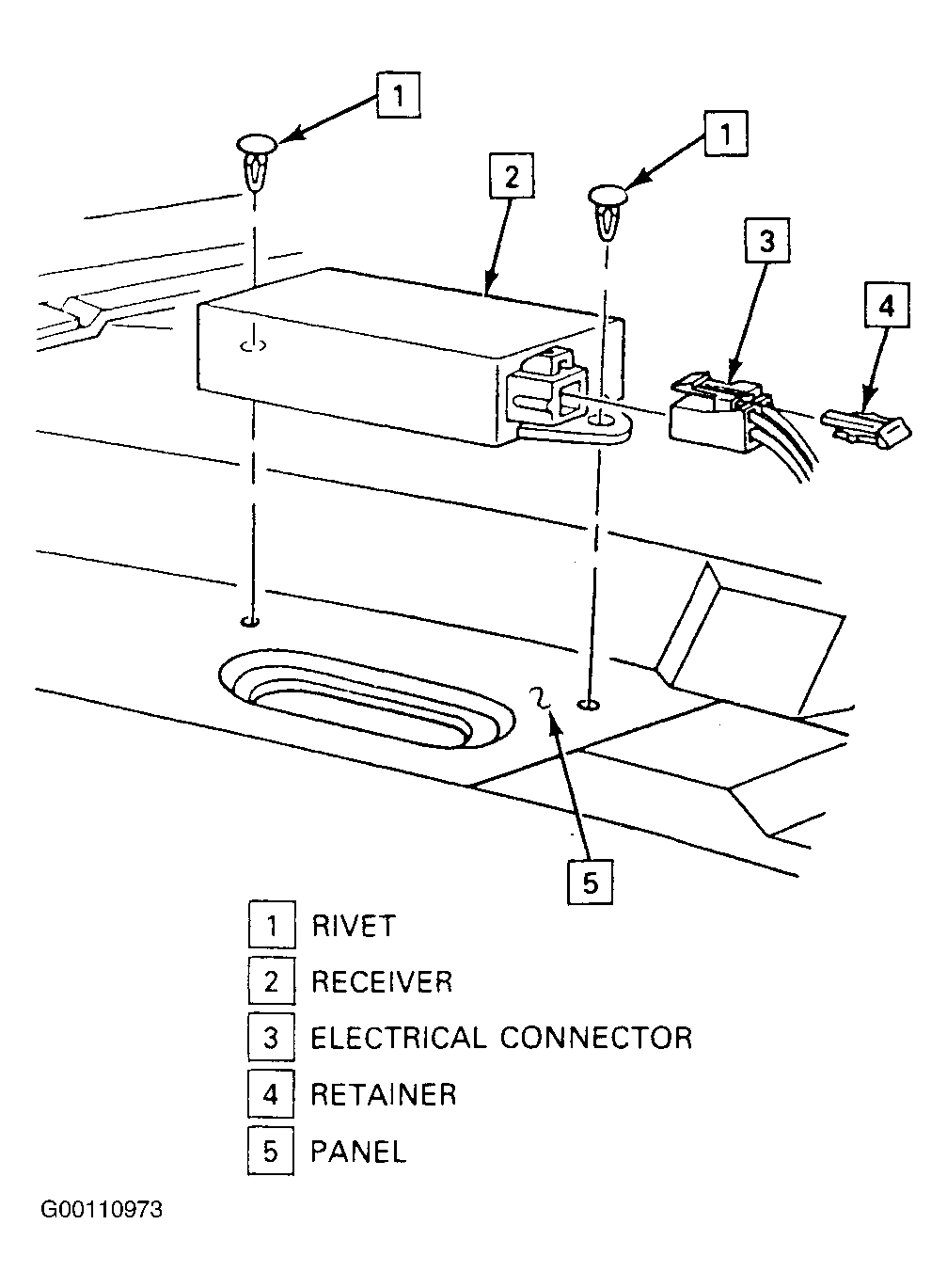

Fig 1: Removing & Installing Remote Door Lock Receiver (Coupe)
G00110973Courtesy of GENERAL MOTORS CORP.

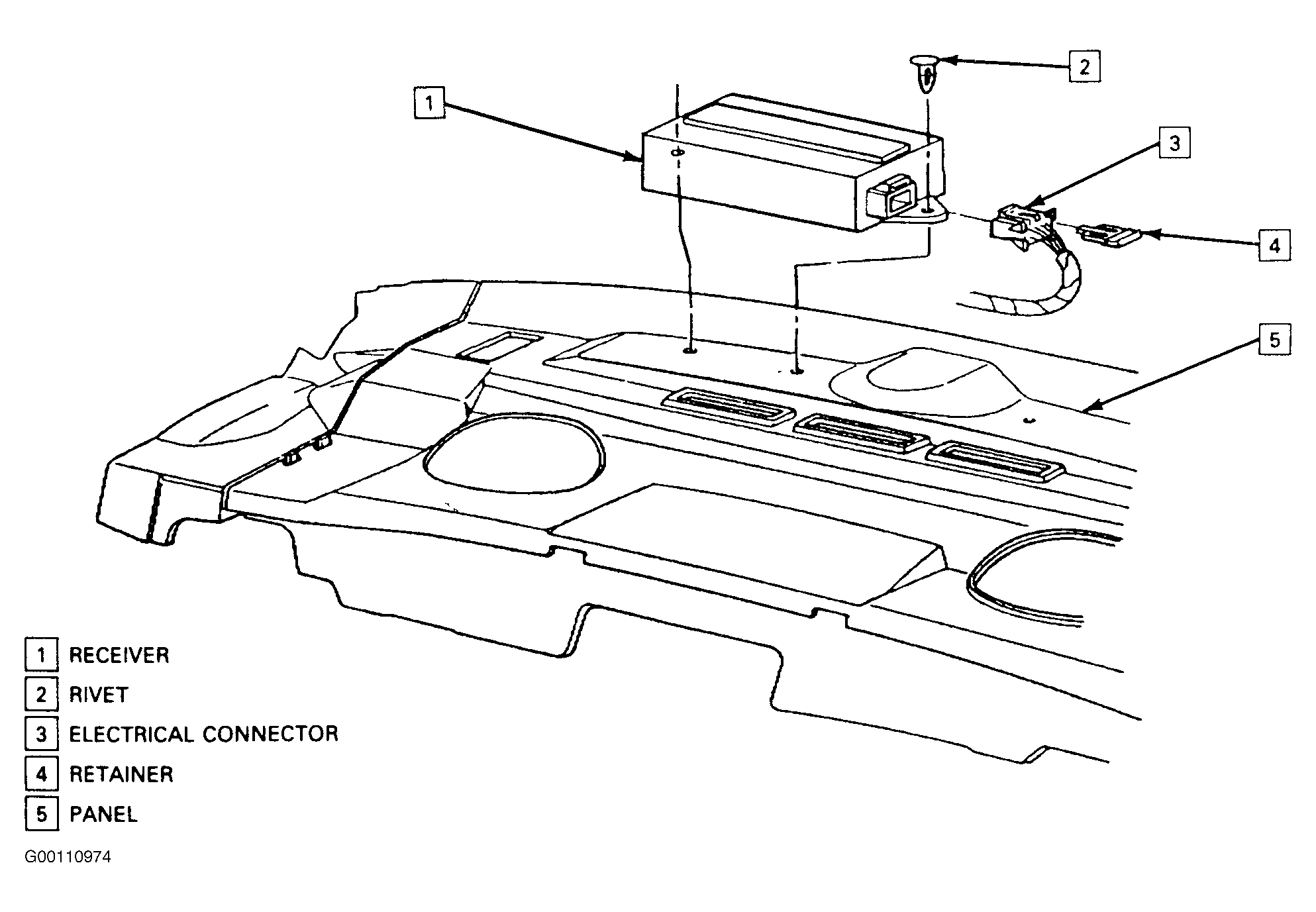

Fig 2: Removing & Installing Remote Door Lock Receiver (Sedan)
G00110974Courtesy of GENERAL MOTORS CORP.
