ECM/Pcm Wiring Diagram(S)

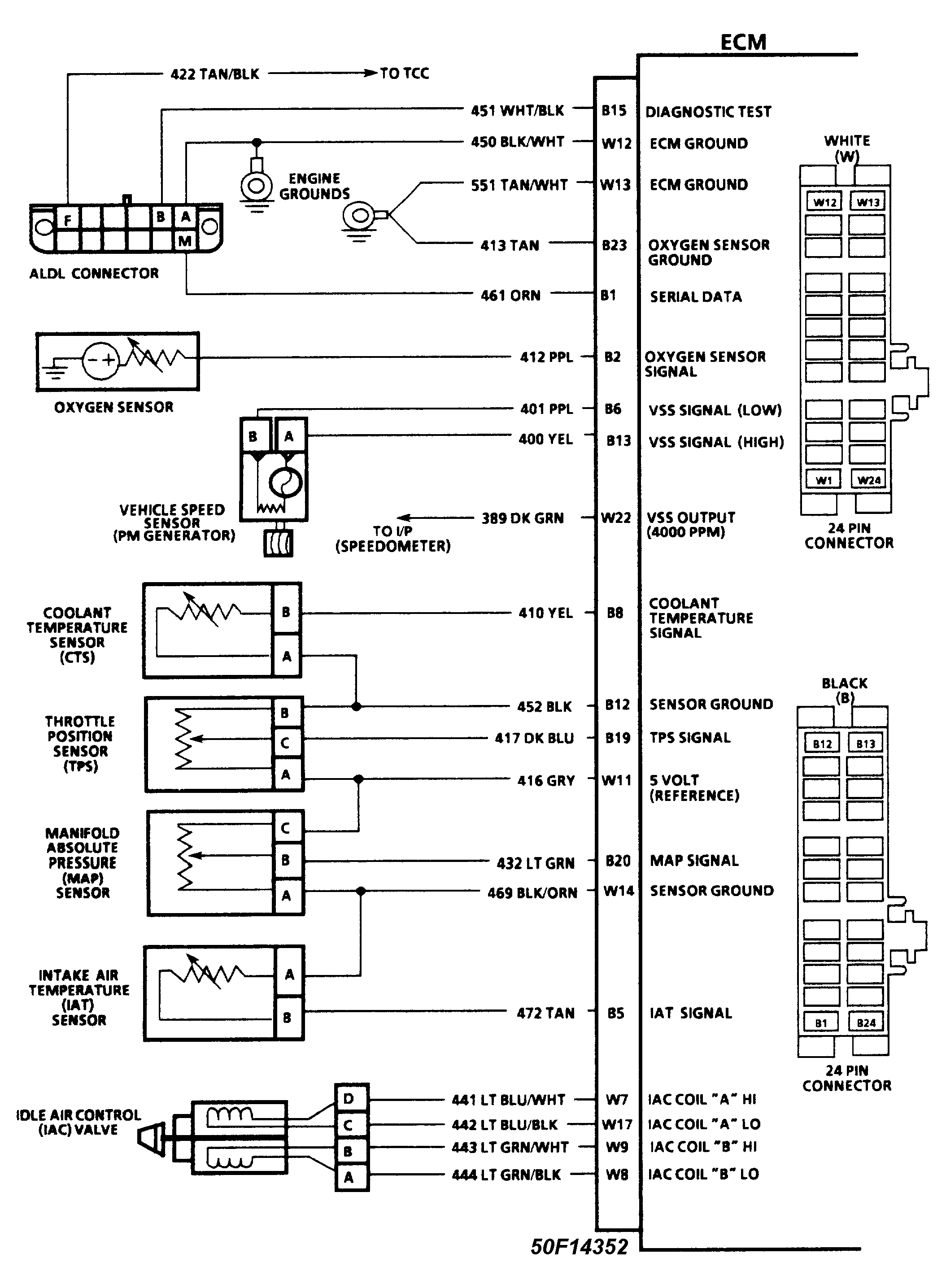

Fig 1: ECM Wiring Diagram - 2.5L VIN U (1 Of 3)
G50F14352Courtesy of GENERAL MOTORS CORP.

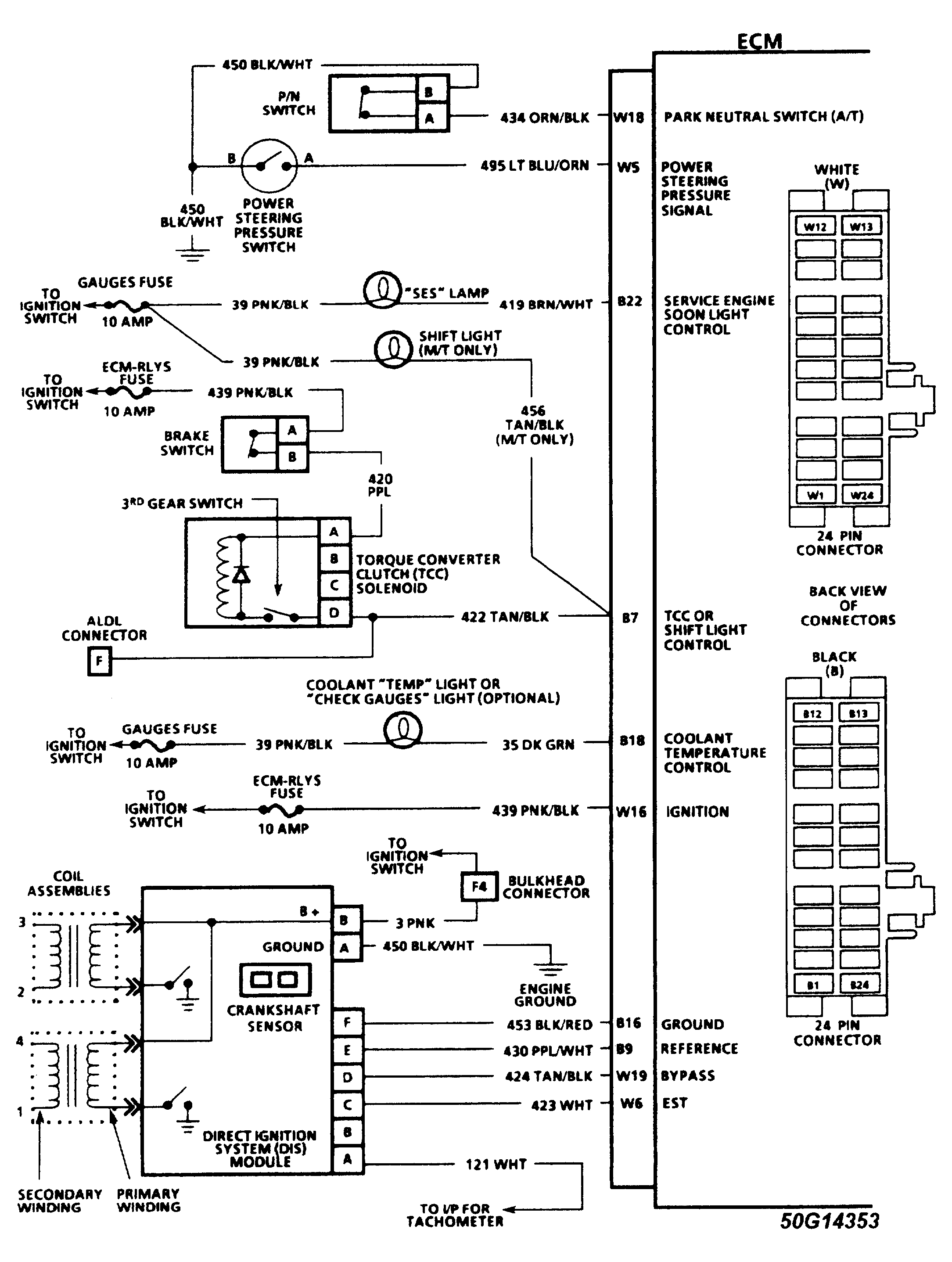

Fig 2: ECM Wiring Diagram - 2.5L VIN U (2 Of 3)
G50G14353Courtesy of GENERAL MOTORS CORP.

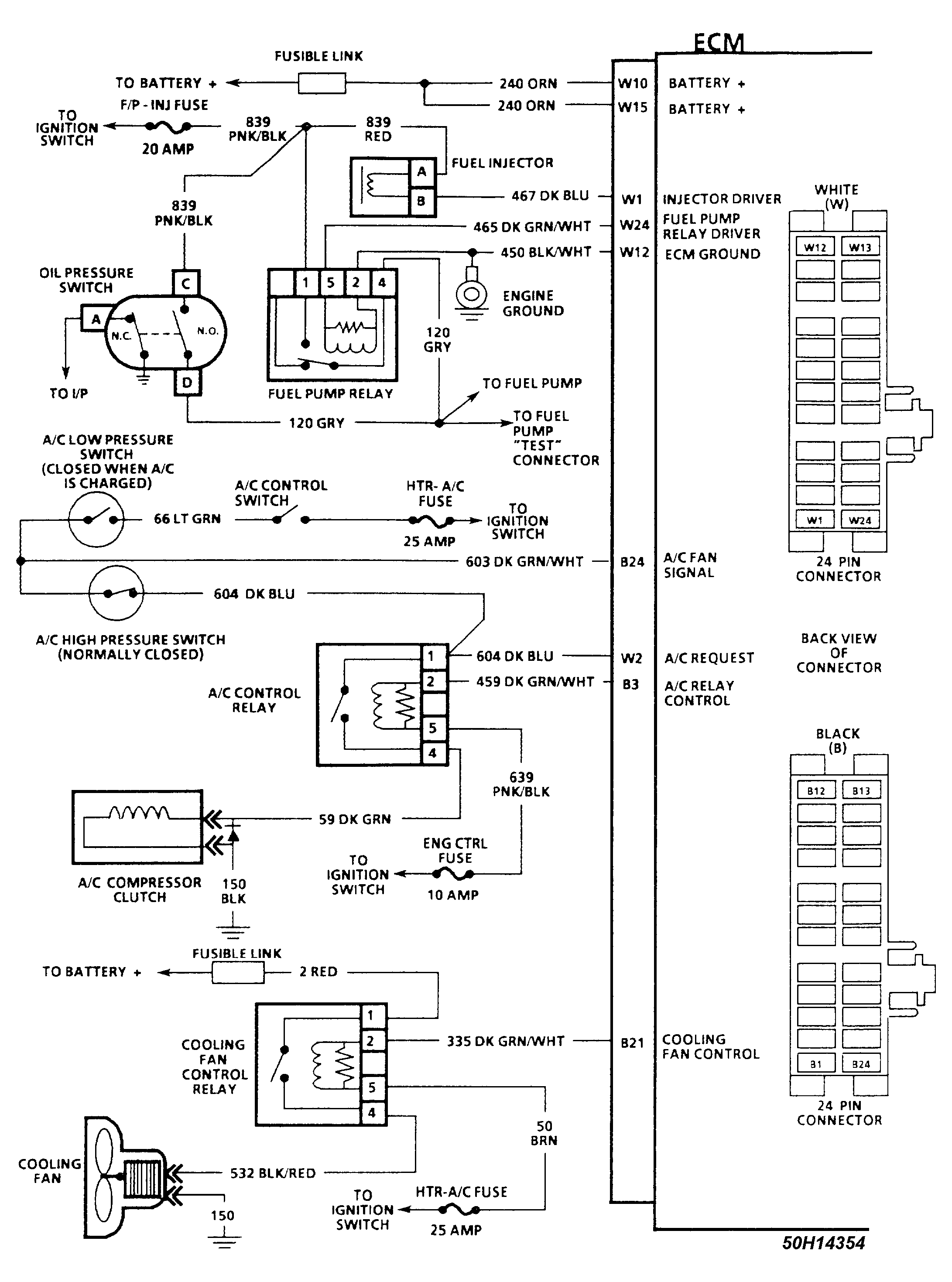

Fig 3: ECM Wiring Diagram - 2.5L VIN U (3 Of 3)
G50H14354Courtesy of GENERAL MOTORS CORP.
