Test D: Rear Window Switch Test

For testing procedure, see Fig 1 .

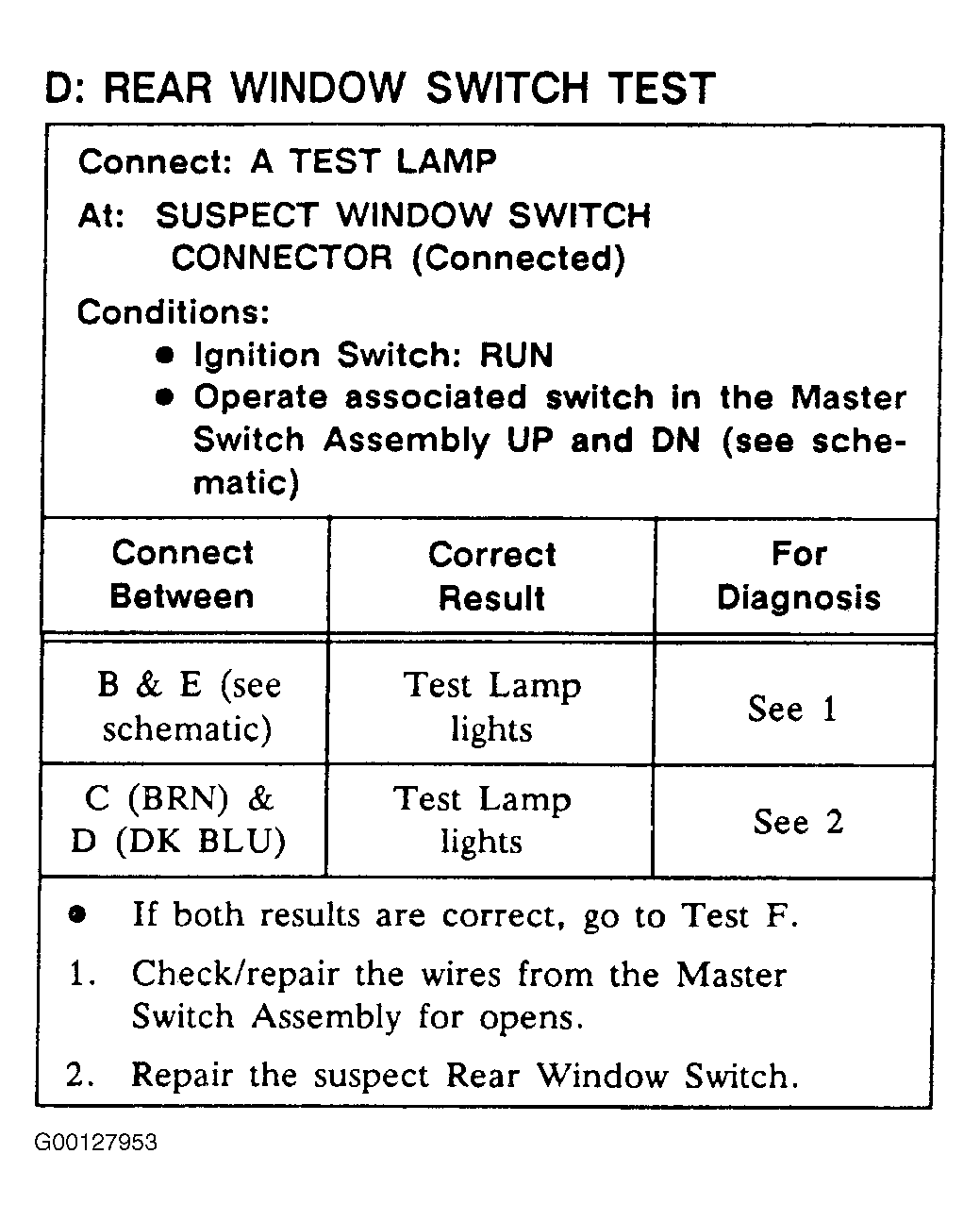

Fig 1: Test D: Rear Window Switch Test

G00127953

Courtesy of GENERAL MOTORS CORP.
