Component Locations

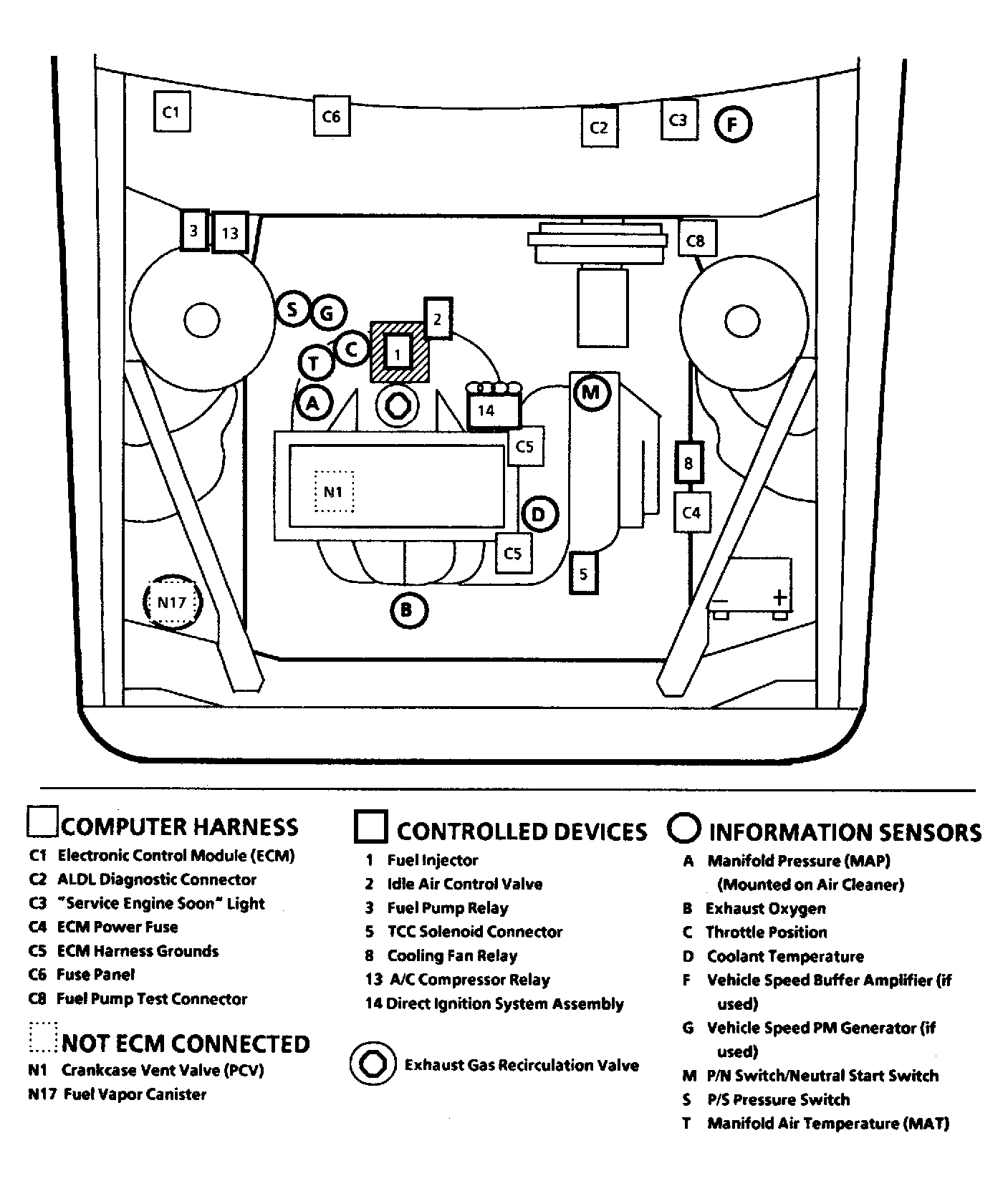

Fig 1: TBI Component Locations, A Body 2.5L (VIN R)

G74028

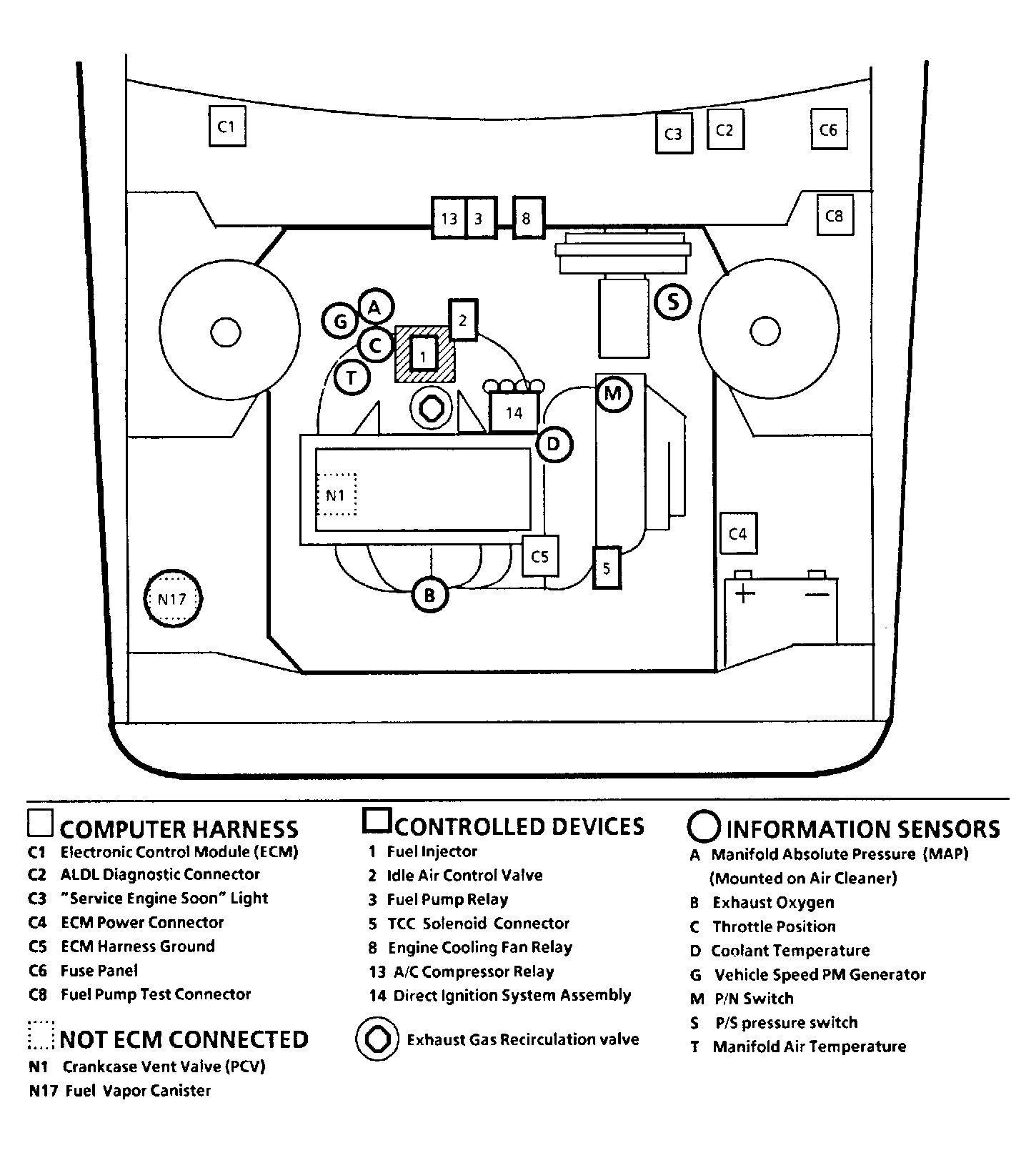

Fig 2: TBI Component Locations, N Body 2.5L (VIN U)

G74029

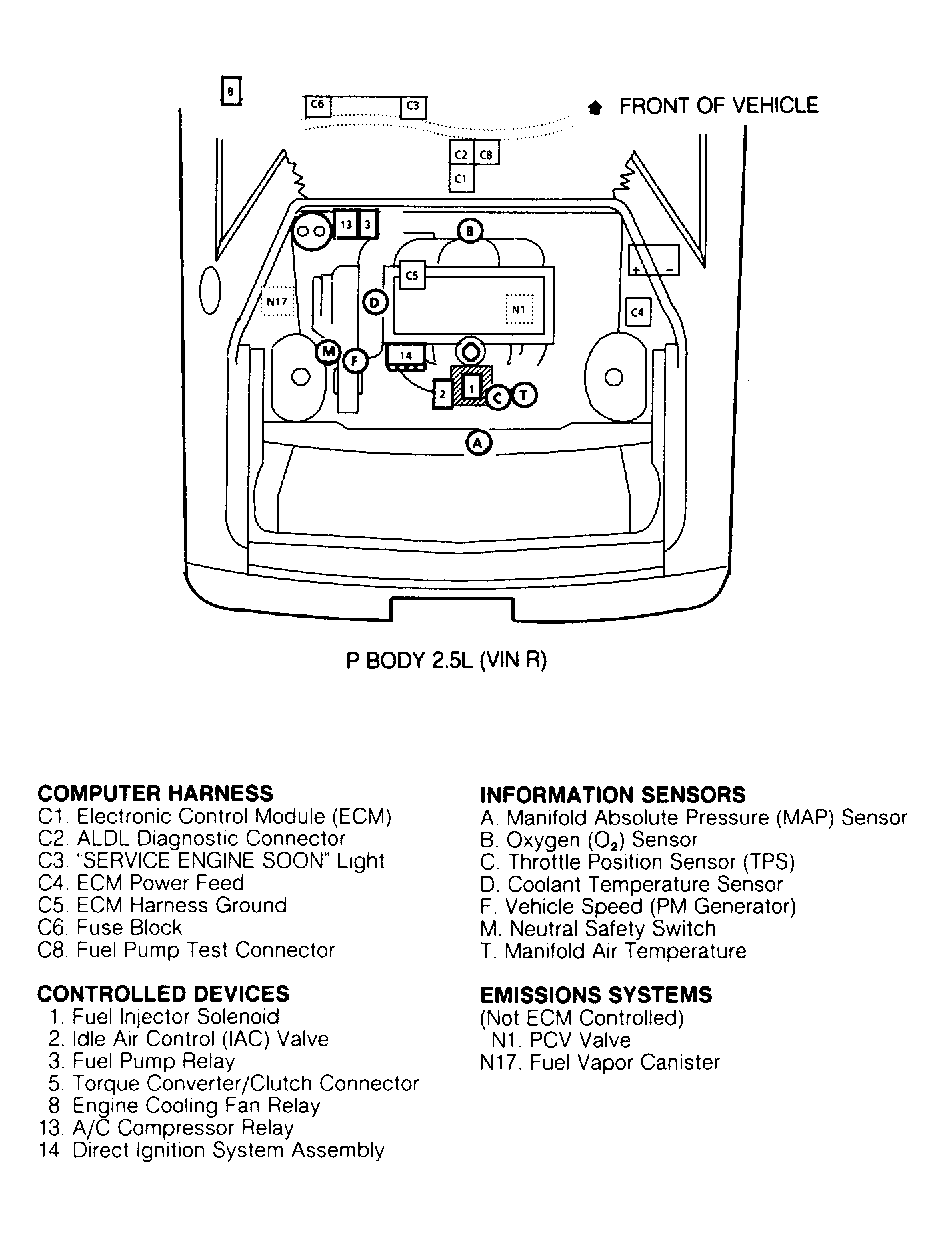

Fig 3: TBI Component Locations, P Body 2.5L (VIN R)

G7052
