Home >> Pontiac >> 1986 >> 6000 STE >> Repair and Diagnosis >> Engine Performance >> System >> 2.8L Feedback Carburetor Tests W/Codes >> Component Locations & Terminal Identification >> Component Locations

Component Locations

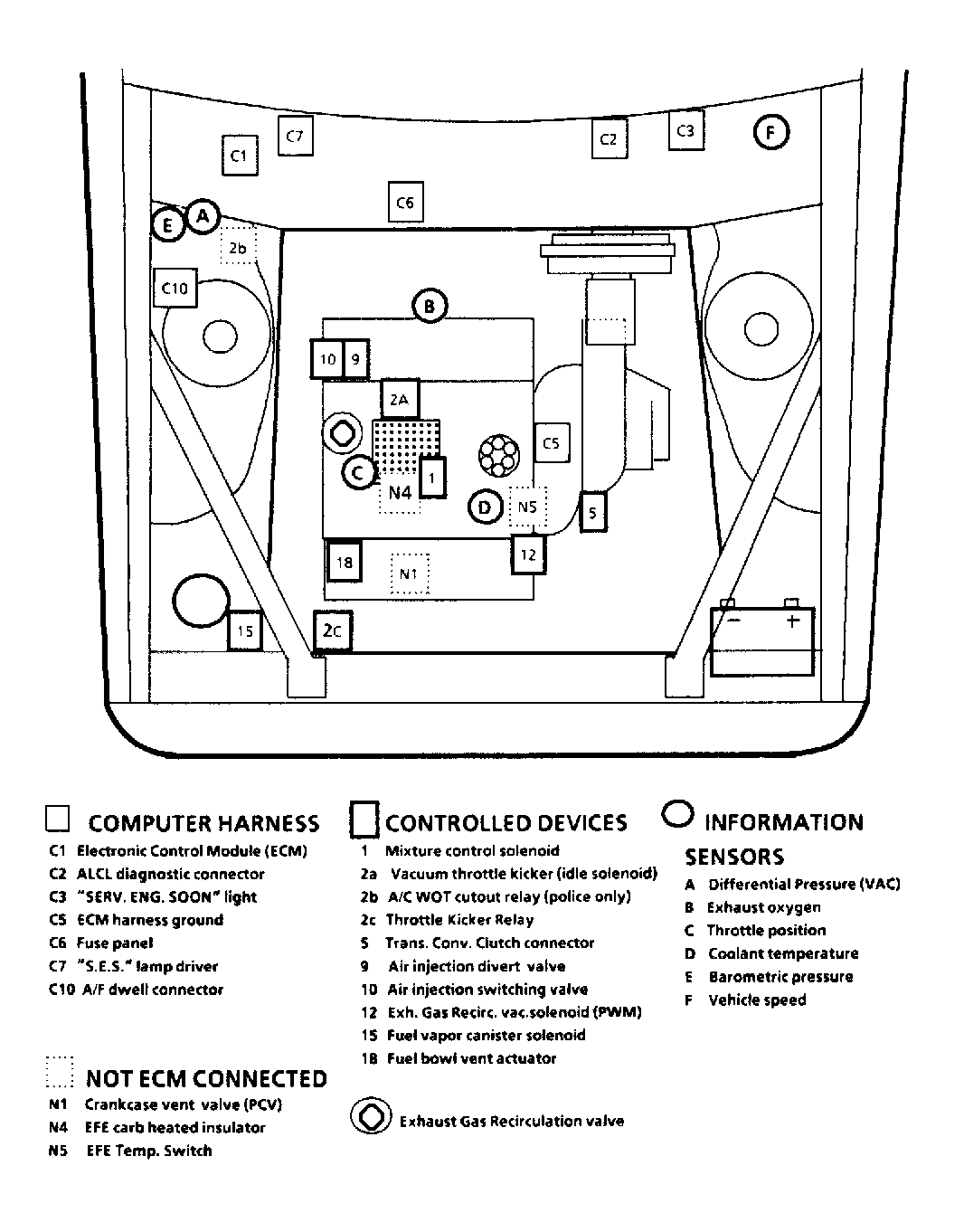

Fig 1: Component Locations "A" Body, 2.8L (VIN X)

G70628
