Feedback Carburetor Component Test
>>
C2F - TPS Enrichment Check
C2F - TPS Enrichment Check

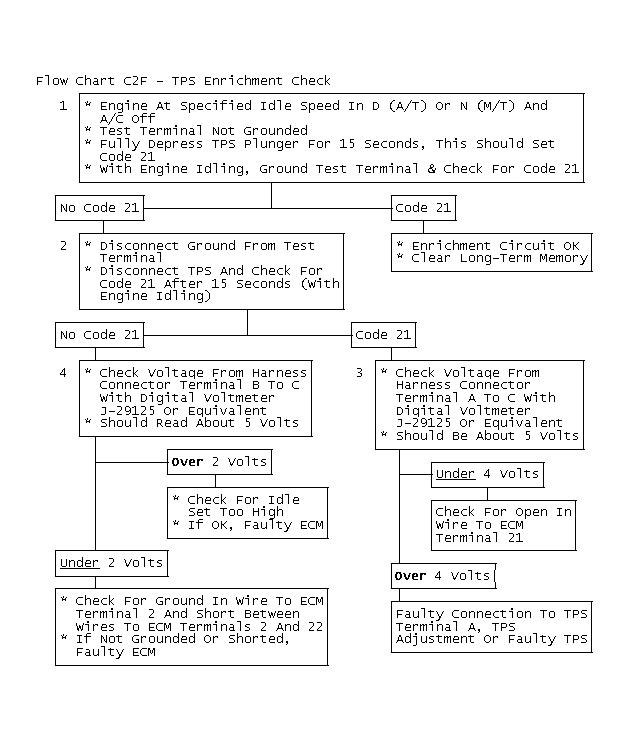

Fig 1: Flow Chart C2F - TPS Enrichment Check

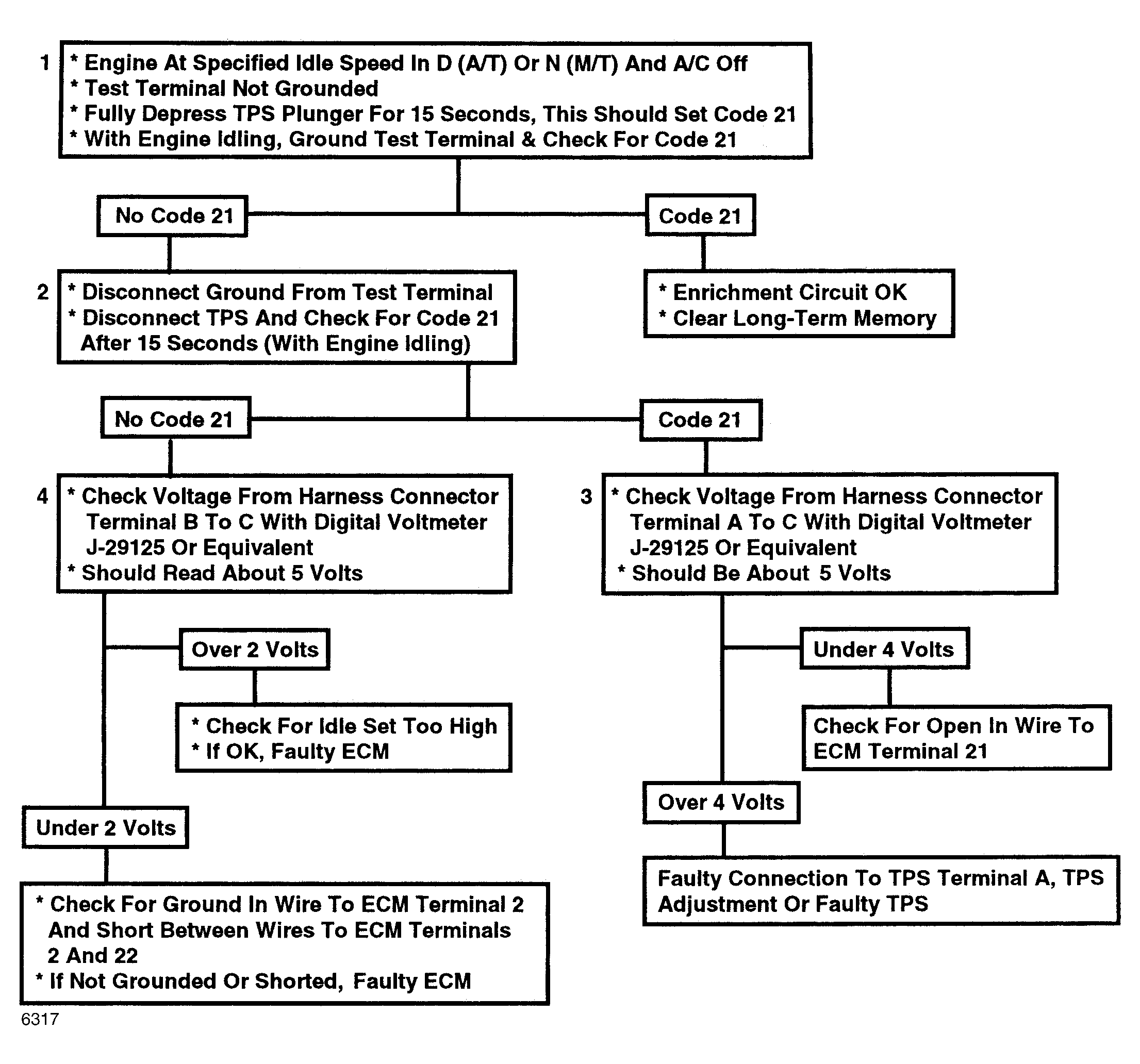

Fig 2: Flow Chart C2F - TPS Enrichment Check
