Automatic Temperature Control Diagnosis Guide

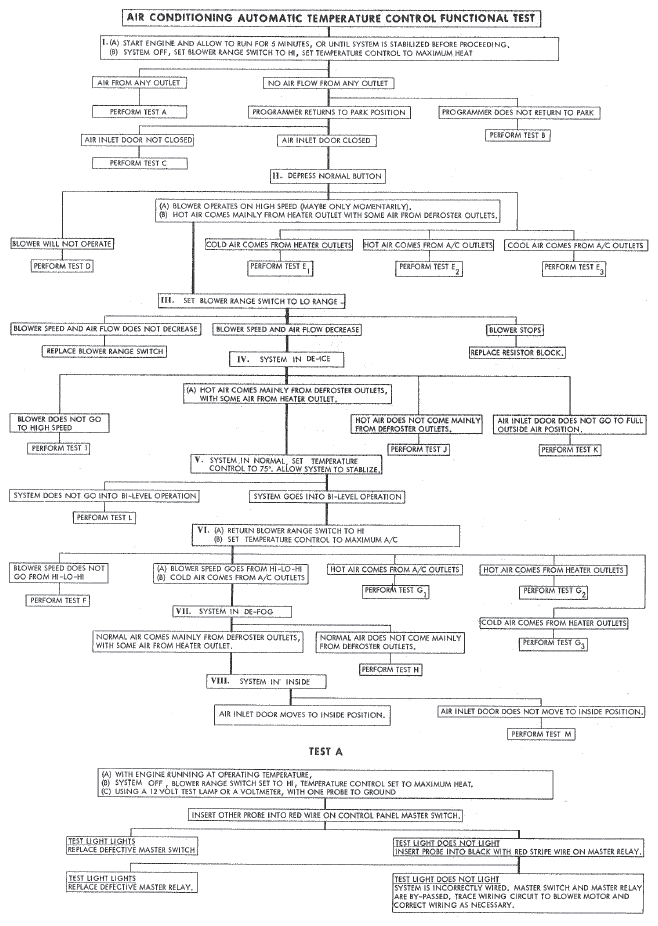

Fig 1: ATC Diagnosis Guide (1 Of 5)

Courtesy of GENERAL MOTORS COMPANY

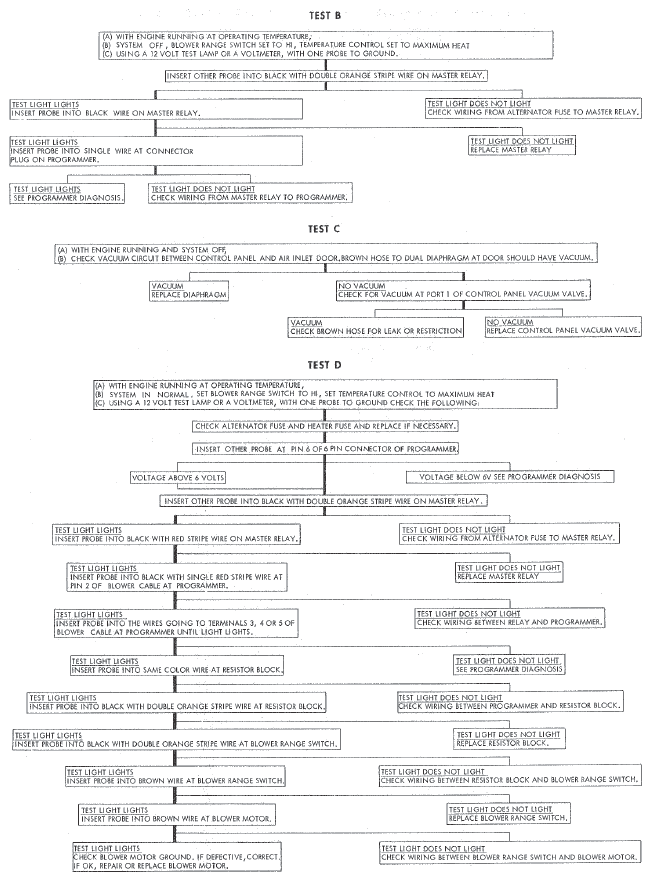

Fig 2: ATC Diagnosis Guide (2 Of 5)

Courtesy of GENERAL MOTORS COMPANY

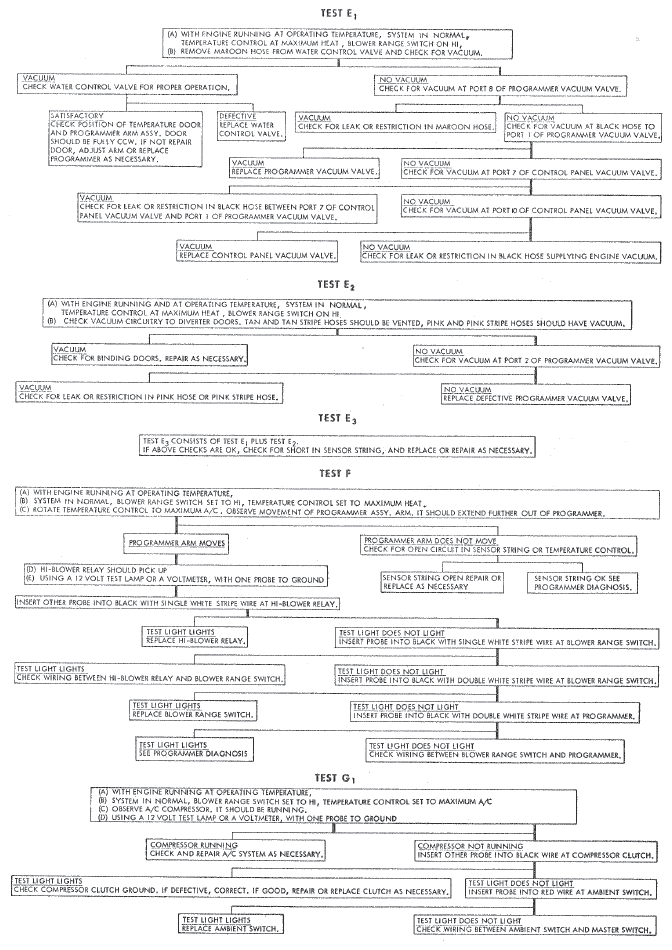

Fig 3: ATC Diagnosis Guide (3 Of 5)

Courtesy of GENERAL MOTORS COMPANY

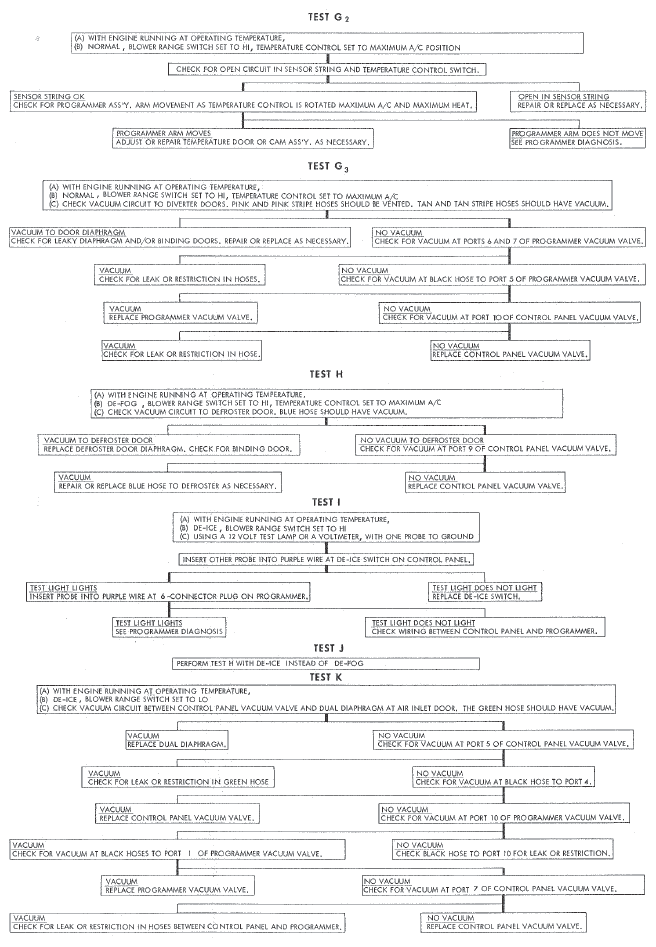

Fig 4: ATC Diagnosis Guide (4 Of 5)

Courtesy of GENERAL MOTORS COMPANY

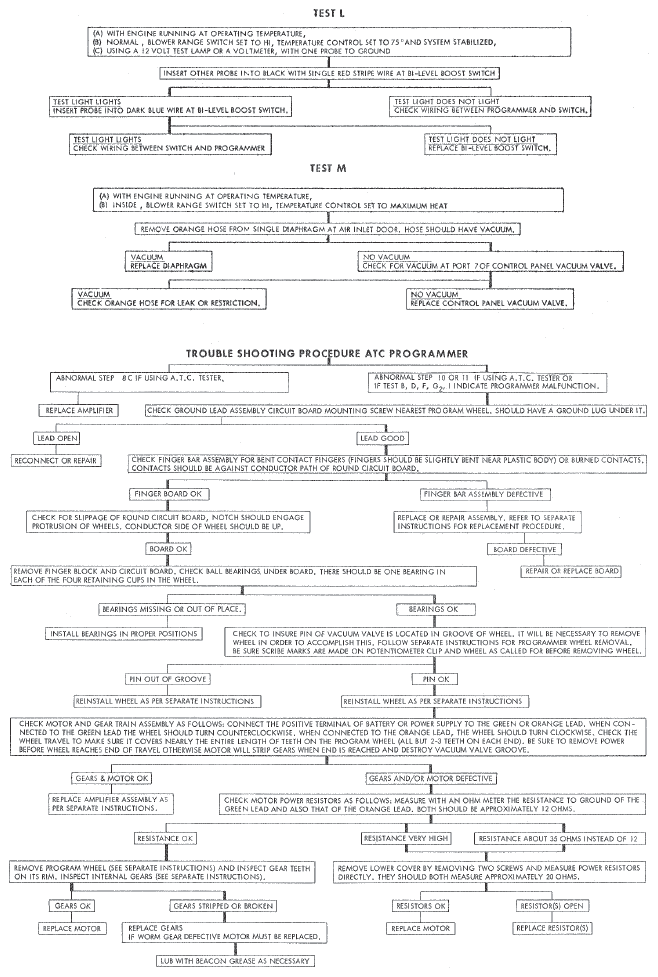

Fig 5: ATC Diagnosis Guide (5 Of 5)

Courtesy of GENERAL MOTORS COMPANY
