NS-1A: Reading Fault Codes & Checking For Spark

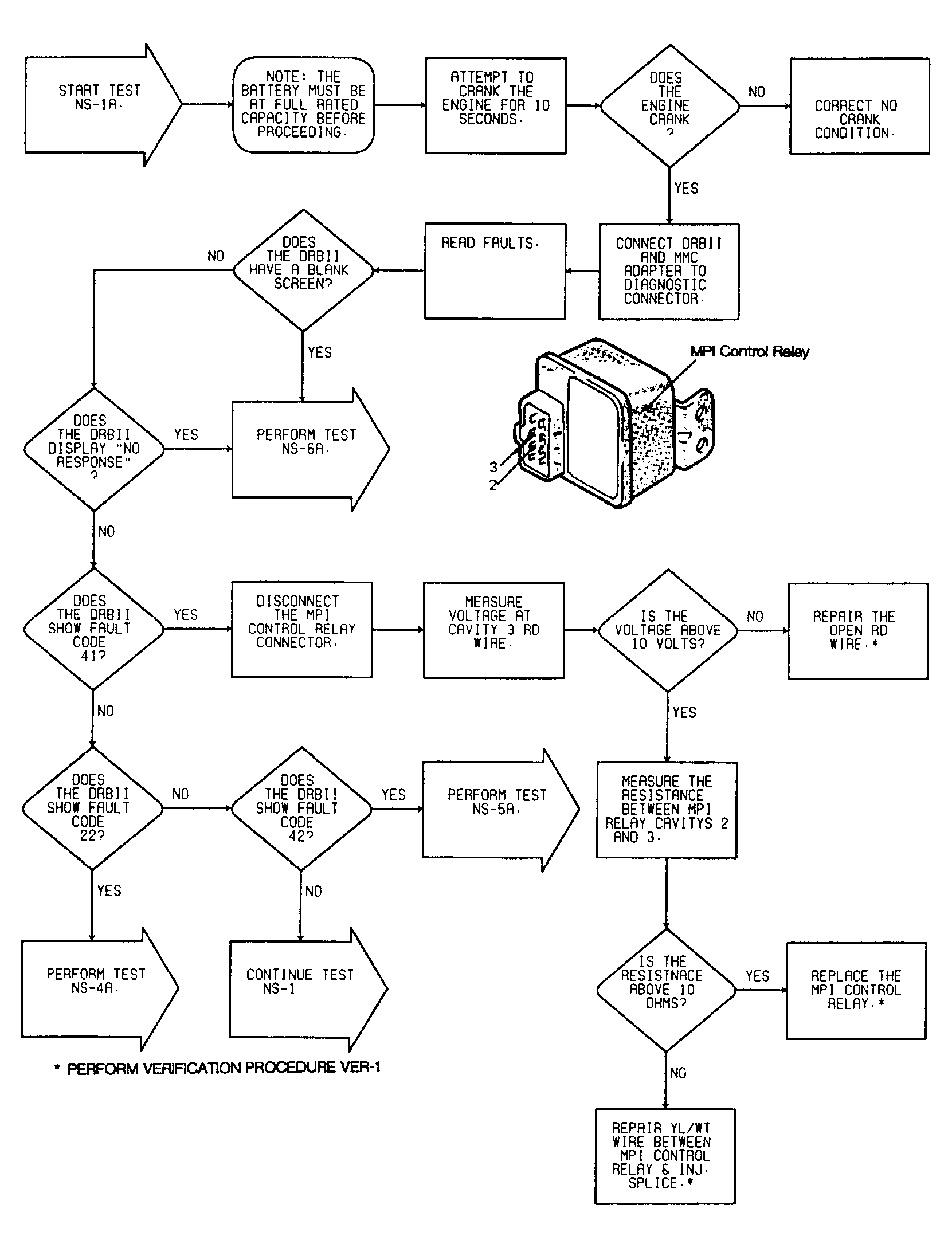

Fig 1: No Start Test NS-1A: Diagnostic Flow Chart (1 of 3)

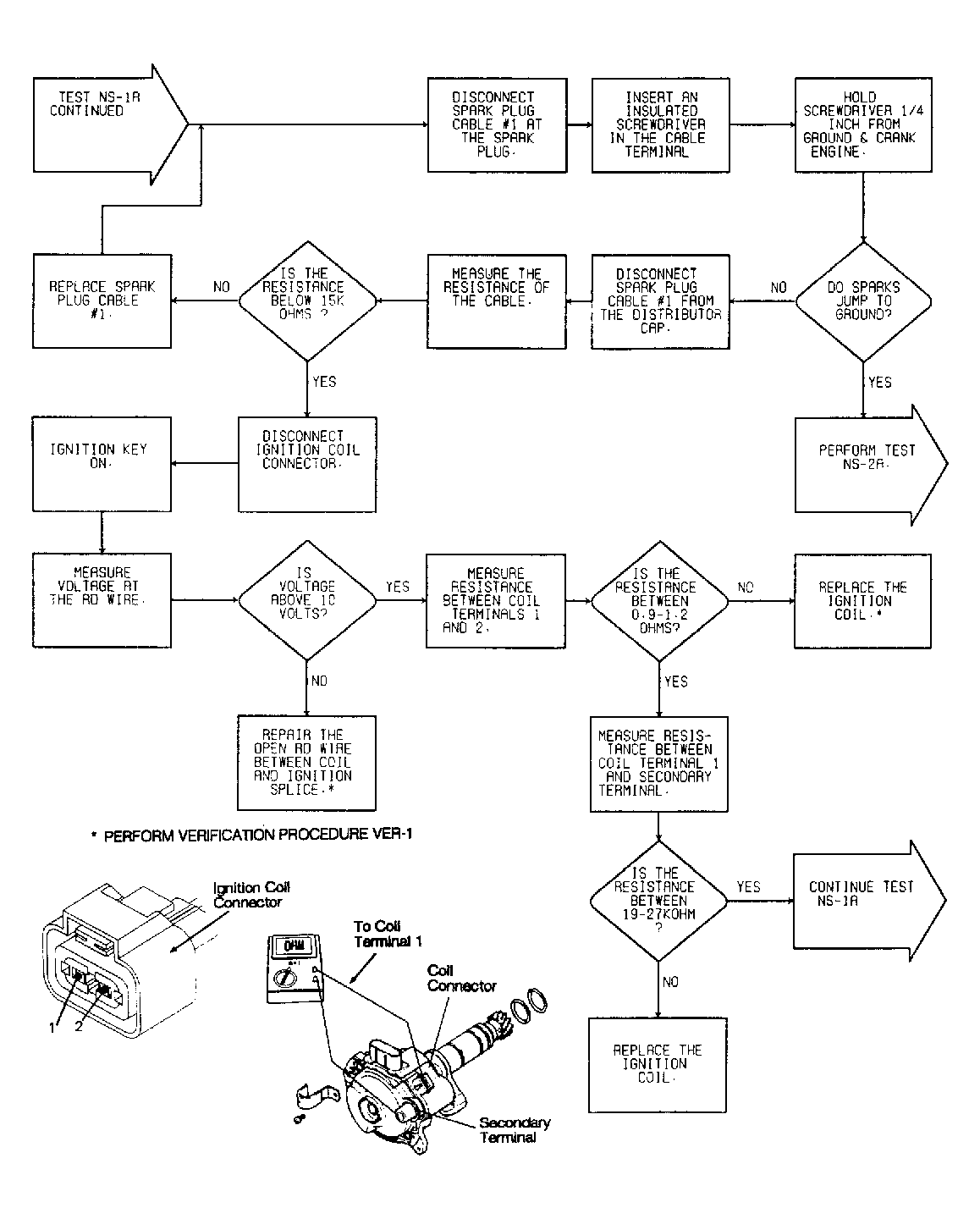

Fig 2: No Start Test NS-1A: Diagnostic Flow Chart (2 of 3)

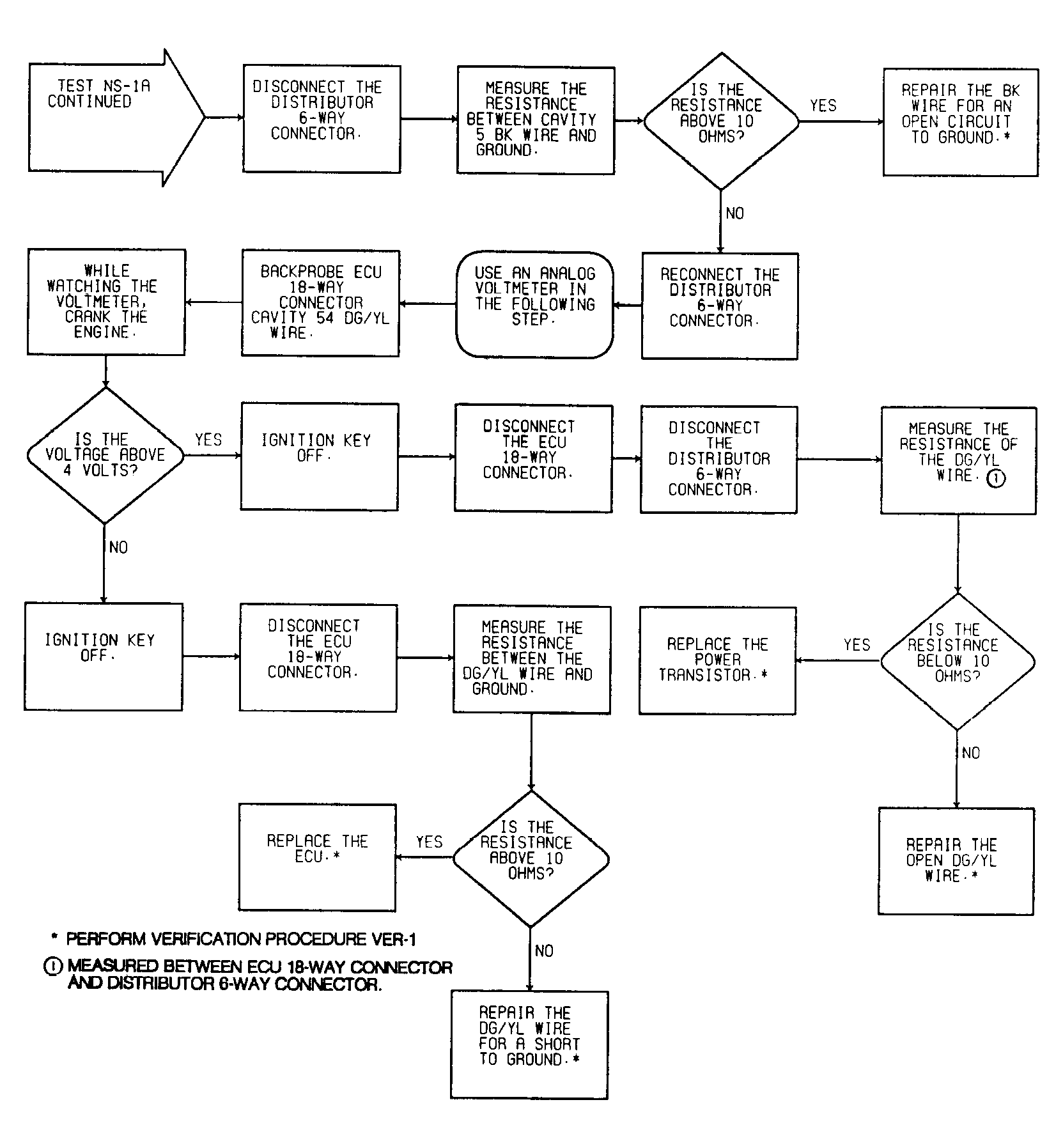

Fig 3: No Start Test NS-1A: Diagnostic Flow Chart (3 of 3)
