Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

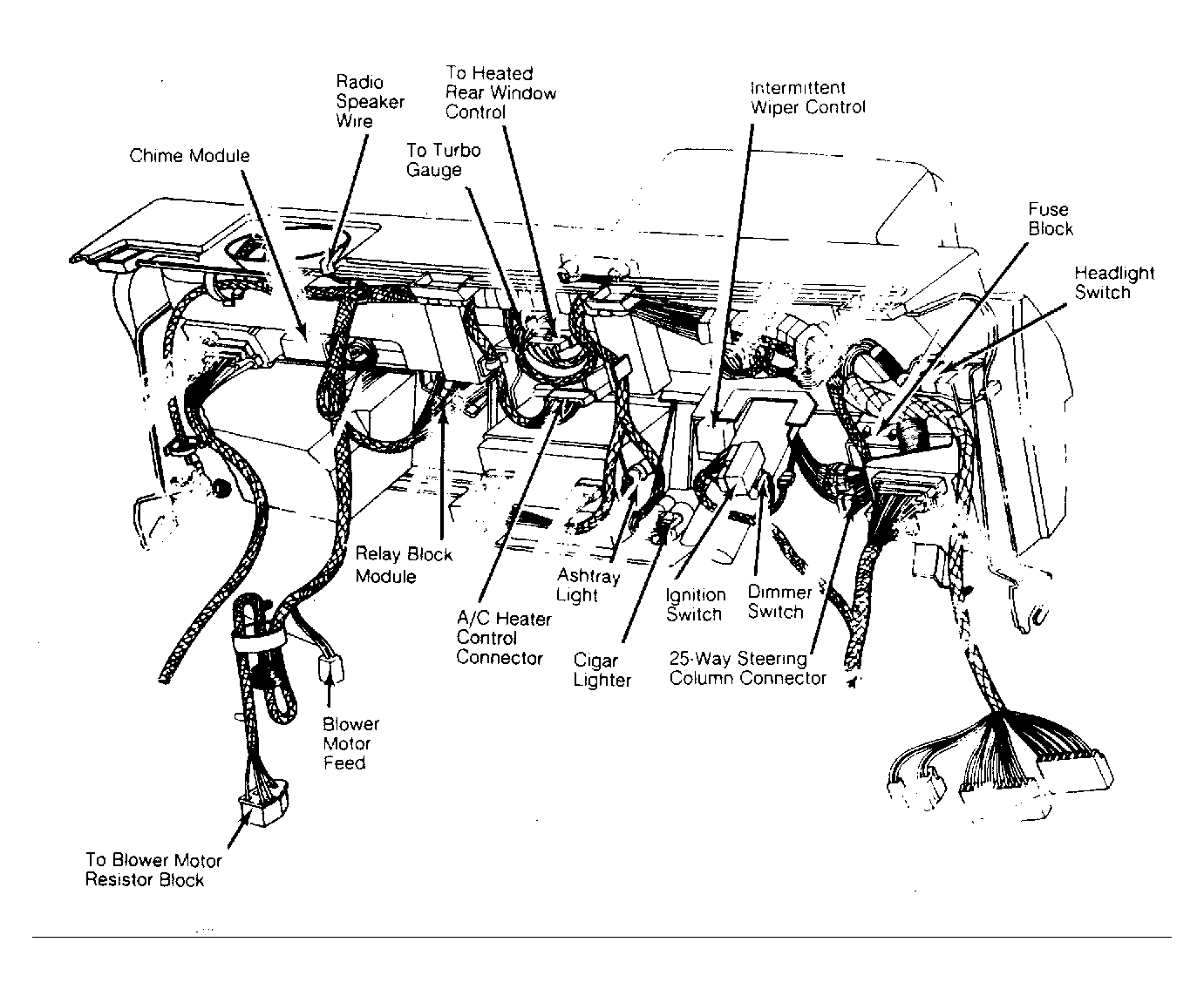

| Chime Module | Above center of glove box. See Figure . |
| Intermittent Wiper Control | Right of steering column, under dash. See Figure . |
| Key-In/Headlight On/Seat Belt Warning Module | Under dash, above glove box. |
| Relay Block Module | Left of glove box, under access cover. See Figure & Figure . |
| Single Module Engine Control (SMEC) | On left inner fender panel. See Figure . |
