Fuel Systems Adjustment Procedures/Specs Update (14-01-88)

Publication date: 1988-01-11
Reference number: 14-01-88

FUEL SYSTEMS ADJUSTMENT PROCEDURES/SPECS UPDATE

FUEL SYSTEMS ADJUSTMENT PROCEDURES/SPECS UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 14-01-88, Date of Issue:  January 11, 1988

SERVICE MANUAL REVISIONS

Model 1987-88 Dodge Colt, Conquest and Colt Vista

Group Fuel

Bulletin No. 14-01-88

Date January 11, 1988

ILLUSTRATIONS

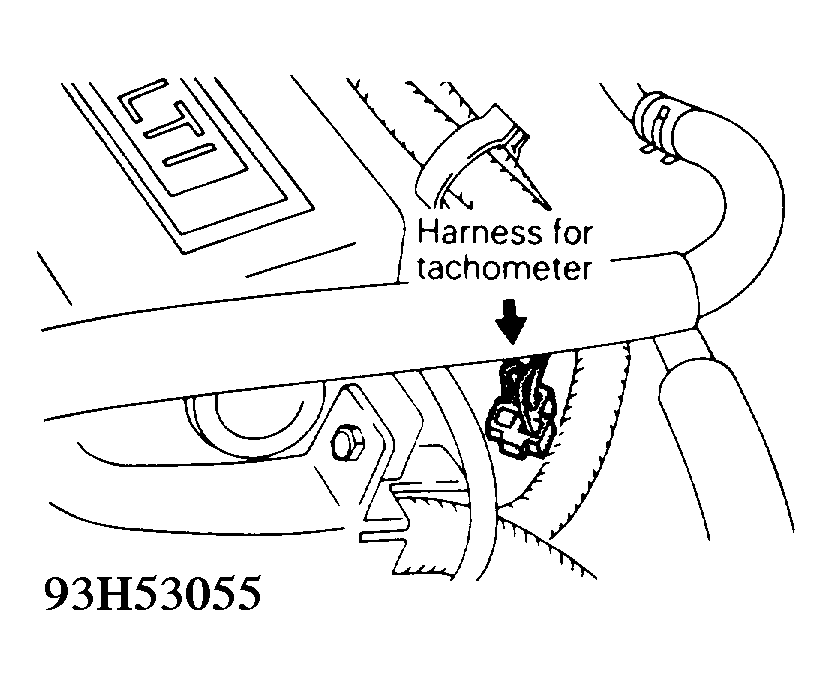

Fig 1: Location of Harness for Tachometer
G93H53055

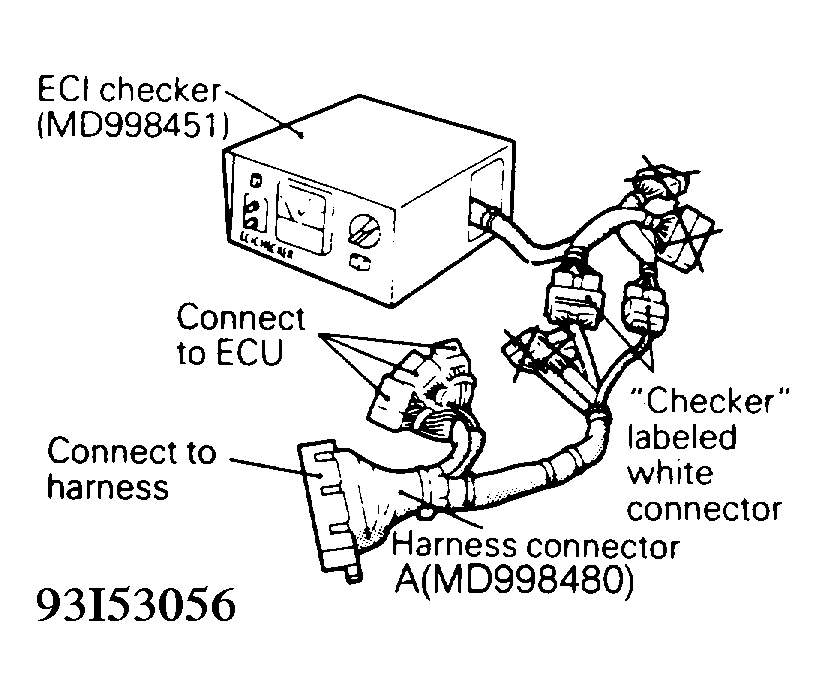

Fig 2: ECI Checker Connected to Harness Connector
G93I53056
Fig 3: Voltmeter Connected to Extension Terminals of ECI Checker
G93J53057

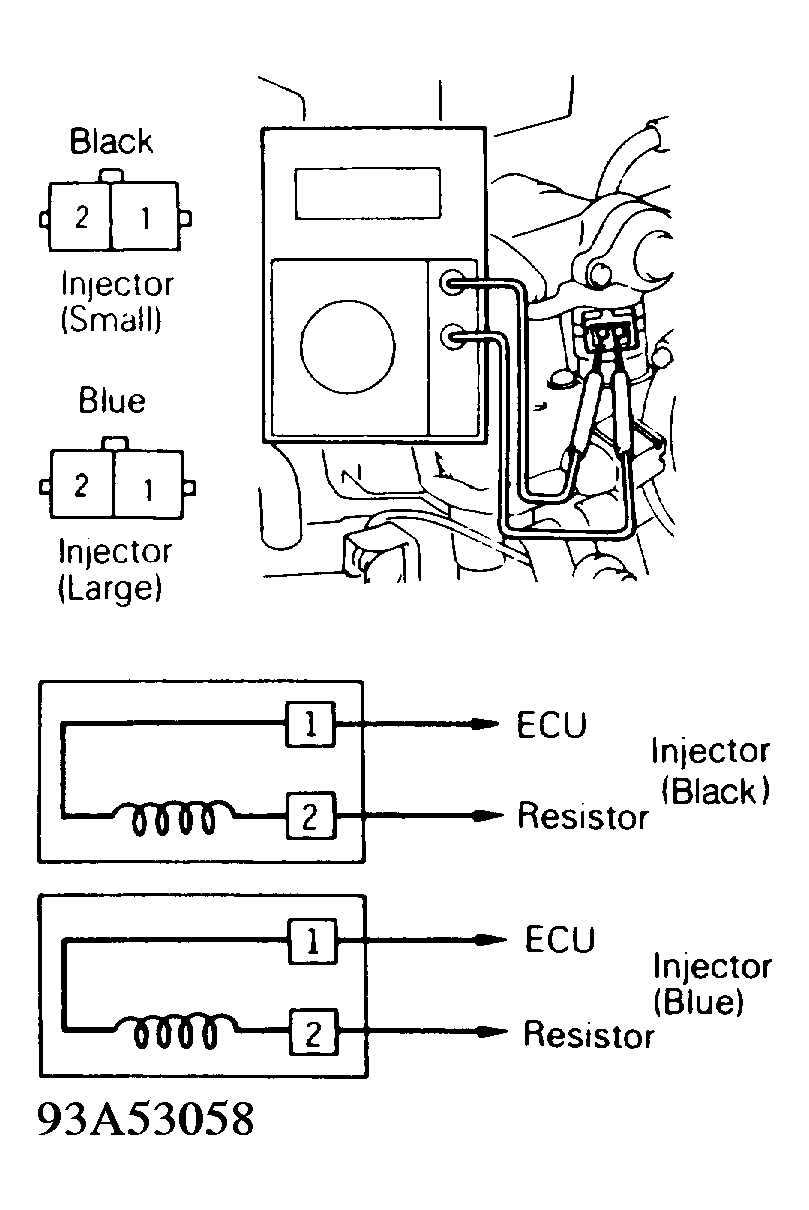

Fig 4: Measurement of Resistant Between Terminals
G93A53058

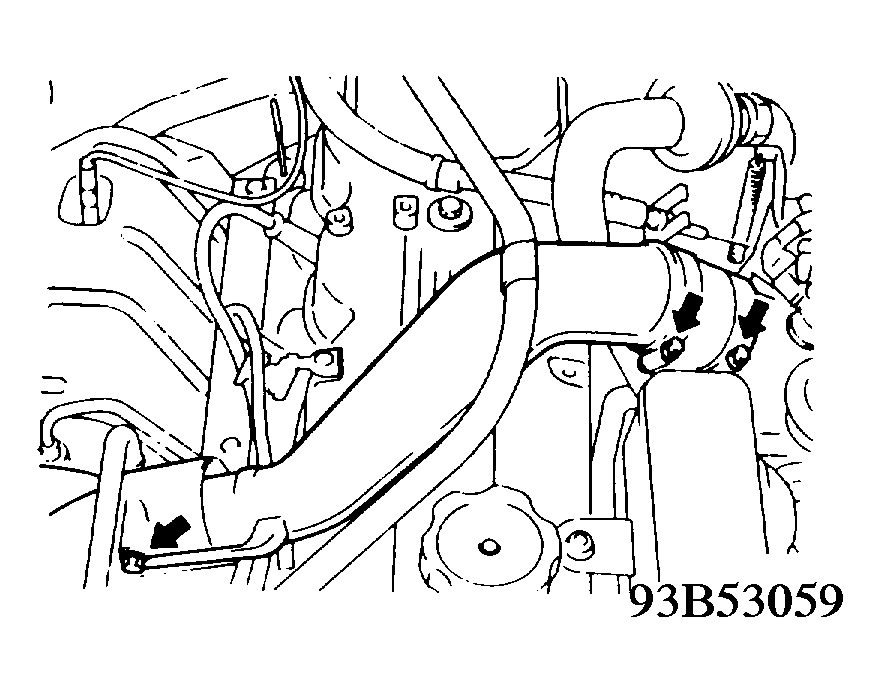

Fig 5: Removal of Air Intake Pipe
G93B53059

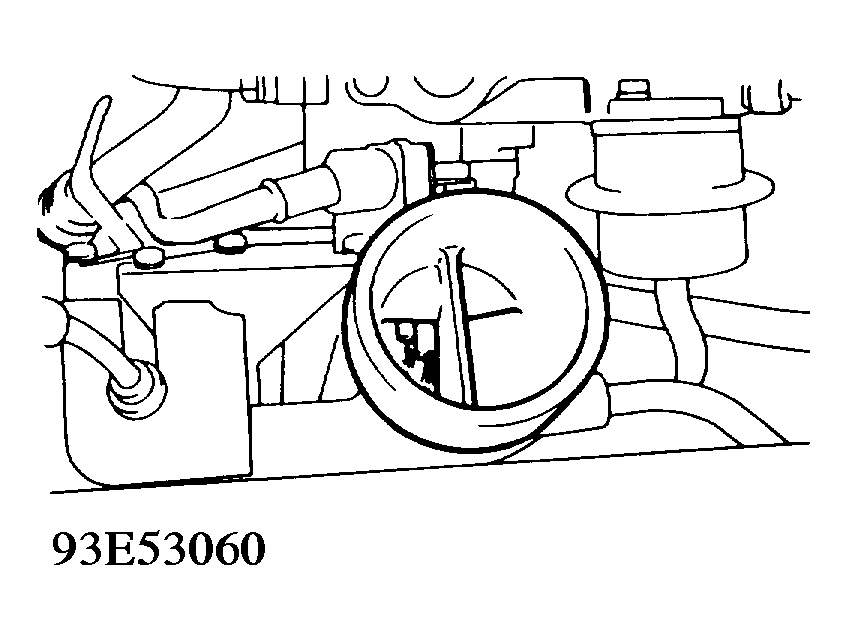

Fig 6: Inspection of Injector with Black Connector
G93E53060
Fig 7: Checking Injector Nozzle for Leaks
G93F53061
Fig 8: Checking Continuity of ISC Motor Connector
G93G53062
Fig 9: Checking Operation of ISC Servo
G93H53063

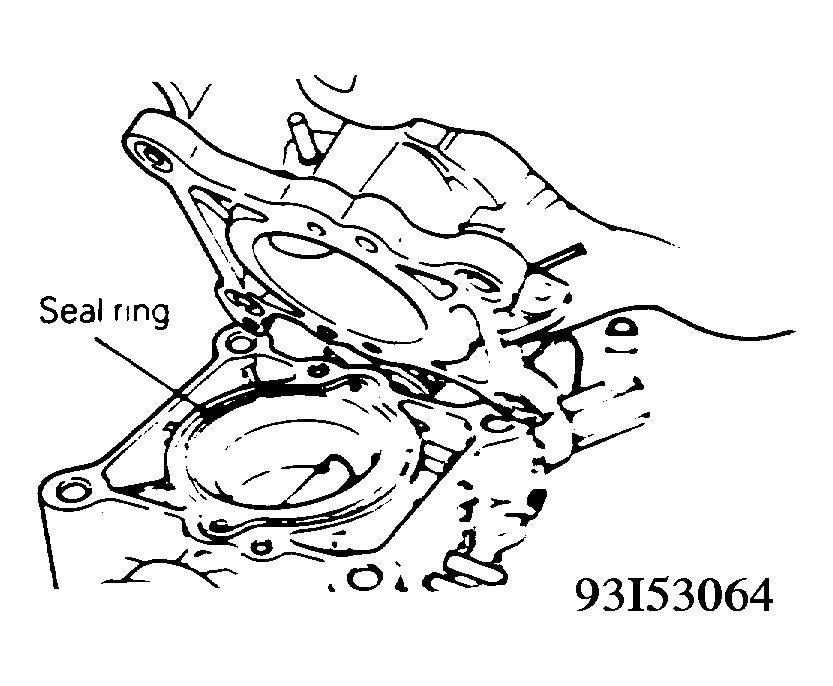

Fig 10: Checking Placement of Seal Ring
G93I53064

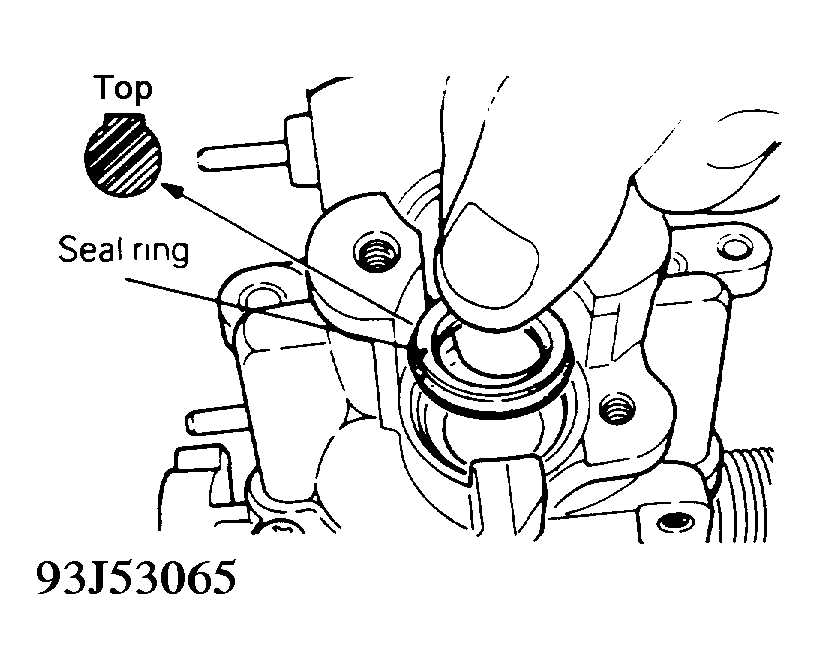

Fig 11: Installation of Seal Ring
G93J53065

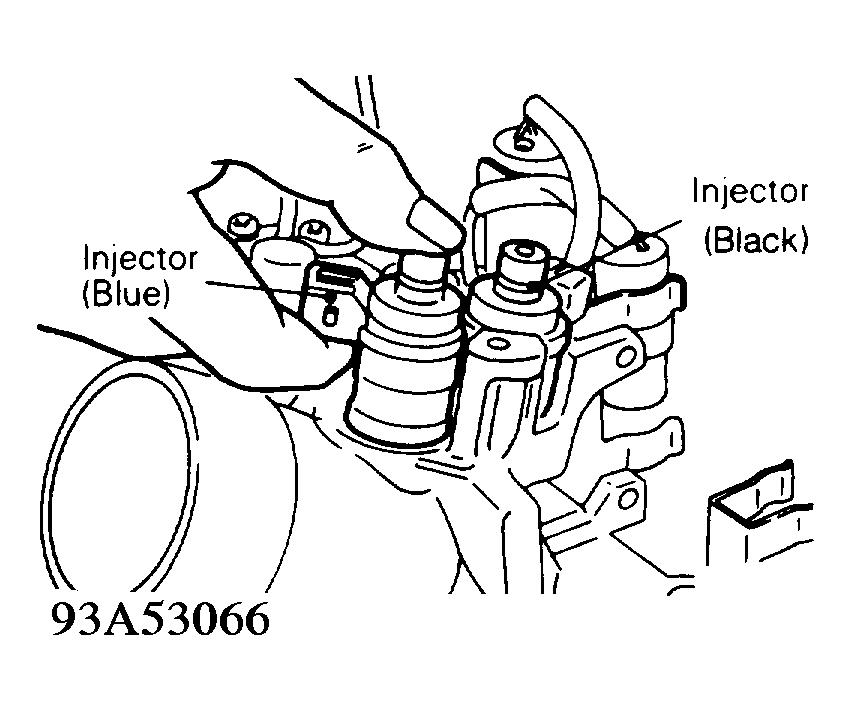

Fig 12: Installing Injectors
G93A53066
Fig 13: Installing Diaphragm
G93B53067
Fig 14: Installation of O-Ring on Fuel Pressure Regulator
G93C53068
Fig 15: Identification of Display Codes via Illumination Times
G93D53069

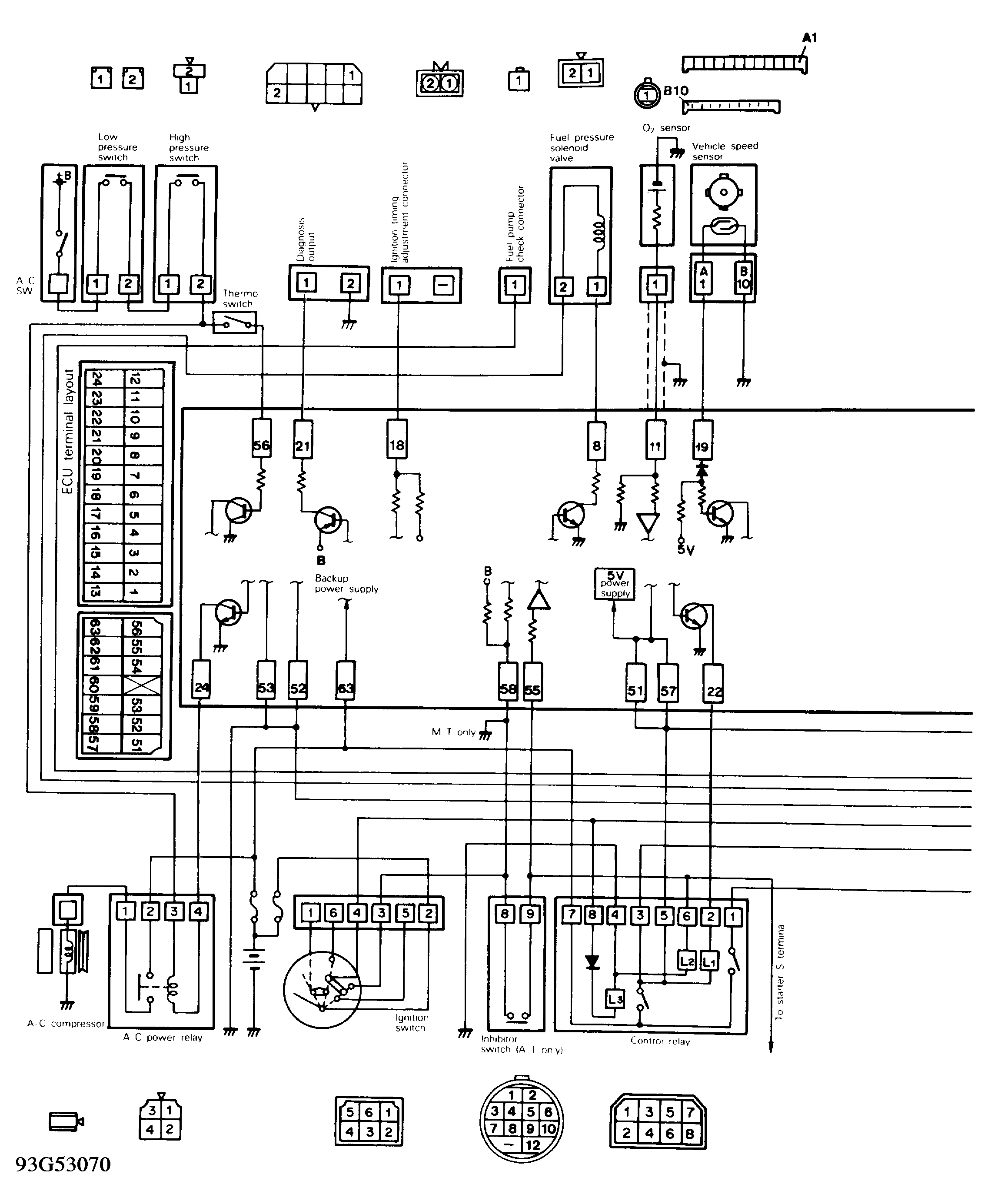

Fig 16: ECI-MULTI Electrical Wiring Diagram (1987 Colt Vista)
G93G53070

SERVICE INFORMATION

This bulletin has been used to update On-Demand database Fuel Systems articles for 1987-88 Dodge Conquest and Colt Vista and 1988 Dodge Colt.

1988 COLT LUBRICANT AND SEALANT SPECIFICATIONS

Items Specified lubricant Qty.
Engine coolant temperature sensor 3M NUT Locking No. 4171 or equivalent as req'd
Floor lid mounting surface MOPAR Rope Caulk Sealer 3/16 x 80" roll Part No. 4026044 or equivalent as req'd
Grease for accelerator arm pin and return spring MOPAR Multi-mileage Lubricant P/N 2525035 or equivalent as req'd
SPECIAL TOOLS FOR INSPECTING MPI SYSTEM

Tool Name Tool Number
ECI checker MD998480
Harness connector MD998451

FUEL (MPI) SYSTEM - Service Adjustment Procedures (1988 Colt)

  1. 2)
    Observing the following caution items, insert a paper clip to the connector (3-pin) of the harness for tachometer, and connect an rpm gauge. See Fig 1 .
    CAUTION: The connector contact should not be separated.

    The paper clip should be inserted along the terminal surface.

  2. 3)
    Turn ignition switch to "LOCK"

  3. 4)
    Disconnect the harness connectors from the ECU.

  4. 5)
    Set check switch of the ECI checker to OFF.

  5. 6)
    Set select switch of the ECI checker to A.

  6. 7)
    Connect white color connectors, with labeled "CHECKER" of the ECI HARNESS CONNECTOR F to the connectors of ECI checker and then connect ECI HARNESS CONNECTOR F to the ECU and the harness connectors. See Fig 2 .

  7. 8)
    Connect voltmeter to extension terminals of ECI checker and then change extension switch from CHECK METER down to EXTENSION position. See Fig 3 .
    CAUTION: Use an accurate digital voltmeter.

  8. 9)
    Set the select switch of ECI checker to "A" and check switch to 3" respectively.

  9. 10)
    Turn the ignition switch to ON (do not start the engine) and hold the switch in that position for 15 seconds or more to check that the ISC servo is set at the initial position (idle point).
    NOTE: When the ignition switch is turned to ON the ISC servo extends to the fast idle position opening and in 15 seconds, it retracts and stops at the initial position.

    Initial position: Position corresponding to idle opening, 0.9V motor position sensor output voltage.

  10. 11)
    Turn ignition switch to "LOCK".

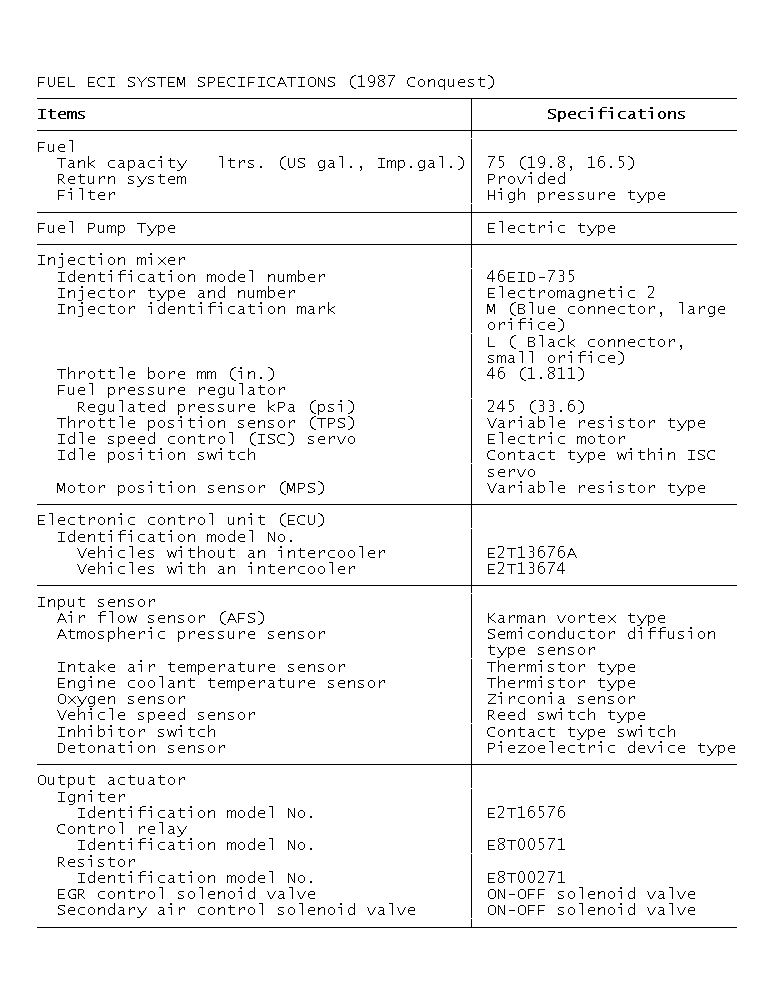

Fig 17: FUEL ECI SYSTEM SPECIFICATIONS (1987 Conquest)
GB0049615
Fig 18: FUEL (ECI) SYSTEM - INSPECTION OF ECI SYSTEM (1987-88 Conquest)
GB0049616

1987-88 Conquest

Measurement of Resistance between Terminals

(see Fig 4 )

  1. Disconnect the injector connector.
  2. Measure resistance between terminals. Standard value: 2 - 3 ohm [at 20°C (68°F)]
  3. Install the injector connector.

Inspection of Injection State

  1. 1)
    Remove the air intake pipe. See Fig 5 .

  2. 2)
    Disconnect the high tension cable from the ignition coil

Inspection of Injector with Black Connector

  1. 3)
    Observing through the air inlet of the injection mixer visually check injection state of the injector with black connector when the ignition switch is set to ST position. See Fig 6 . Judge the injector as normal unless the injection state is very poor.

  2. 4)
    Turn the ignition switch to OFF and check the injector nozzle for leaks.

Inspection of Injector with Blue Connector

  1. 5)
    Disconnect the injector harness of the blue connector.

  2. 6)
    Connect the harness connected to the injector having black connector to the injector having blue connector.
    CAUTION: Connect the harness with adequate slackness so that undue tension will not act on the harness when the engine is cranked.

  3. 7)
    Observing through the air inlet of the injection mixer, visually check injection state of the injector with blue connector when the ignition switch is set to ST position. Judge the injector as normal unless the injection state is very poor.

  4. 8)
    Turn the ignition switch to OFF and check the injector nozzle for leaks. See Fig 7 .

INSPECTION OF ISC MOTOR (DC MOTOR)

  1. Disconnect the ISC motor connector.
  2. Check continuity of the ISC motor coil. See Fig 8 .
    ISC MOTOR COIL CONTINUITY

    Measuring Terminals Continuity
    (1) - (4) Conductive [5 tO 11 ohm resistance at 20°C (68°F)]
  3. Connect 6V DC (four dry cells) between terminals (1) and (4) of the ISC motor connector and check that ISC servo operates. See Fig. 9.
  4. If not, replace ISC servo as an assembly.

FUEL (ECI) SYSTEM - Injection Mixer

SERVICE POINTS OF RE-ASSEMBLY

25. INSTALLATION OF SEAL RING

Make sure that the seal ring does not protrude from the groove. See Fig 10 .

16. INSTALLATION OF SEAL RING

Install a new seal ring in the mixing body. When fitting the seal ring, make sure that its flat side faces up. See Fig 11 .

13.12. INSTALLATION OF INJECTORS

(see Fig 12 )

  1. Fit a new O-ring and collar to the injector.
  2. Set the injector on the mixing body at correct position and push down firmly with a finger until it is seated.
IDENTIFICATION OF INJECTORS

Connector Color Position Orifice
Blue Right Large
Black Left Small

10. INSTALLATION OF DIAPHRAGM

Install the diaphragm in the injector holder in correct direction as shown in Fig. Fig 13 .

6. INSTALLATION OF FUEL PRESSURE REGULATOR

Fit a new O-ring to the regulator. See Fig 14 .

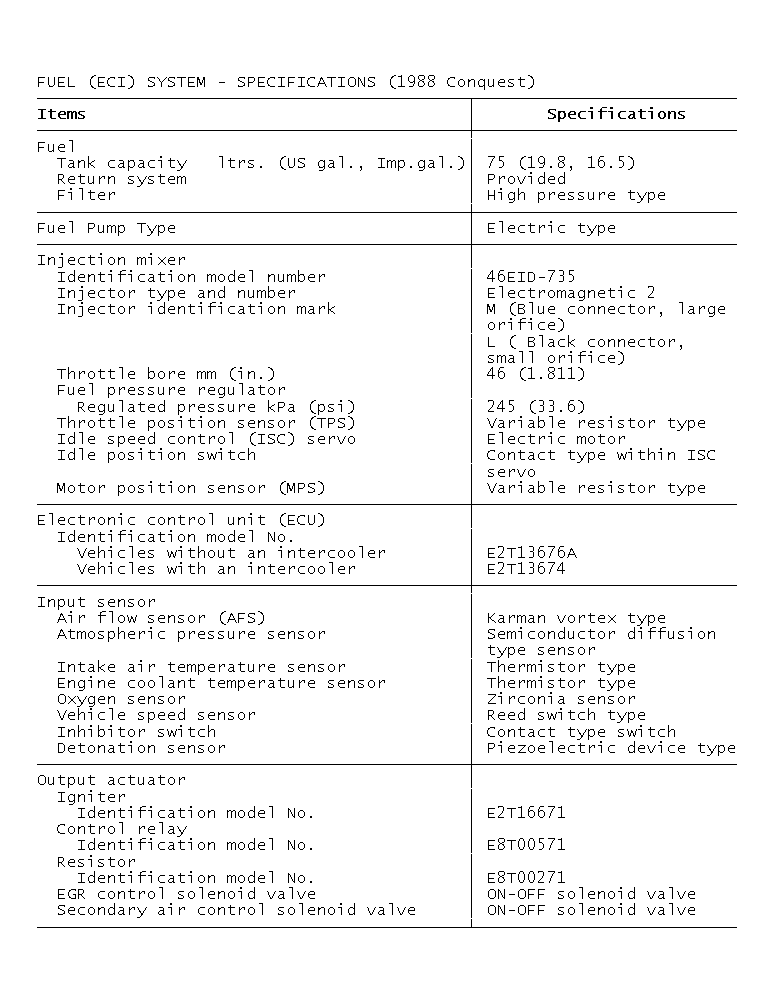

Fig 19: FUEL (ECI) SYSTEM - SPECIFICATIONS (1988 Conquest)
GB0049617

If abnormal:

After a three-second steady illumination the illumination repeats at two-second cycles. An illumination time of 1.5 seconds is "1" and an illumination time of 0.5 second is "0", the malfunction code is thus indicated by the combination of five "1" and "0" signals. See Fig 15 .

Fig 20: DISPLAY CODE TABLE (1987-88 Colt Vista)
GB0049618
