Transmission Throttle Control

  1. Ensure that carburetor throttle lever is at "CURB IDLE" position, engine is at operating temperature, and fast idle condition has been reset. Raise cover "B" and loosen cable bracket mounting bolt.
  2. Move lower cable bracket until distance between nipple and top cover "A" of throttle cable is adjusted to .02-.06" (.5-1.5 mm). See Fig 1. Tighten lower cable bracket mounting bolt.
  3. With throttle lever in "WIDE OPEN" position, pull cable upward to ensure freedom of cable movement.

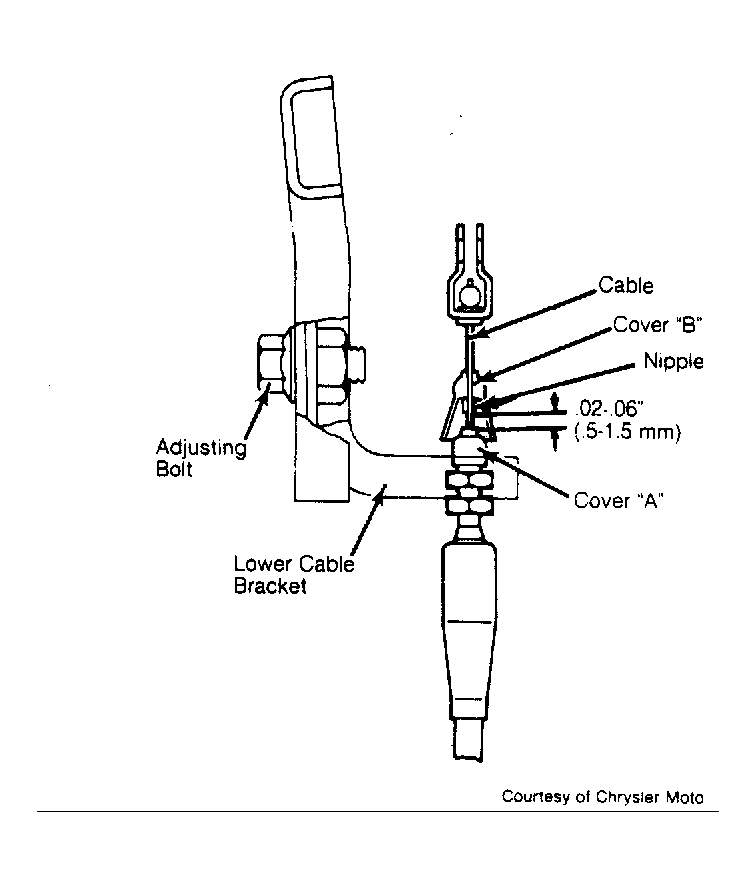

Fig 1: Mitsubishi KM170 Throttle Cable Adjustment
G82785
