Removal & Installation

Disconnect battery cable and electrical lead at sensor. Remove sensor. To install, coat threads of new sensor with nickel-based anti-seize compound. Do not use graphite or other compounds. Start sensor by hand, then tighten to 35 ft. lbs. Connect electrical connector and battery cable.

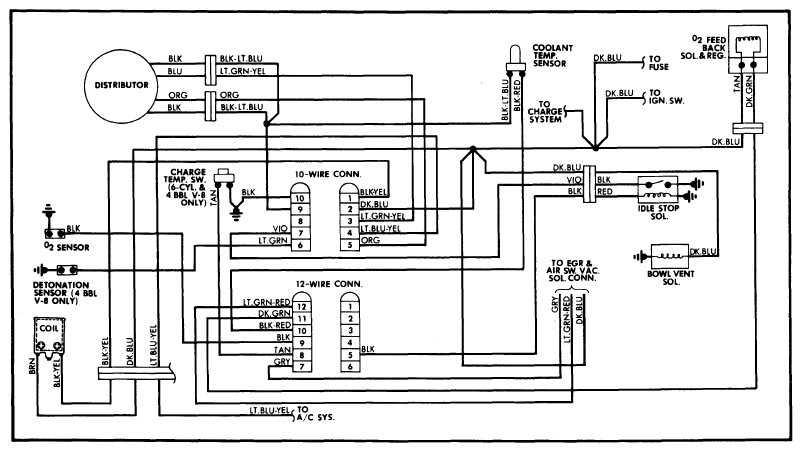

Fig 1: Wiring Diagram for 3.7L and 5.2L EFC System
G09339928Courtesy of CHRYSLER GROUP, LLC
