Fluid Pressure Testing

  1. Remove pressure hose from oil pump and attach adapter for special pressure gauge (C3309E). Start engine and place thermometer in reservoir until fluid temperature reaches 122°F (50°C). Bleed system if necessary.
  2. Start engine and let idle. Close and then fully open the shut-off valve of the pressure gauge and read fluid pressure. Valve closed pressure for the "A" type of pump should be 1066-1210 psi (75-85 kg/cm2 ) and 925-1066 psi (65-75 kg/cm2 ) for "B" and "C" type of pumps. Valve open pressure should be 142 psi (10 kg/cm2 ) for all pumps.

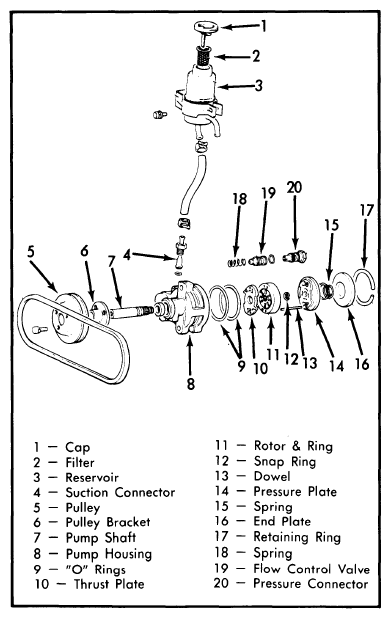

    Fig 1: Exploded View of Power Steering Pump (Type "A")
    G09356743Courtesy of CHRYSLER GROUP, LLC

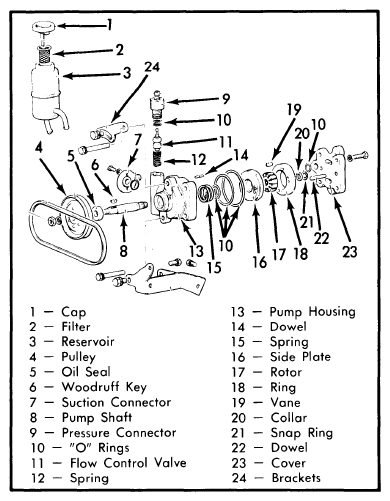

    Fig 2: Exploded View of Power Steering Pump (Type "B")
    G09356744Courtesy of CHRYSLER GROUP, LLC

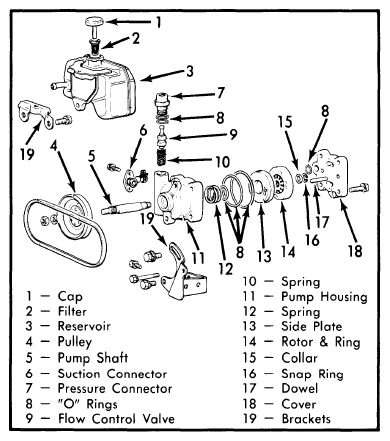

    Fig 3: Exploded View of Power Steering Pump (Type "C")
    G09356745Courtesy of CHRYSLER GROUP, LLC
  3. Reinstall pressure hose, taking care not to twist it or make it interfere with adjacent parts.
    CAUTION: Do not keep shut-off valve closed more than three seconds at a time. Do not keep steering wheel fully turned more than 10 seconds at a time.
