Check Valves

Located in vacuum harness near top of evaporator assembly. These valves are referred to as No. 1 and No. 2, with No. 1 being closest to dash panel grommet.

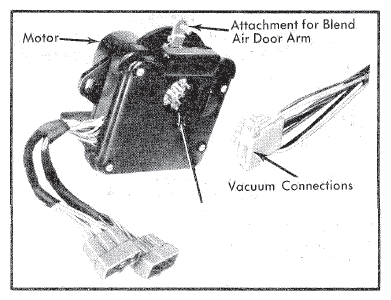

Fig 1: Servo Assembly
G09315143Courtesy of CHRYSLER GROUP, LLC
