Cruise Control Schematics

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

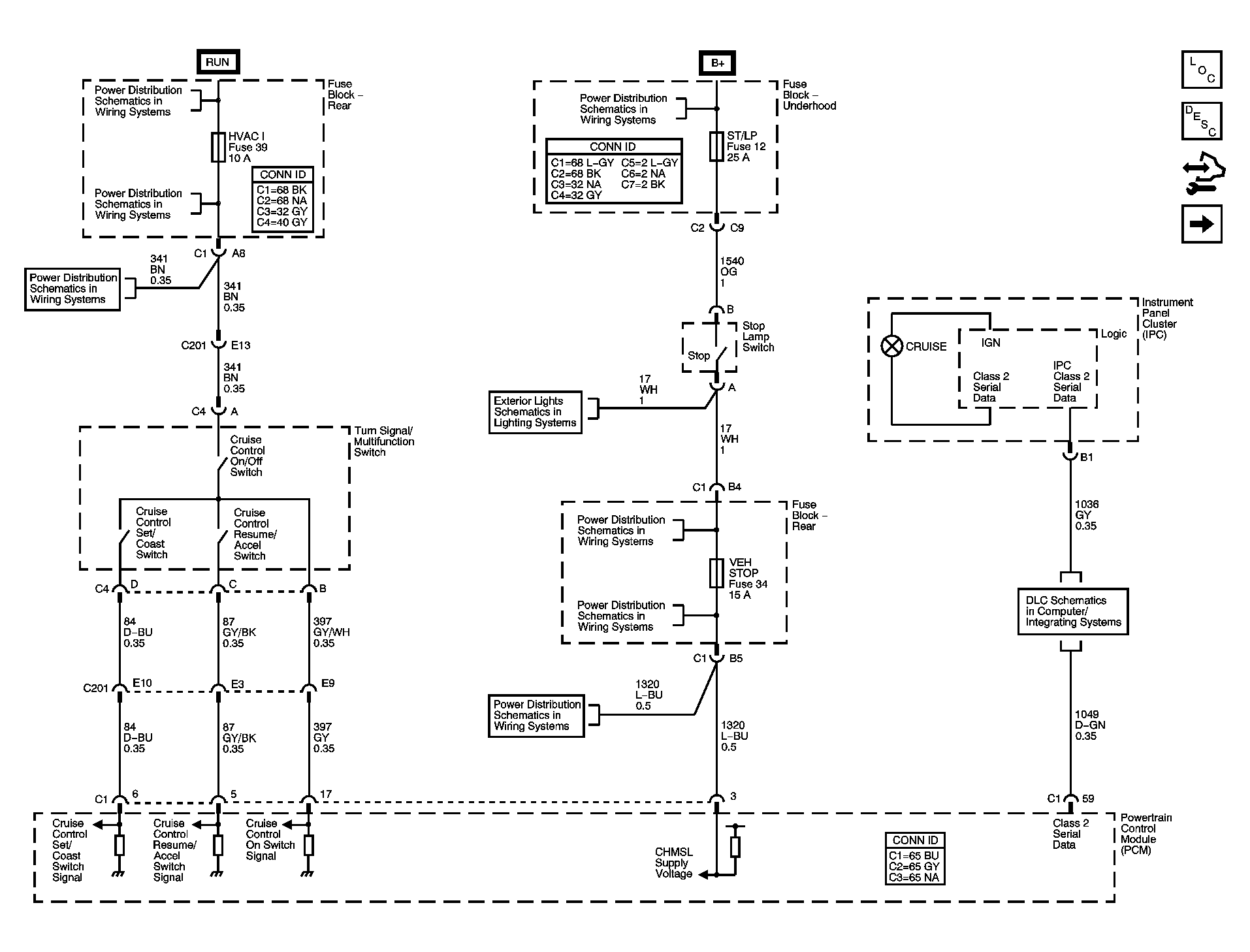

Fig 1: Cruise Control - 4.2L Schematics
GM1412990Courtesy of GENERAL MOTORS CORP.

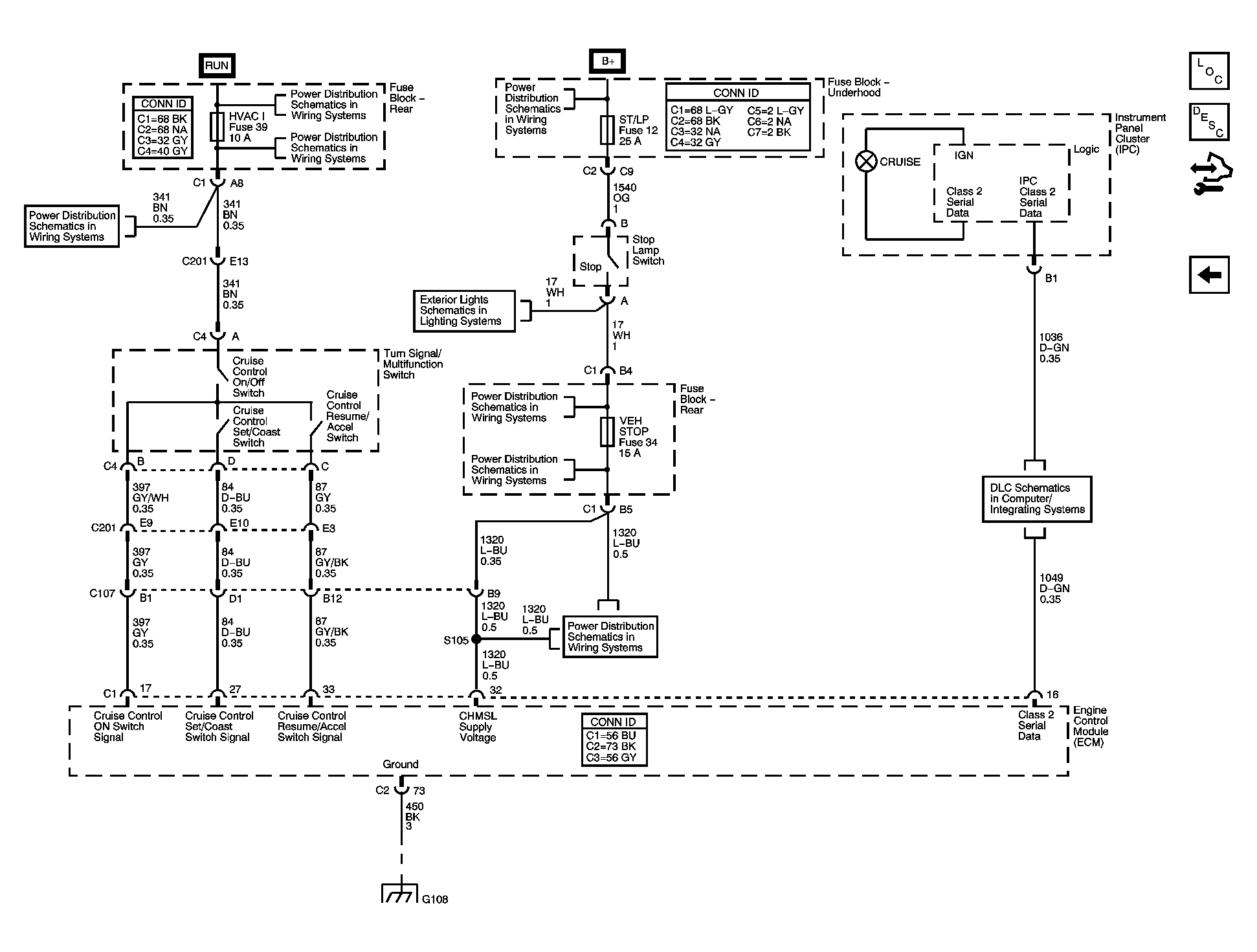

Fig 2: Cruise Control - 5.3L Schematics
GM1412992Courtesy of GENERAL MOTORS CORP.
