Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper/washer switch (2) to the steering column. Secure the switch until the tab (1) locks.
  2. Connect the wiper/washer switch electrical connector.

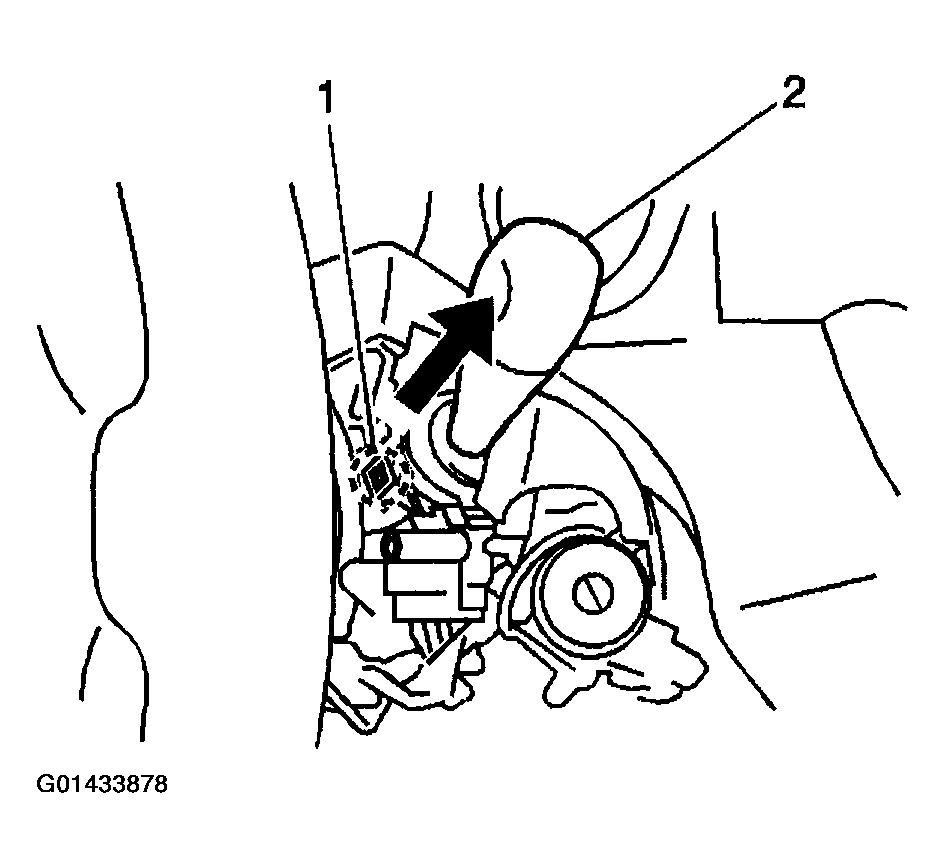

    Fig 1: Installing Wiper/Washer Switch To Steering Column
    G01433878Courtesy of GENERAL MOTORS CORP.
  3. Install the steering column upper trim cover (7) to the vehicle.
  4. Install the steering column lower trim cover (6) to the vehicle. Secure the trim cover with the 3 screws.
  5. Enable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

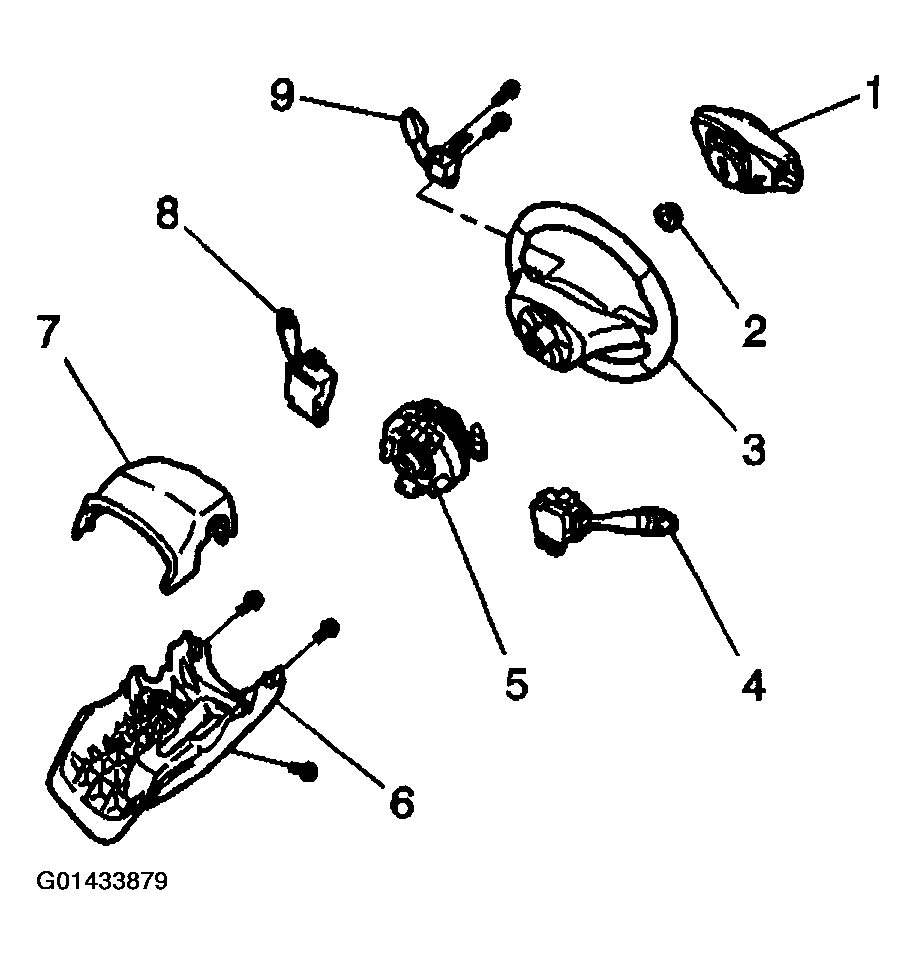

    Fig 2: Installing Wiper Washer Switch Components To Steering Column
    G01433879Courtesy of GENERAL MOTORS CORP.
