Headlights/Daytime Running Lights (DRL) Schematics (DRL Control Module, Ambient Light Sensor)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

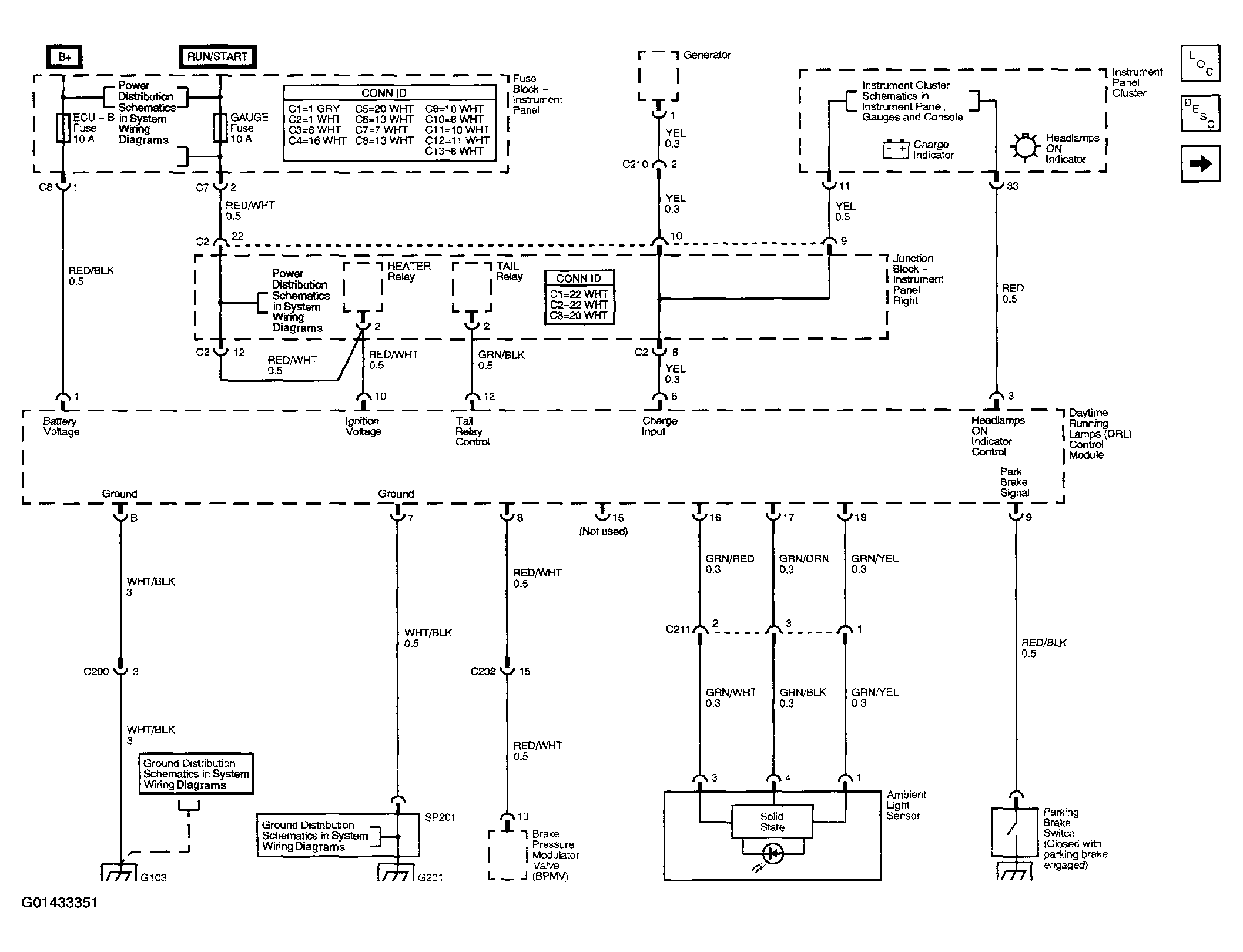

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics (DRL Control Module, Ambient Light Sensor)
G01433351Courtesy of GENERAL MOTORS CORP.
