Installation Procedure

  1. Install a new O-ring on the camshaft position actuator solenoid.
  2. Lubricate the hole (1) with engine oil.

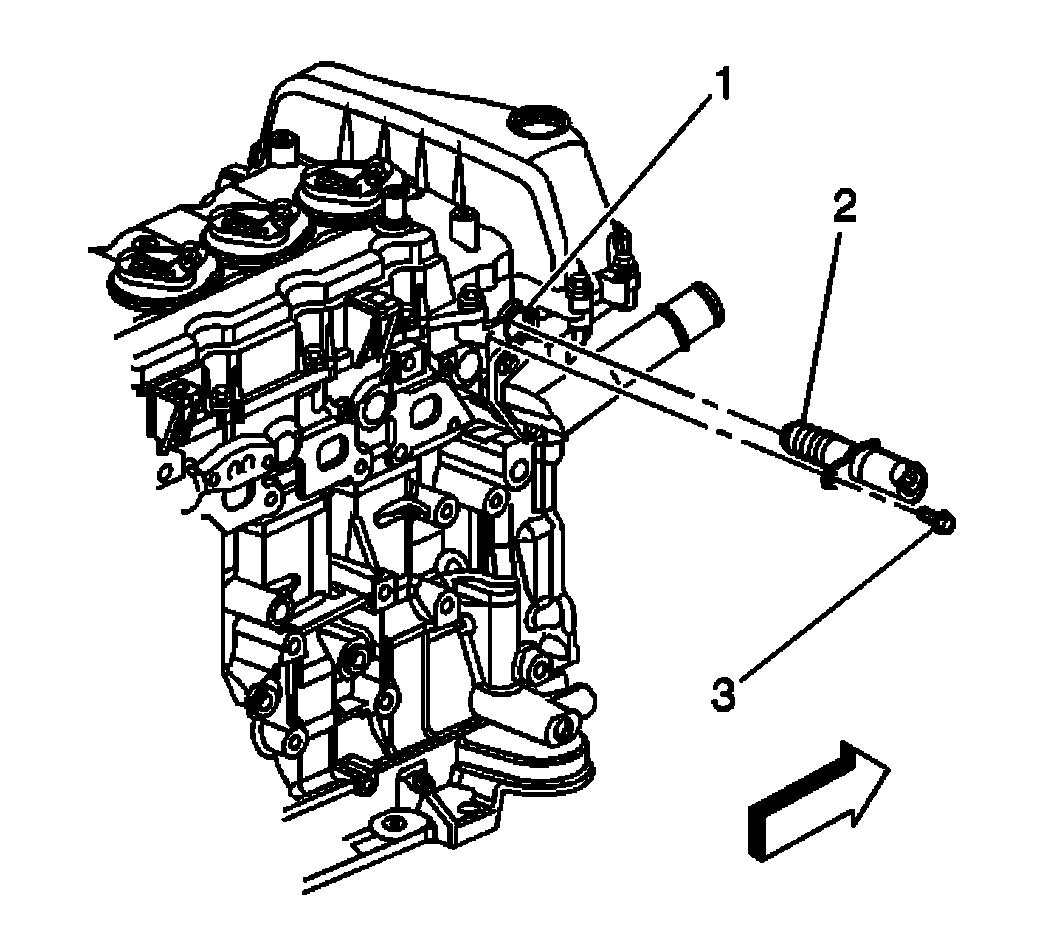

    3. Fig 1: View Of CMP Actuator Solenoid Valve
    GM744600Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the camshaft position actuator solenoid (2) and bolt (3).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  4. Connect the camshaft position actuator solenoid electrical connector.
  5. Install the power steering pump and bolts. Refer to Power Steering Pump Replacement (5.3L) or Power Steering Pump Replacement (4.2L) in Power Steering Systems.
  6. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical.
