Door Lock/Indicator Schematics

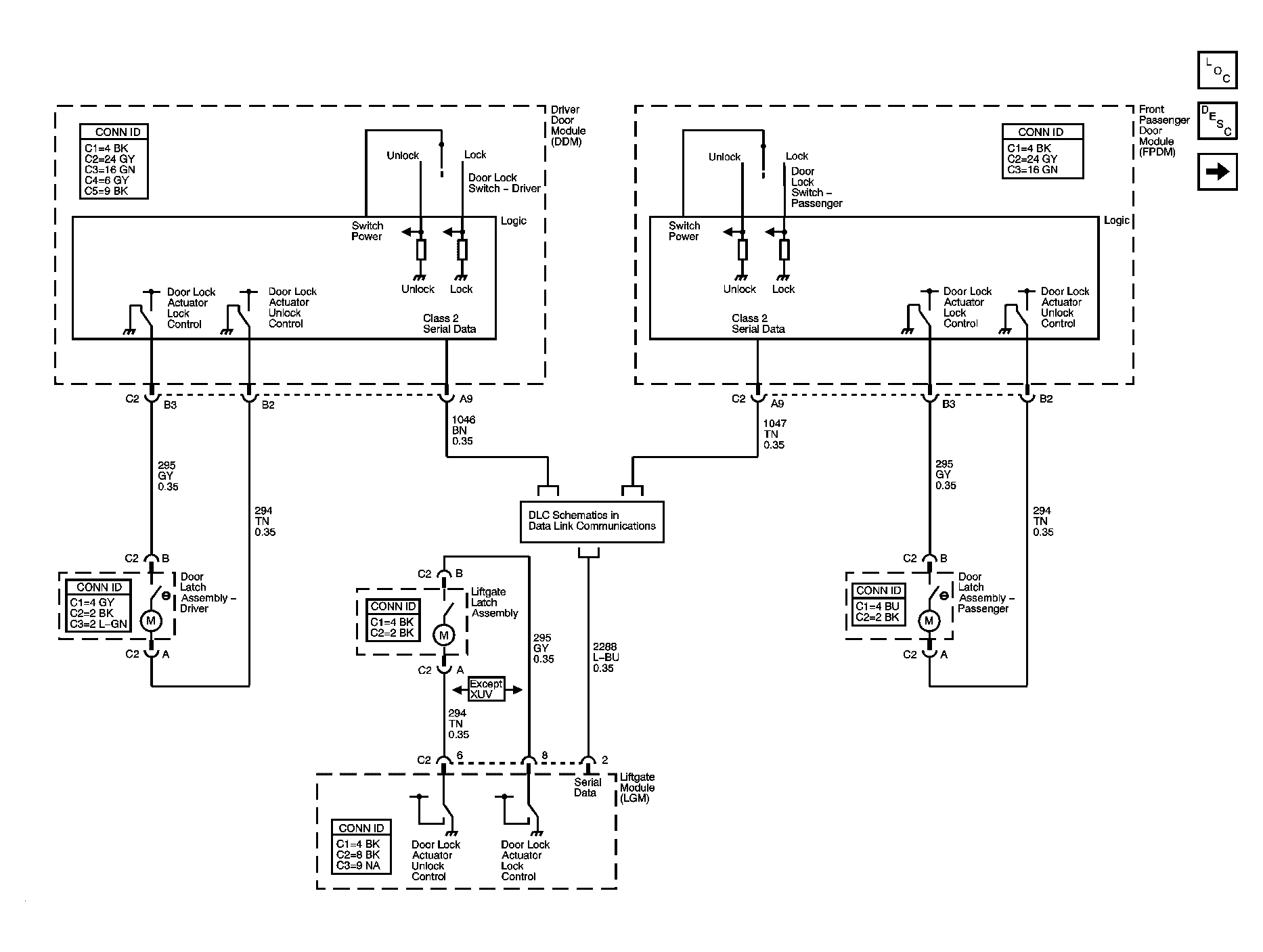

Fig 1: Front Doors and Liftgate Schematic

GM1269876

Courtesy of GENERAL MOTORS CORP.

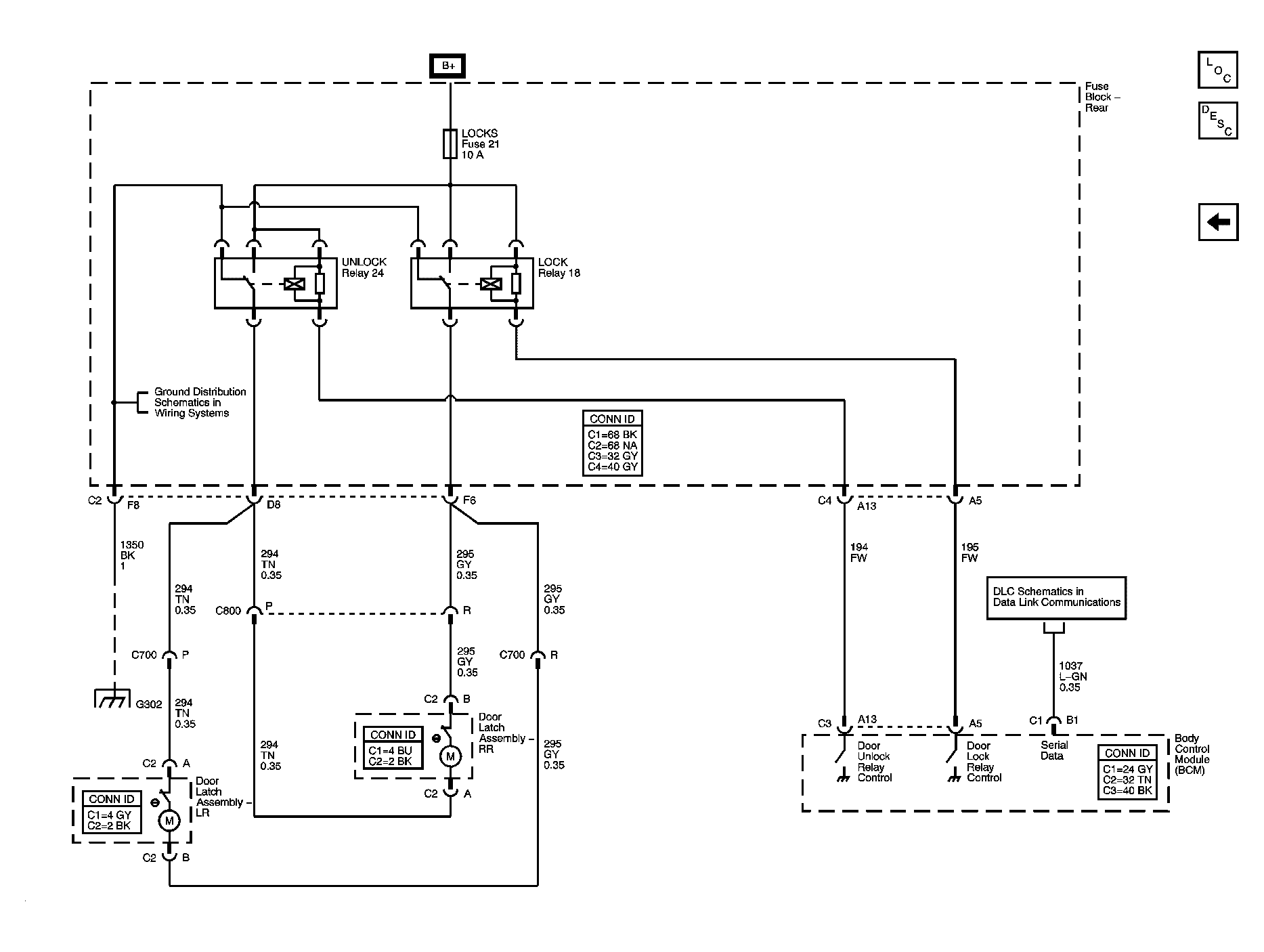

Fig 2: Rear Doors Schematic

GM1269877

Courtesy of GENERAL MOTORS CORP.
