Installation Procedure

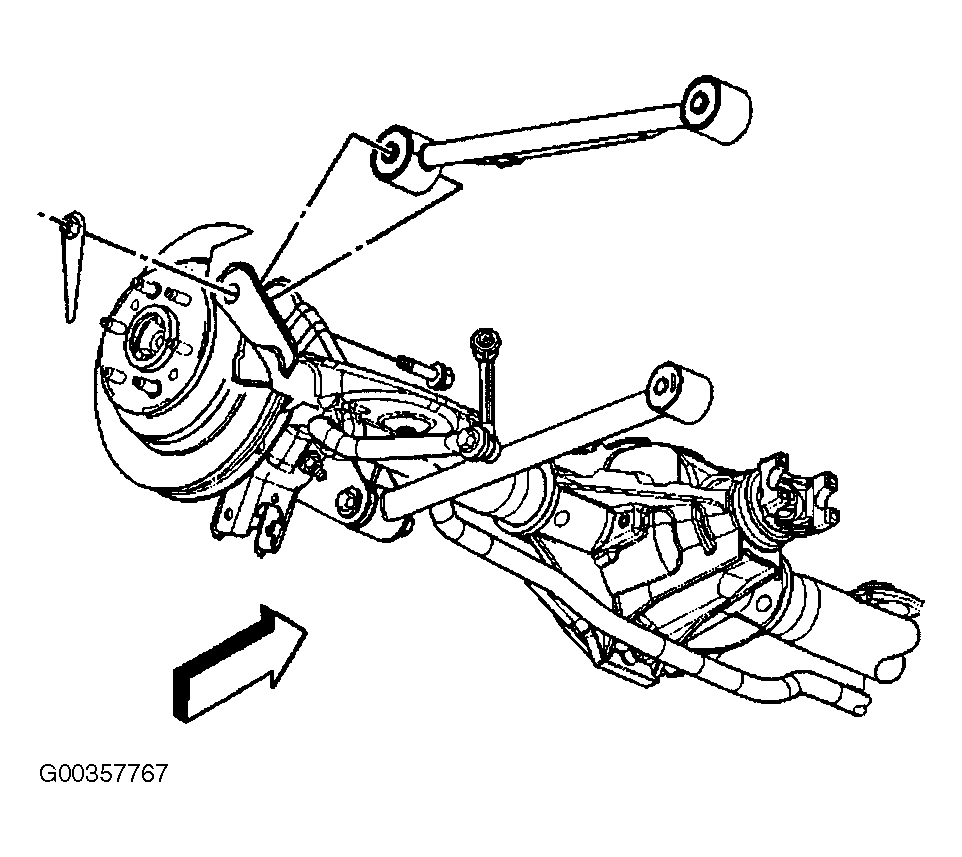

- Install the rear axle upper control arm. See Figure.
- Install the rear axle upper control arm to frame mounting bolt. See Figure.
- Install the rear axle upper control arm to axle mounting nut and bolt. Tighten the rear axle upper control arm mounting bolts to 131 N.m (97 lb ft).

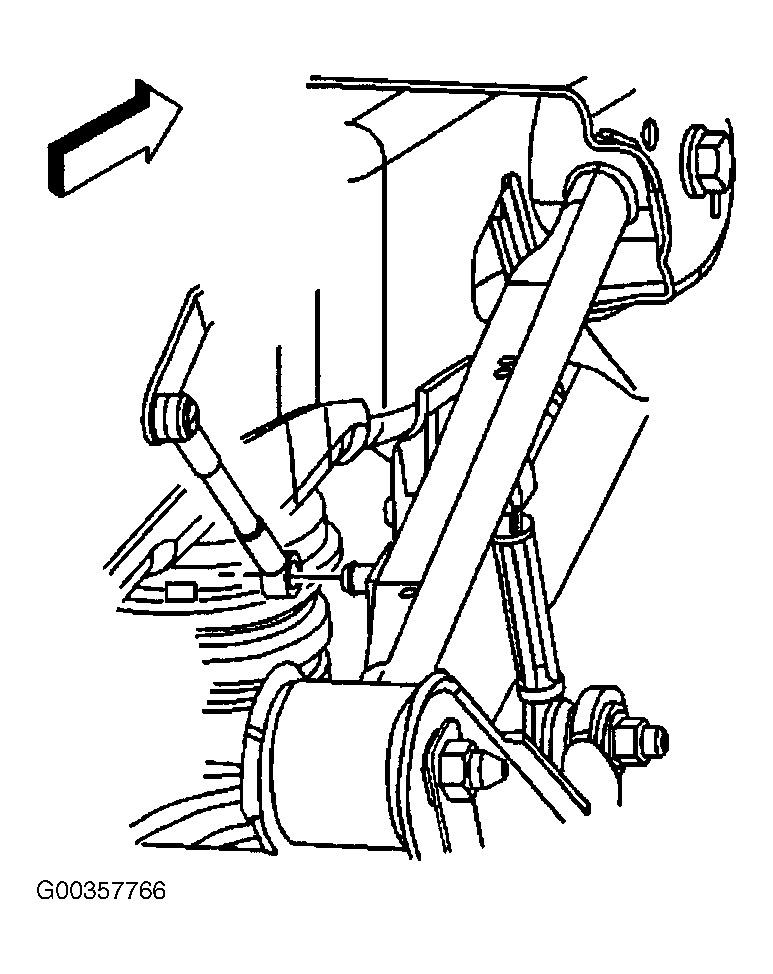

- If equipped with air suspension, connect the air suspension leveling sensor link to the rear axle upper control arm. See Figure.
- Remove the rear axle support.
- Install the wheelhouse panel.
- Install the tire and wheel.
- Lower the vehicle.
NOTE:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
