Installation Procedure

  1. Install the power steering cooler to the radiator support.

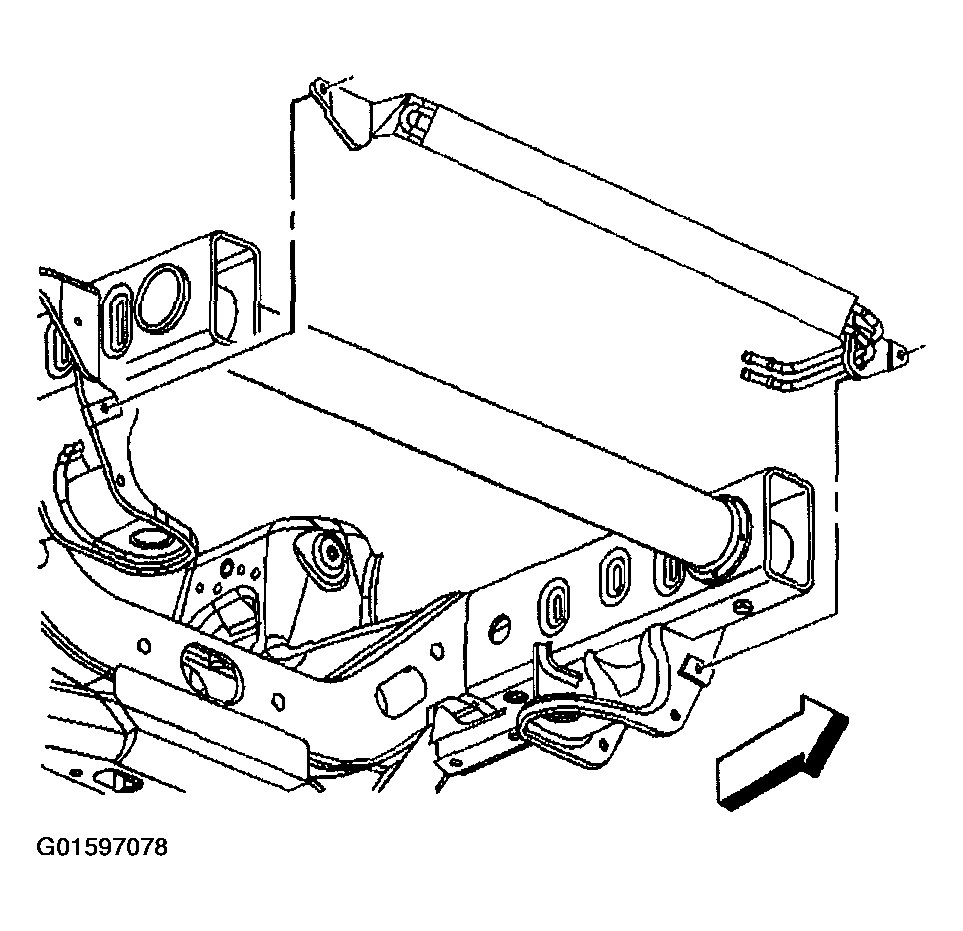

    Fig 1: Installing Power Steering Cooler To Radiator Support (4.2L)
    G01597078Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the power steering cooler mounting bolts.

    Tighten

    Tighten the power steering cooler mounting bolts to 20 N.m (15 lb ft).

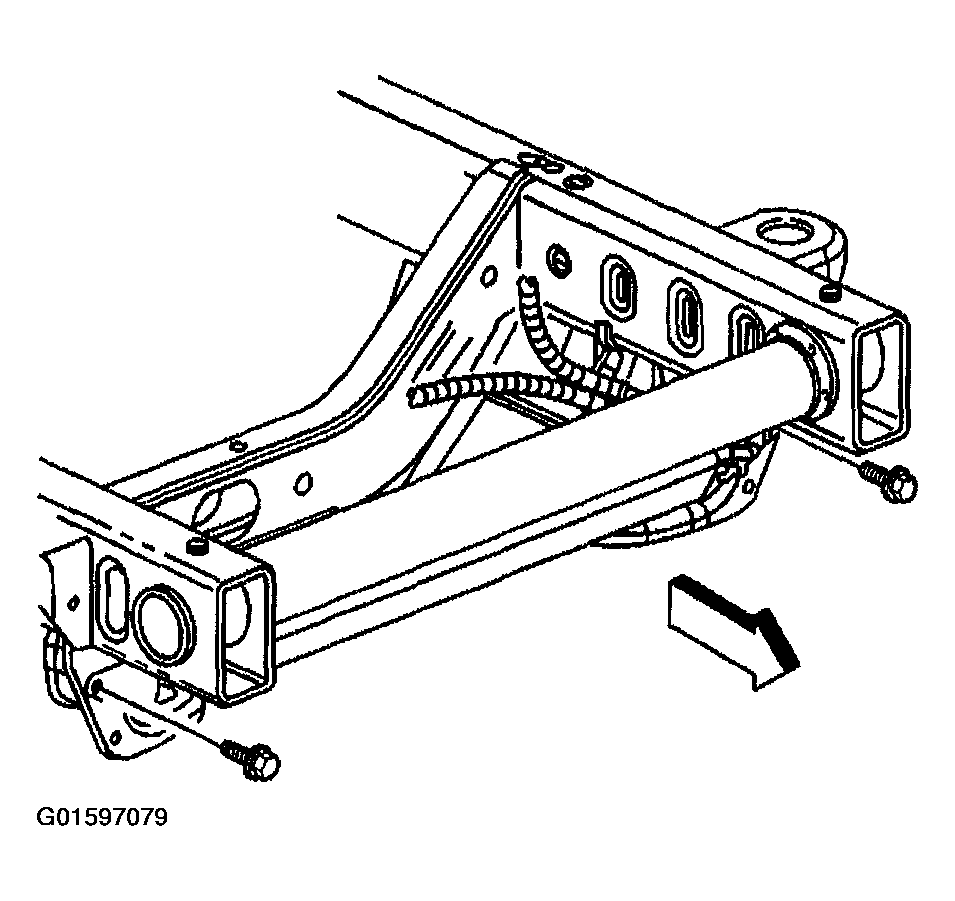

    Fig 2: Installing Power Steering Cooler Mounting Bolts (4.2L)
    G01597079Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering hoses assembly to the power steering cooler.
  4. Remove drain pan from under the vehicle.
  5. Install the radiator air intake baffle. Refer to AIR INTAKE BAFFLE REPLACEMENT - RADIATOR  in Body Front End.

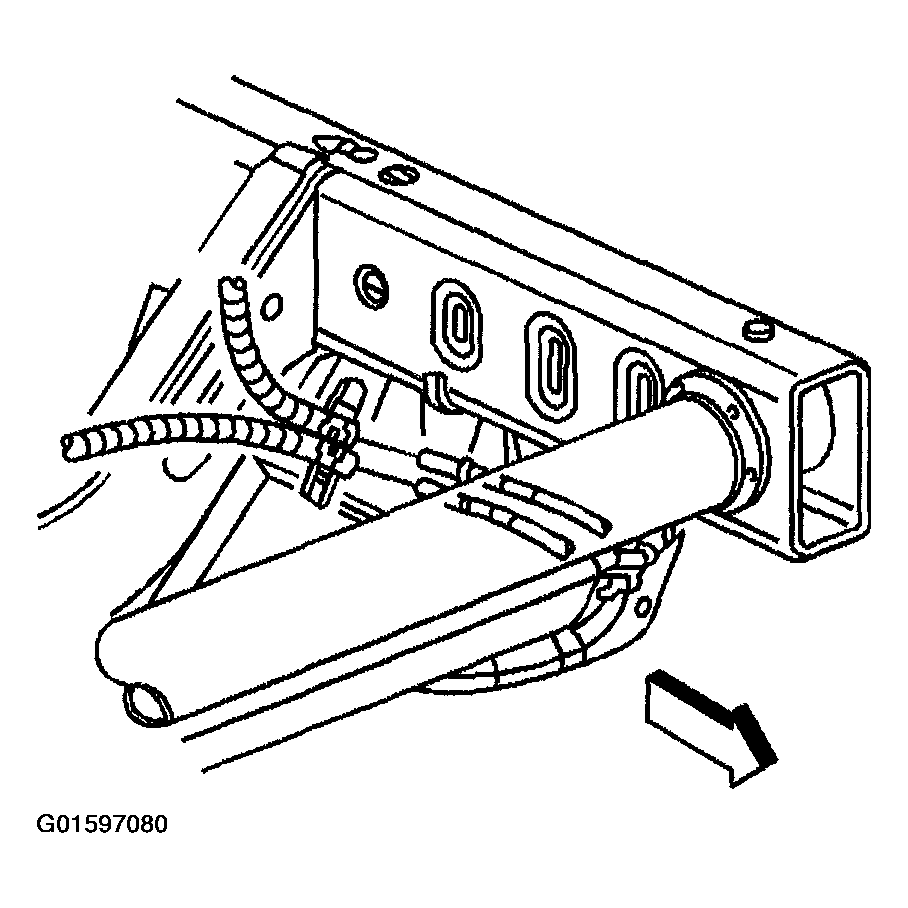

    Fig 3: Connecting Power Steering Hose Assembly To Power Steering Cooler (4.2L)
    G01597080Courtesy of GENERAL MOTORS CORP.
