Seat Horizontal Motor Connector End View - Driver/Passenger

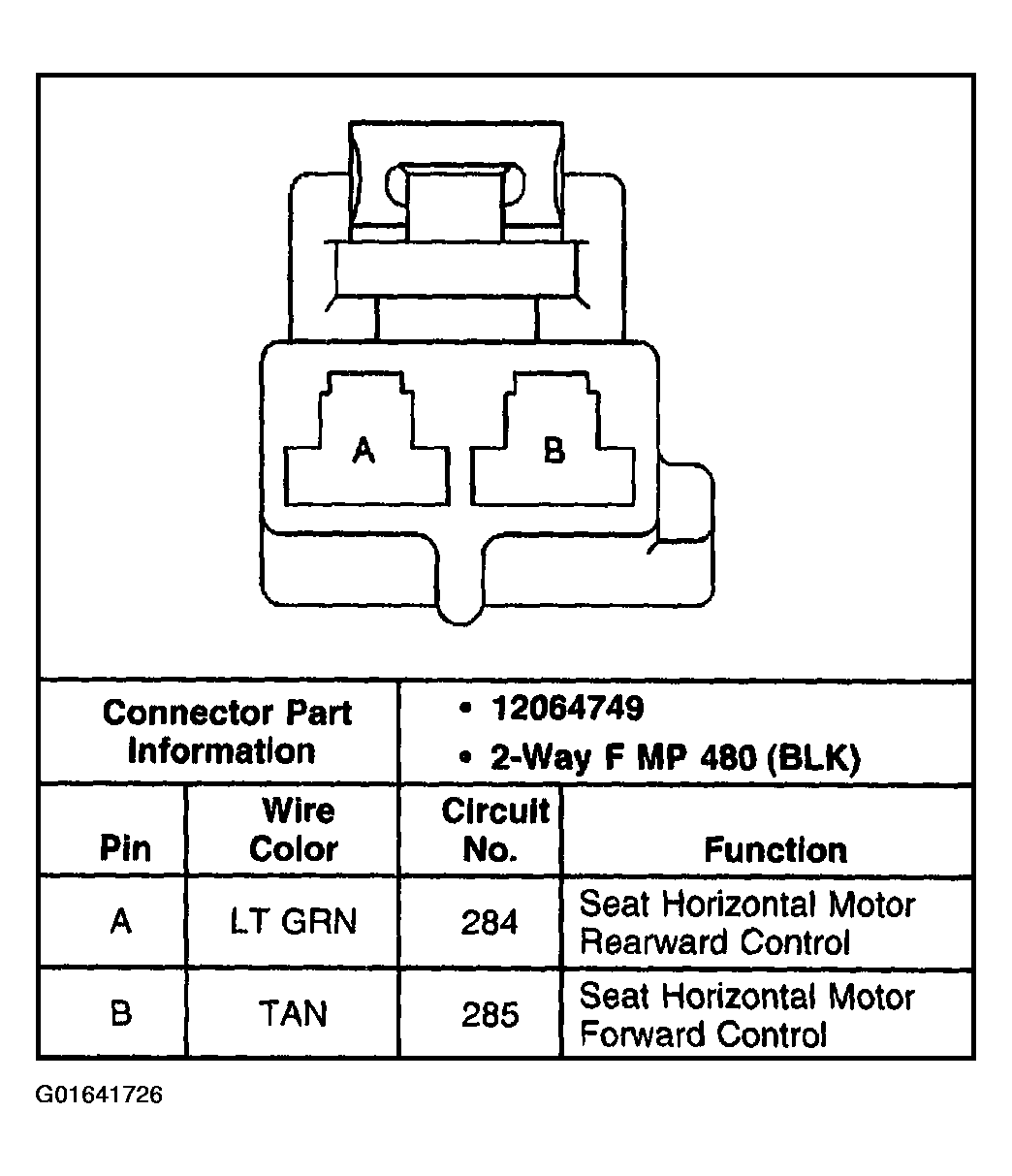

Fig 1: Seat Horizontal Motor Connector End View - Driver/Passenger

G01641726

Courtesy of GENERAL MOTORS CORP.
