LF Driver Door Lock Cylinder Switch Connector End View

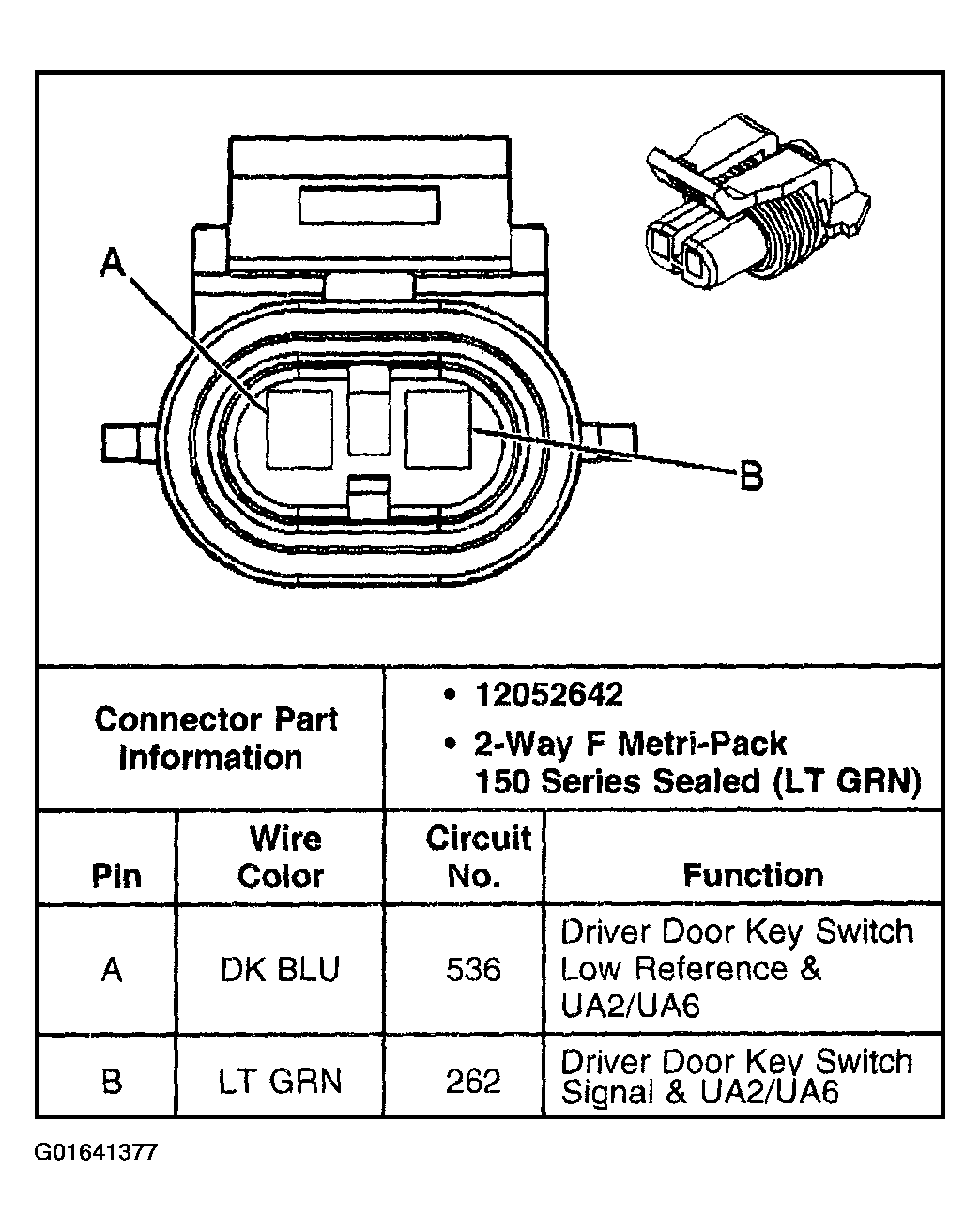

Fig 1: LF Driver Door Lock Cylinder Switch Connector End View

G01641377

Courtesy of GENERAL MOTORS CORP.
