Fuel/Trip Switch Connector End View

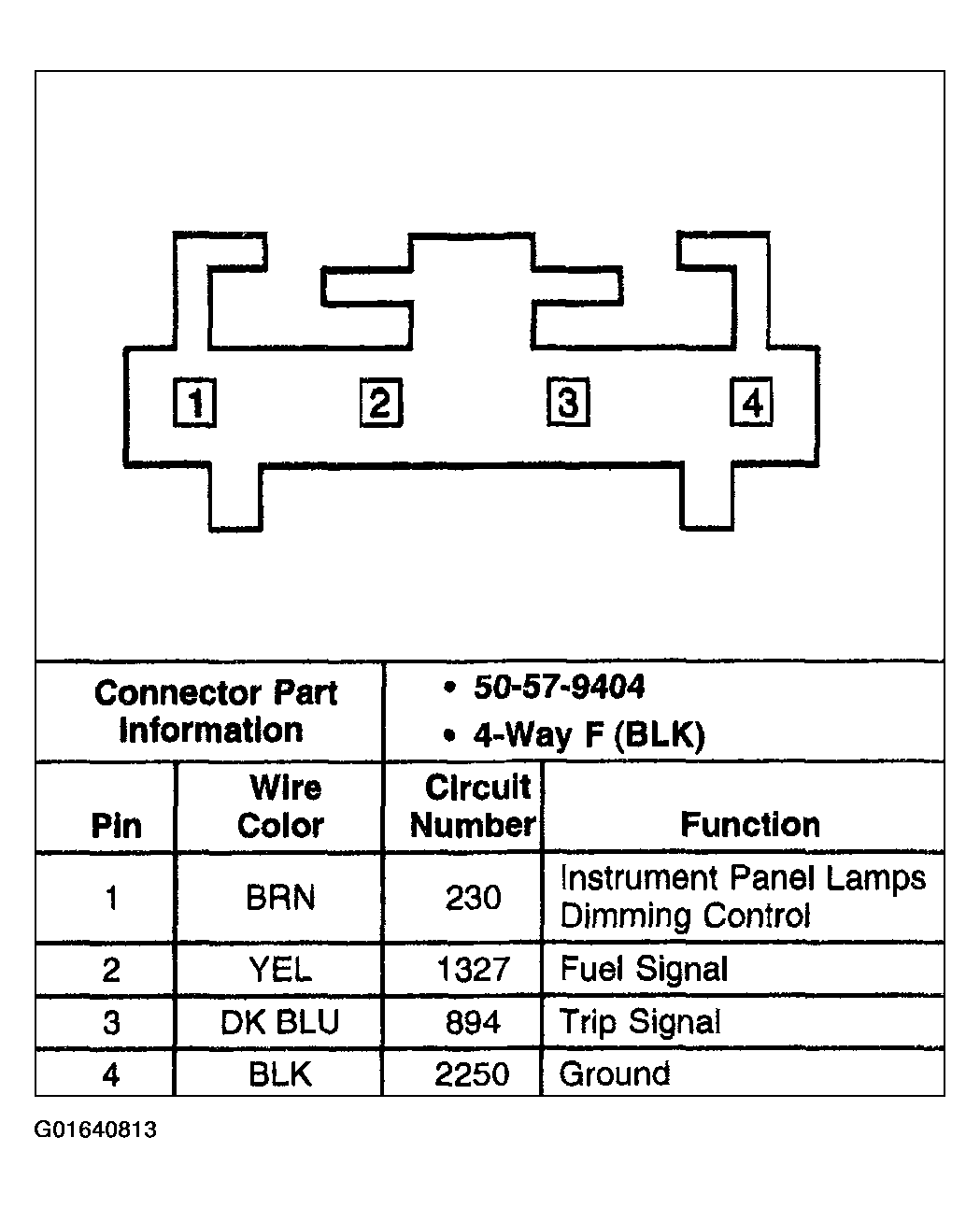

Fig 1: Fuel/Trip Switch Connector End View
G01640813Courtesy of GENERAL MOTORS CORP.
