Engine Oil Level and Temperature Sensor Connector End View - 4.2L

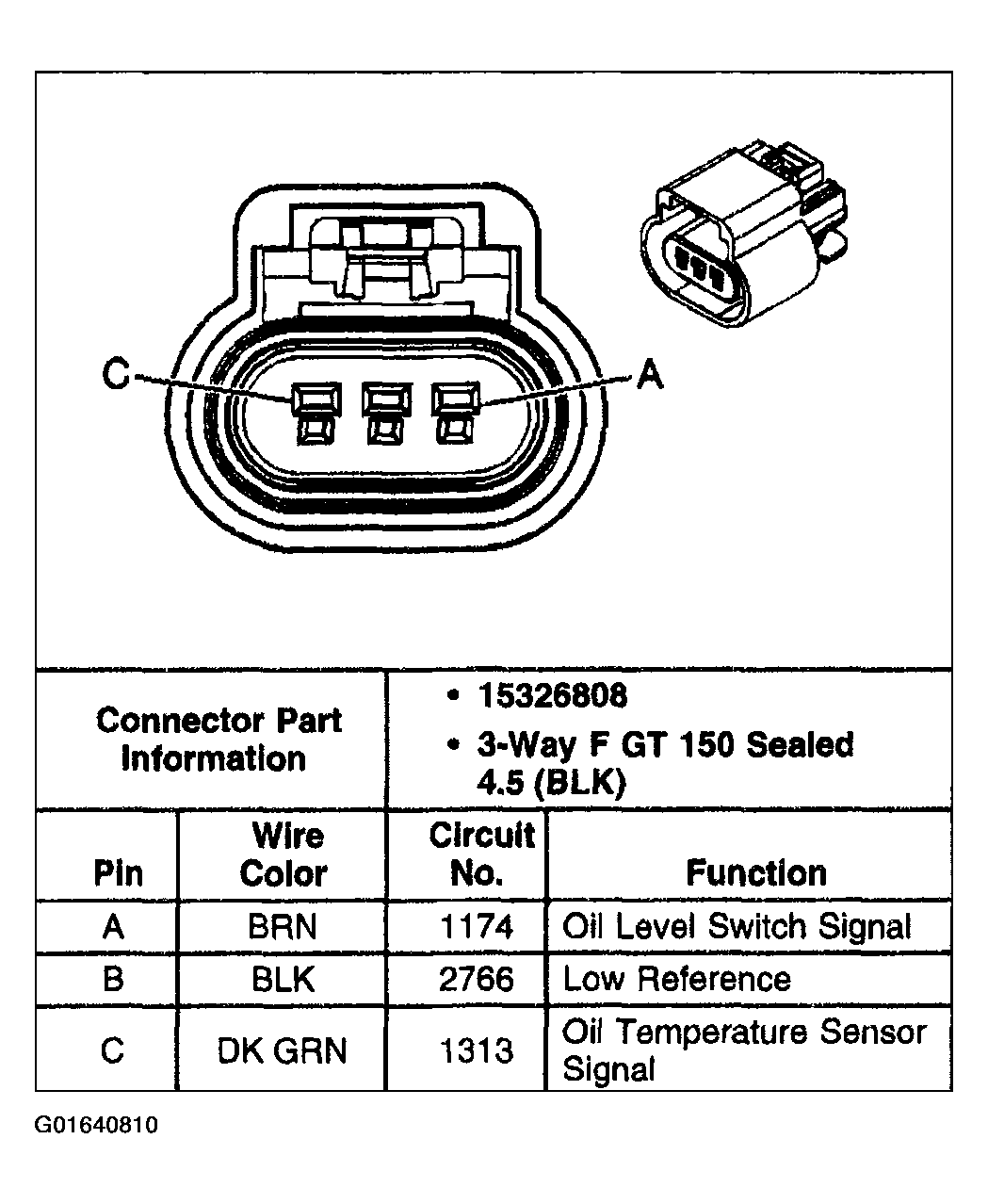

Fig 1: Engine Oil Level and Temperature Sensor Connector End View - 4.2L

G01640810

Courtesy of GENERAL MOTORS CORP.
