Defrost Actuator Connector End View

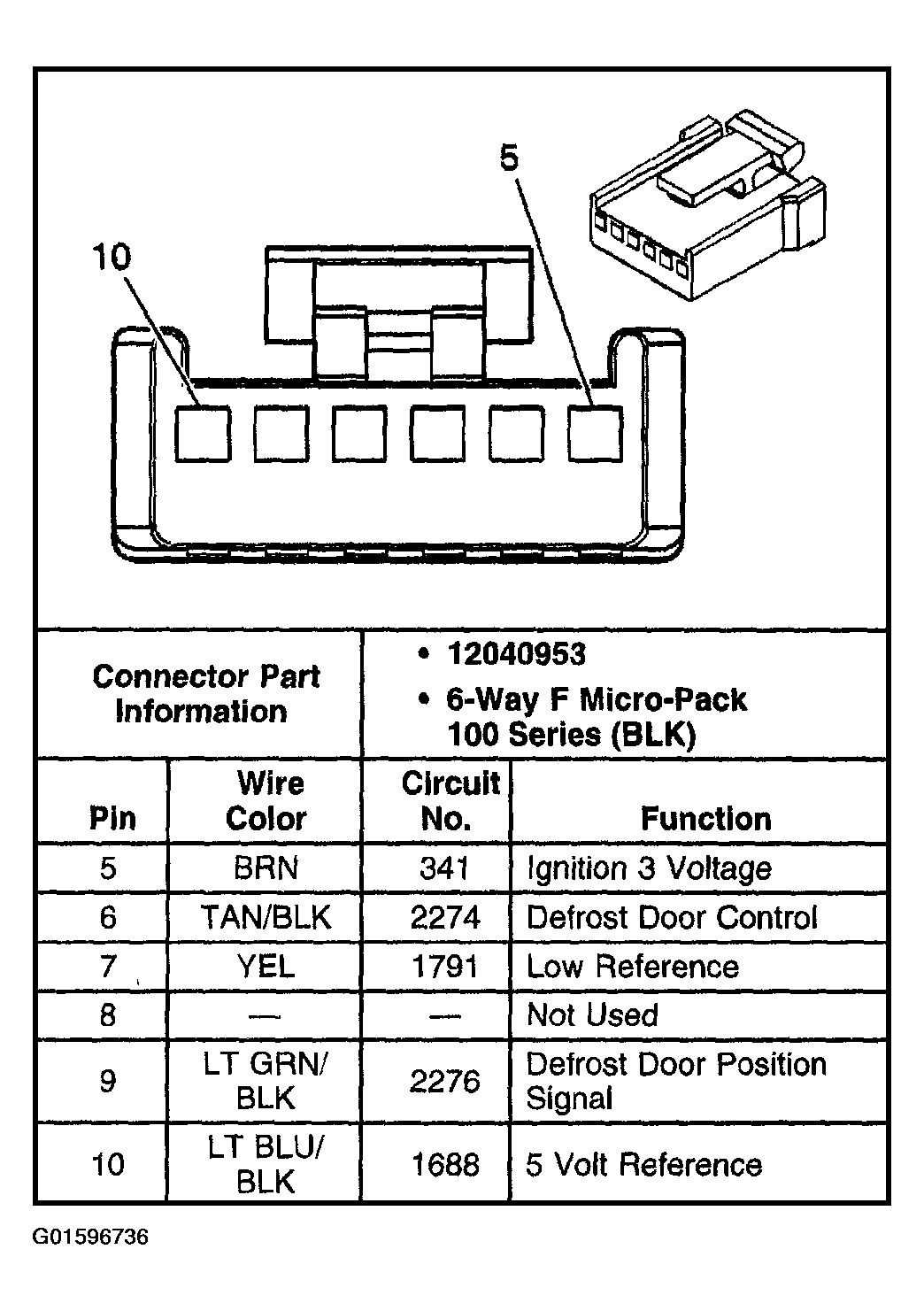

Fig 1: Defrost Actuator Connector End View

G01596736

Courtesy of GENERAL MOTORS CORP.

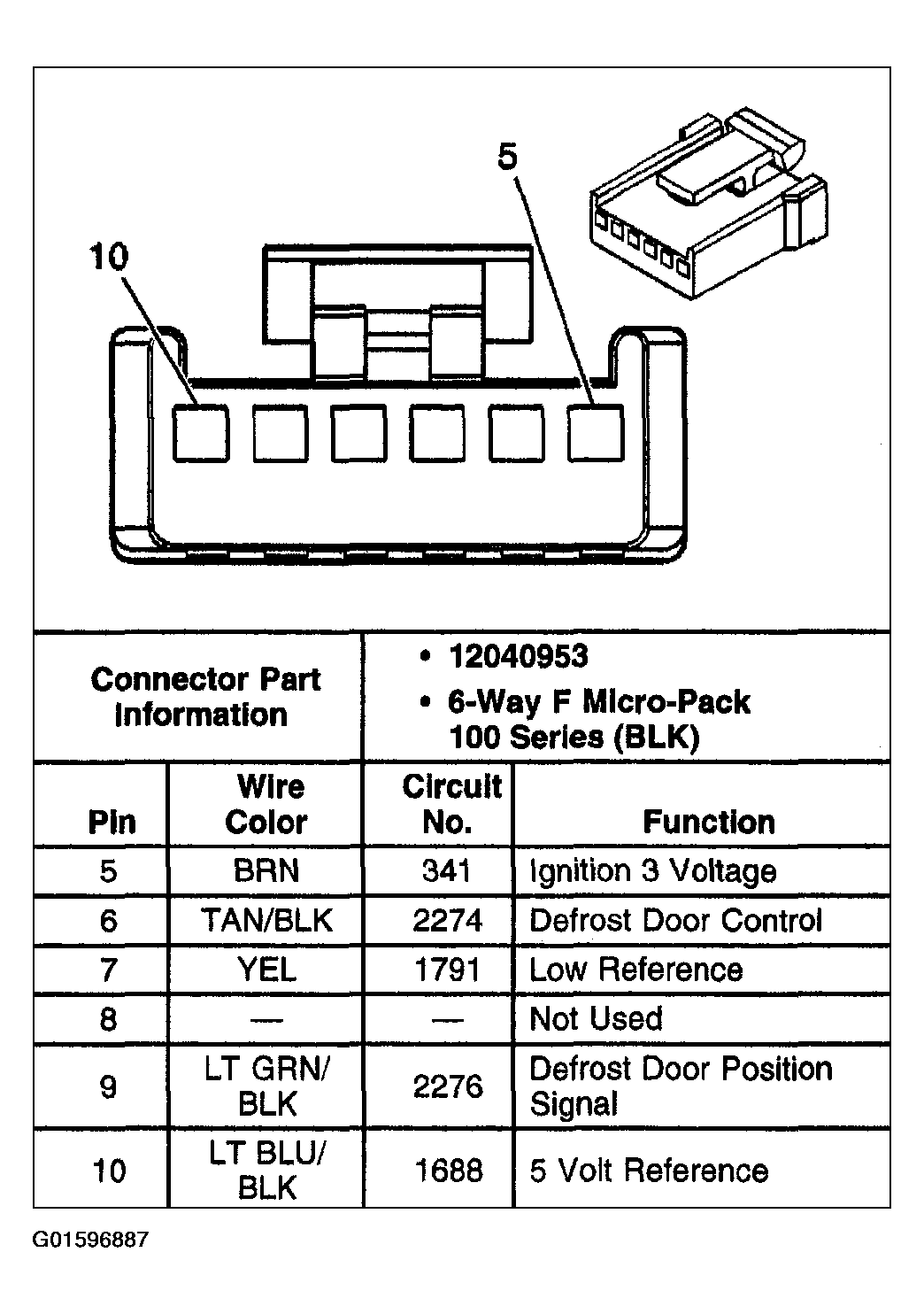

Fig 1: Defrost Actuator Connector End View

G01596887

Courtesy of GENERAL MOTORS CORP.
