Ambient Light/Sunload Sensor Assembly Connector End View

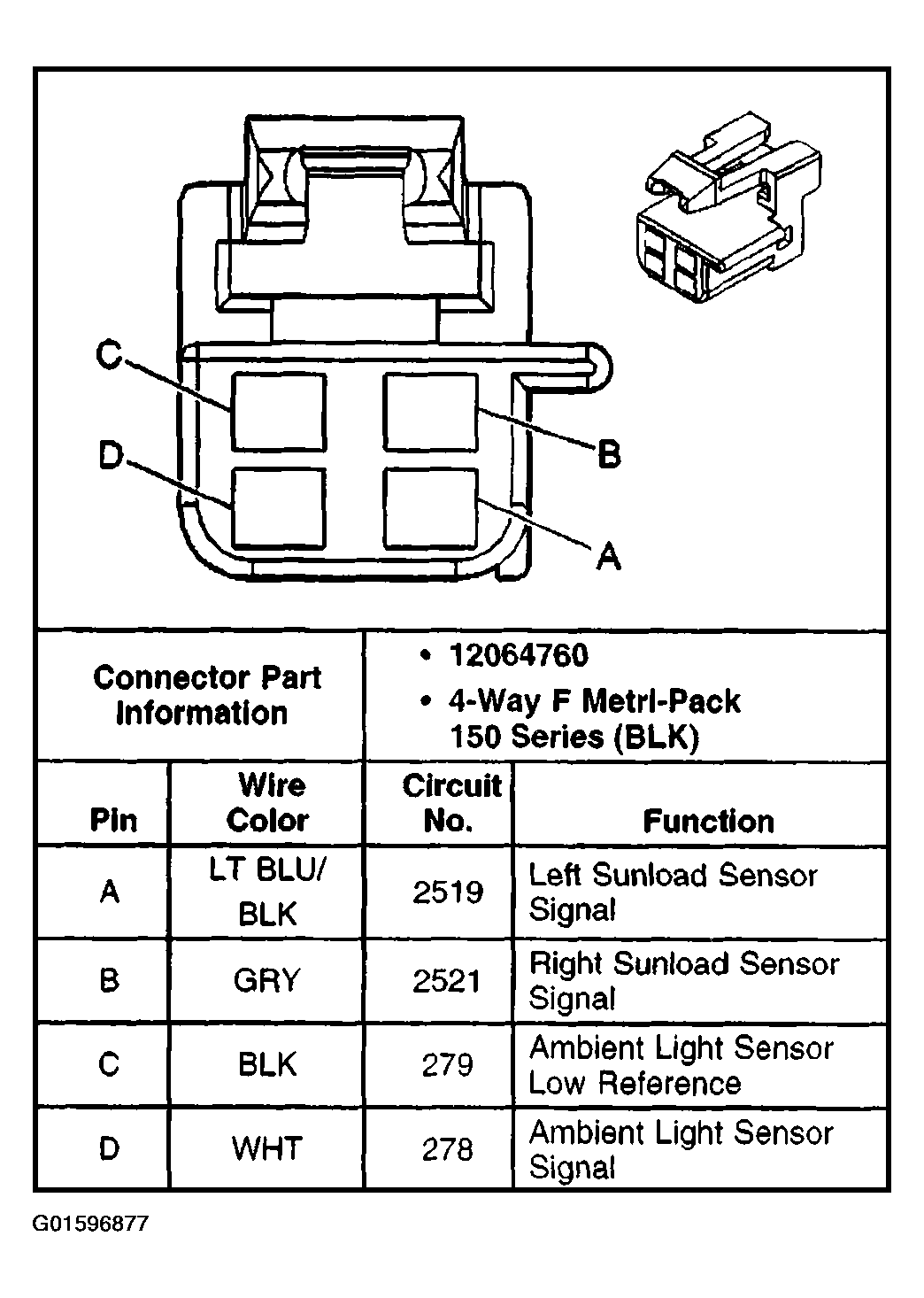

Fig 1: Ambient Light/Sunload Sensor Assembly Connector End View

G01596877

Courtesy of GENERAL MOTORS CORP.
