Air Temperature Sensor Connector End View - Upper Right

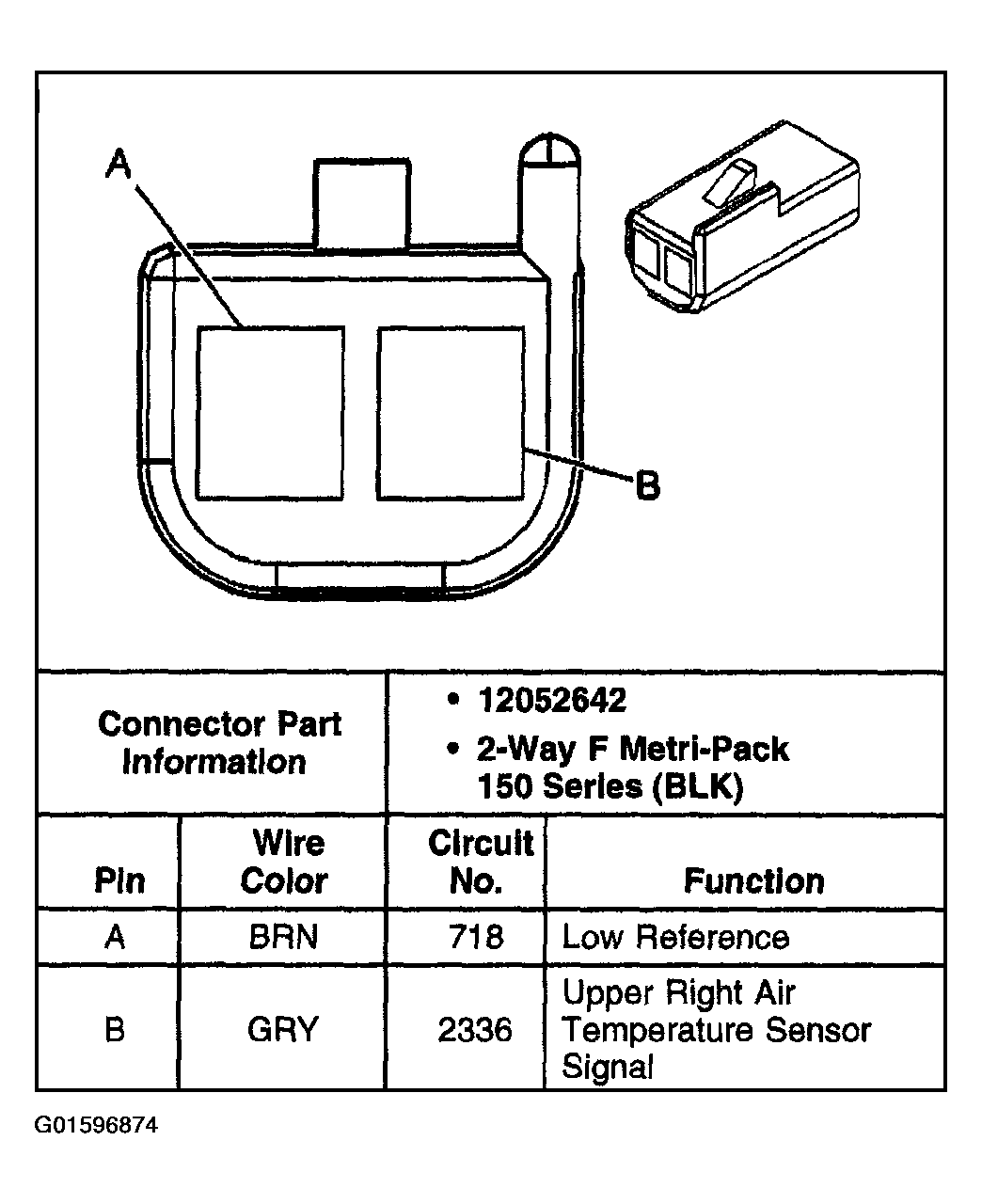

Fig 1: Air Temperature Sensor Connector End View - Upper Right

G01596874

Courtesy of GENERAL MOTORS CORP.
