Air Temperature Sensor Connector End View - Upper Left

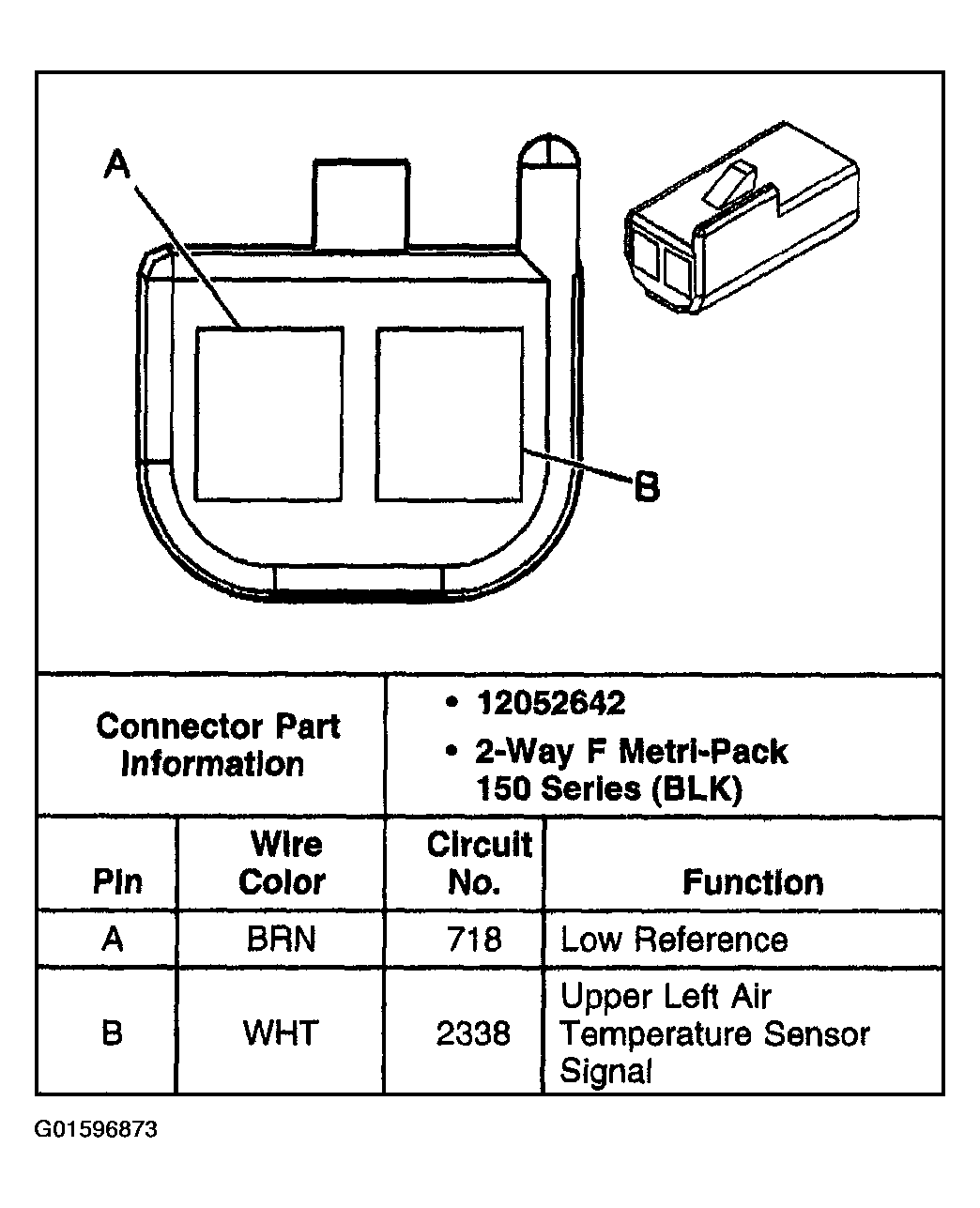

Fig 1: Air Temperature Sensor Connector End View - Upper Left

G01596873

Courtesy of GENERAL MOTORS CORP.
