Air Temperature Sensor Connector End View - Lower Right

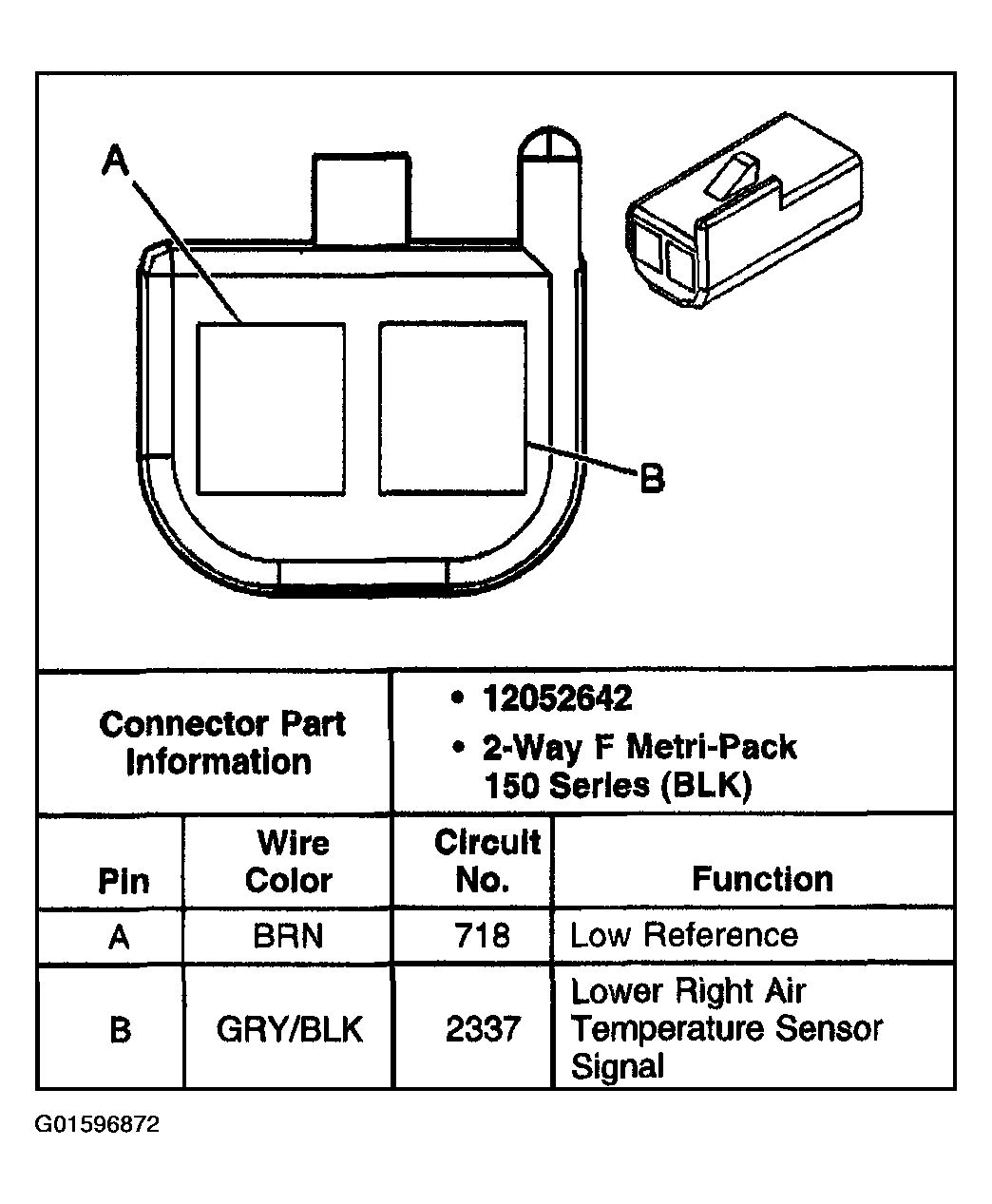

Fig 1: Air Temperature Sensor Connector End View - Lower Right

G01596872

Courtesy of GENERAL MOTORS CORP.
