AT Inline 20-Way Connector End View, Engine Side

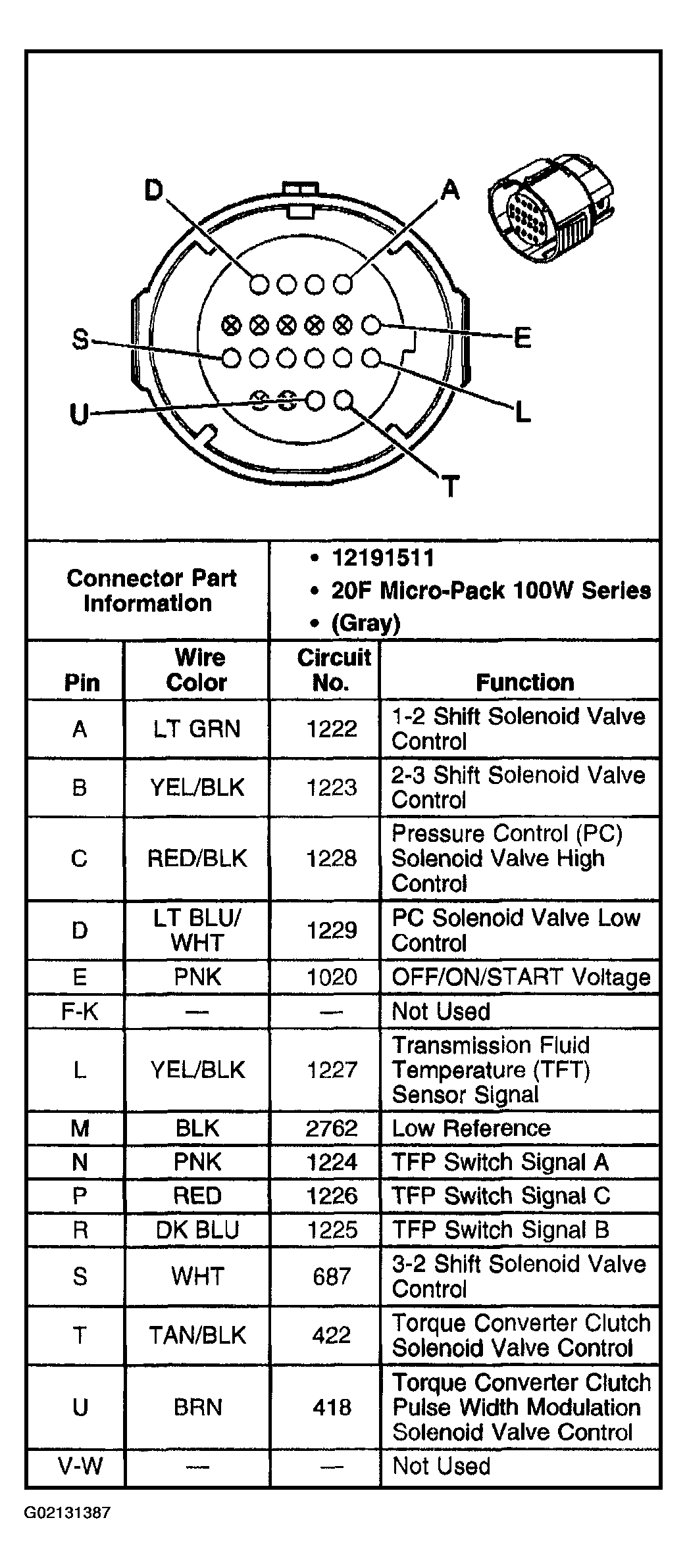

Fig 1: AT Inline 20-Way Connector End View, Engine Side

G02131387

Courtesy of GENERAL MOTORS CORP.
