Driver Seat Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

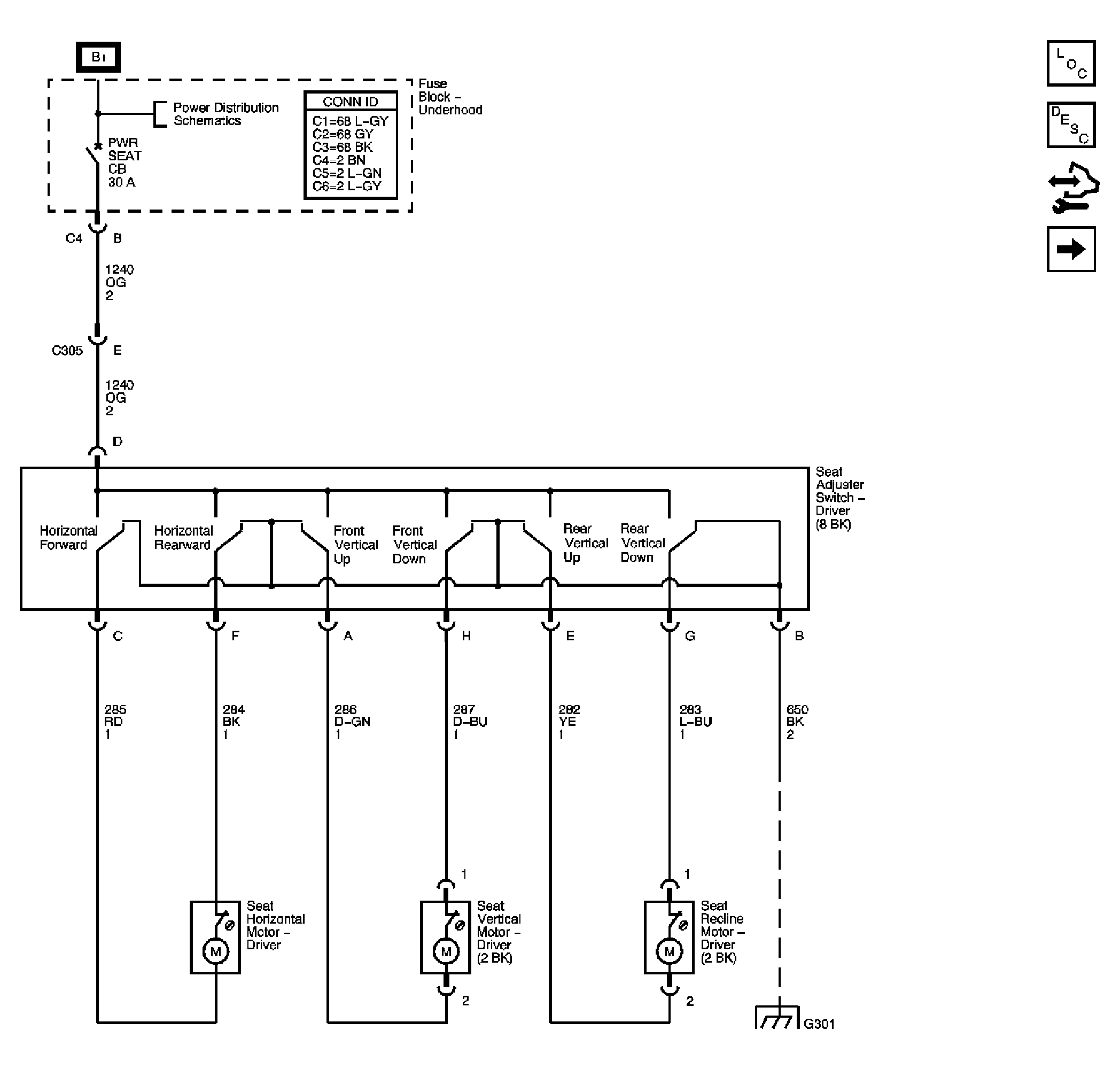

Fig 1: Driver Seat Schematic
GM1798639Courtesy of GENERAL MOTORS CORP.
