Installation Procedure

  1. Install the windshield reveal molding.
  2. Install the weatherstrip side retainer (2) to the windshield pillar.

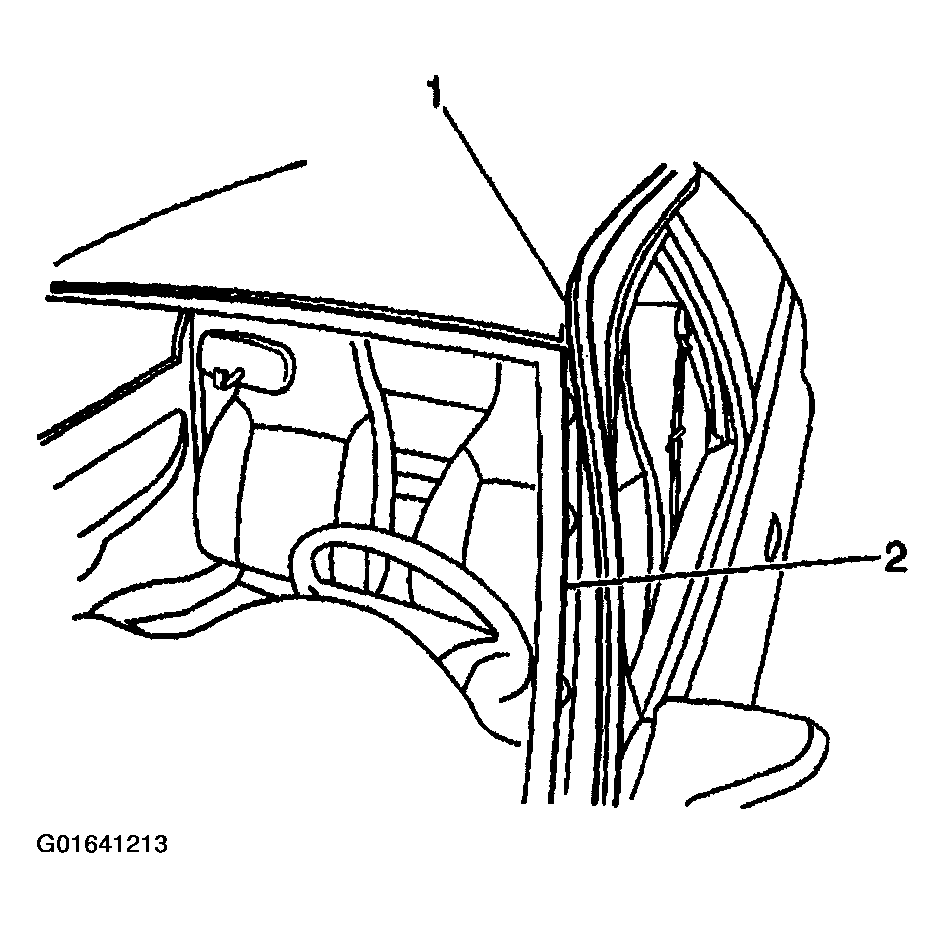

    Fig 1: Installing Windshield Reveal Molding
    G01641213Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice   in Cautions and Notices.
  3. Install the screws to the weatherstrip side retainer.

    Tighten

    Tighten the screws to the weatherstrip side retainer to 2 N.m (18 lb in).

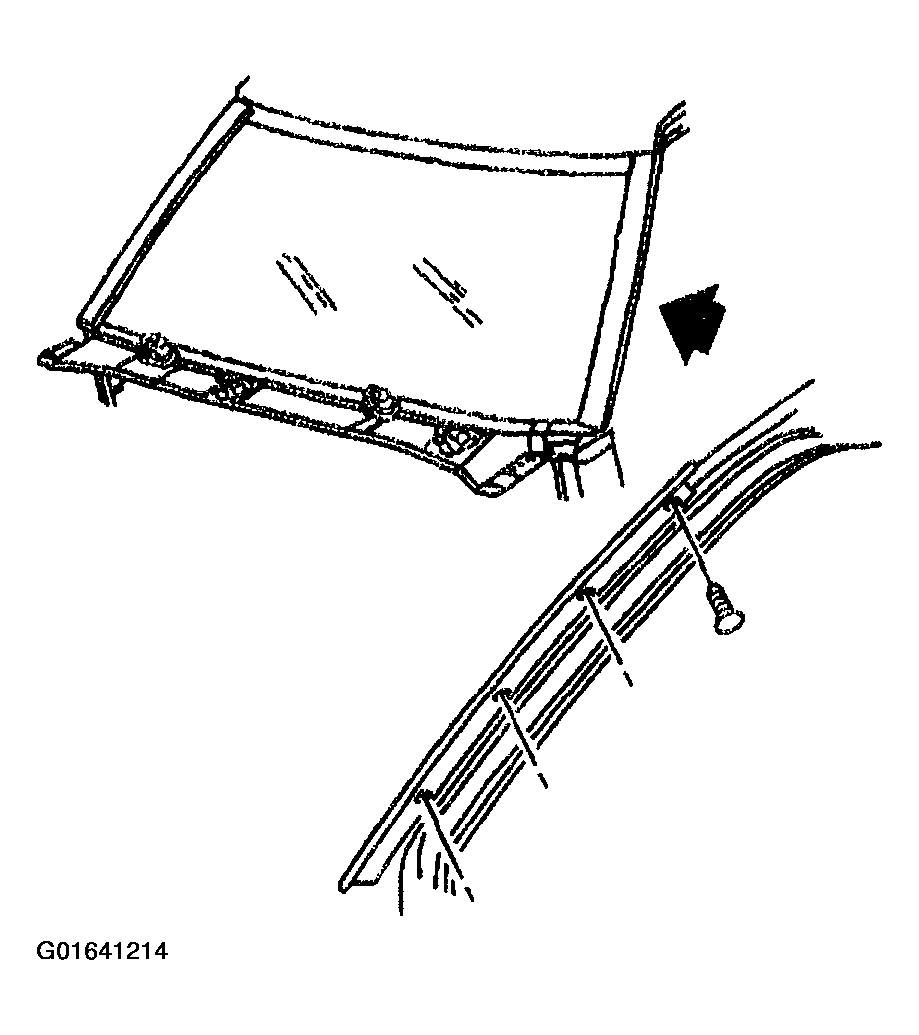

    Fig 2: Installing Screws To Weatherstrip Side Retainer
    G01641214Courtesy of GENERAL MOTORS CORP.
  4. Install the push pin retainers (2) to the front door sealing weatherstrip located at the base of the pillar.
  5. Close the door.

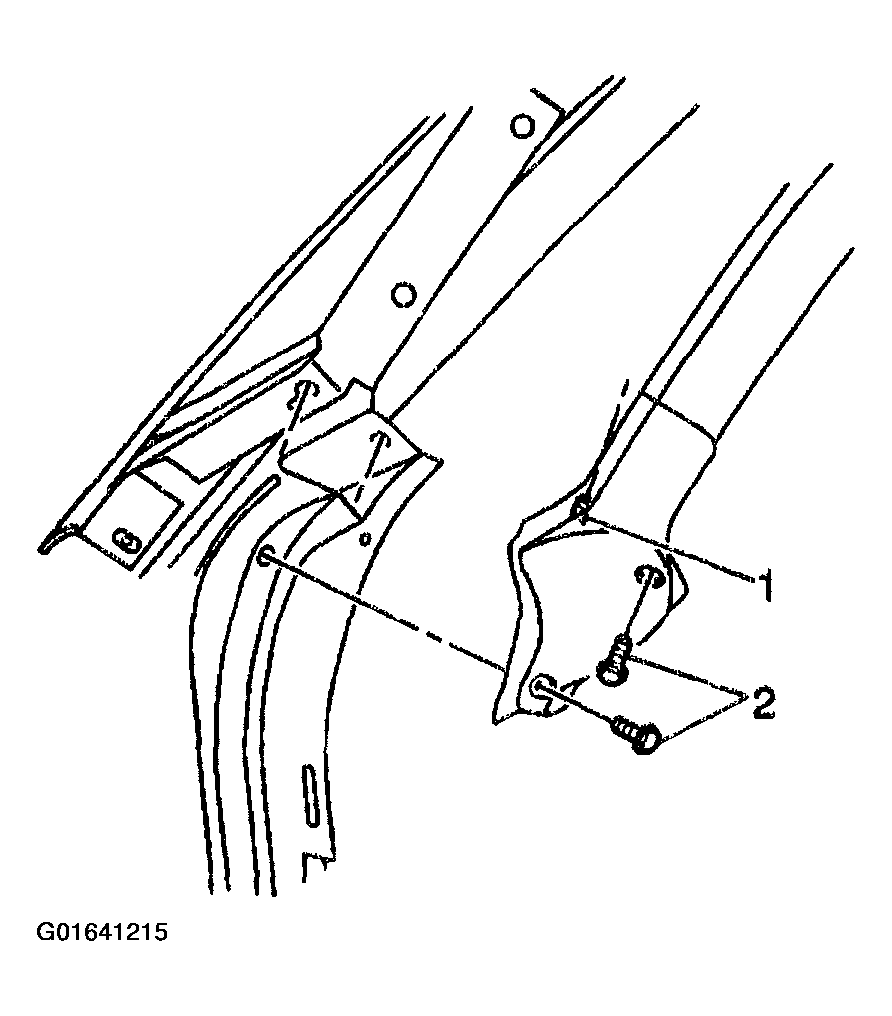

    Fig 3: Installing Push Pin Retainers To Front Door Sealing Weatherstrip
    G01641215Courtesy of GENERAL MOTORS CORP.
