Removal Procedure

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM  and to DISABLING & ACTIVATING AIR BAG SYSTEM  in SIR.
  2. Remove the accessory switch panel. Refer to SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - DRIVER   .
  3. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR   .
  4. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER   .
  5. Remove the inside door handle. Refer to DOOR HANDLE REPLACEMENT - INSIDE   .
  6. Remove the speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR  in Entertainment.
  7. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR   .
  8. Remove the outside rear view mirror (ORVM).

    Refer to MIRROR REPLACEMENT   .

  9. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR   .
  10. Remove the weatherstrip run channel. Refer to WINDOW WEATHERSTRIP RUN CHANNEL ASSEMBLY REPLACEMENT - FRONT   .
  11. Remove the window regulator. Refer to WINDOW REGULATOR REPLACEMENT - FRONT DOOR   .
  12. Remove the door latch assembly. Refer to LATCH REPLACEMENT - FRONT DOOR   .
  13. Remove the side door SIR sensor. Refer to SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM  in SIR.
  14. Remove the outside door handle. Refer to DOOR HANDLE REPLACEMENT - FRONT OUTSIDE   .
  15. Remove the check link. Refer to DOOR CHECK LINK REPLACEMENT   .
  16. Remove the wire harness from the door. Refer to WIRING HARNESS REPLACEMENT - FRONT DOOR   .
  17. Remove the bolts that retain the door to the hinge plates.
  18. Remove the door from the vehicle with an assistant.

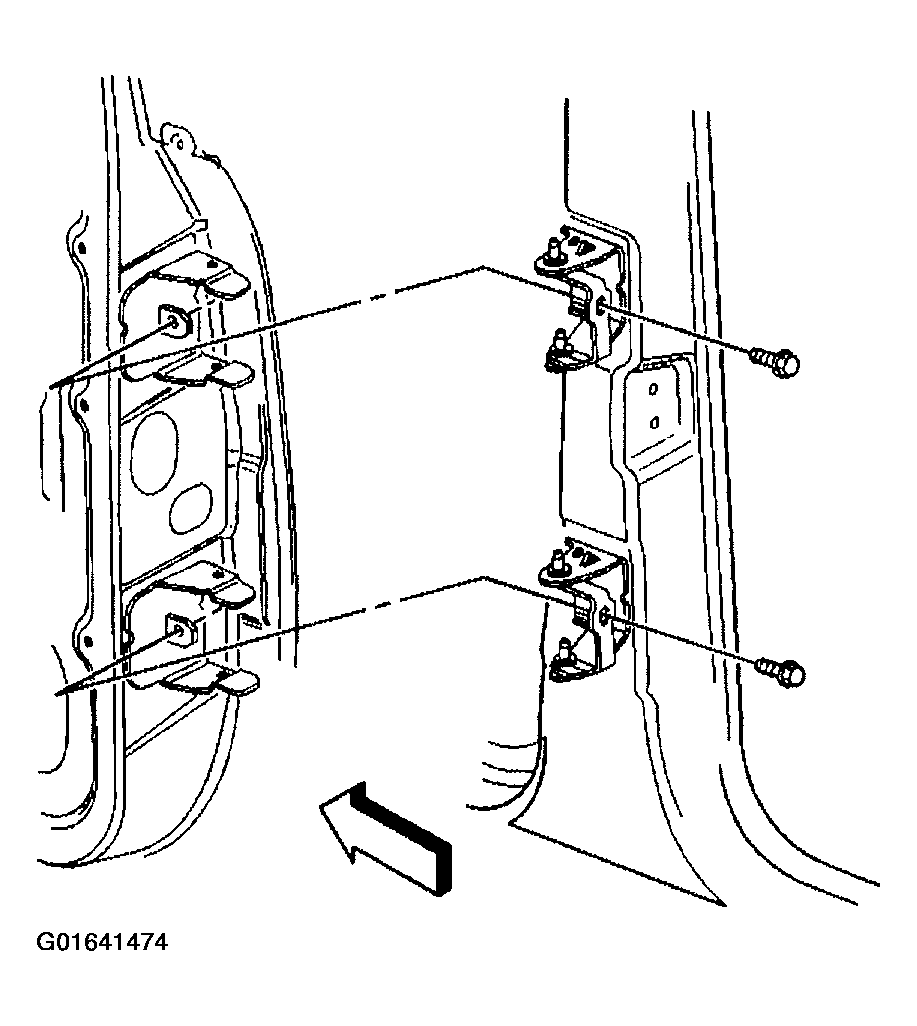

    19. Fig 1: Removing Bolts Retaining Side Front Door To Hinge Plates
    G01641474Courtesy of GENERAL MOTORS CORP.
