Power Mirrors - Memory Functions Inoperative

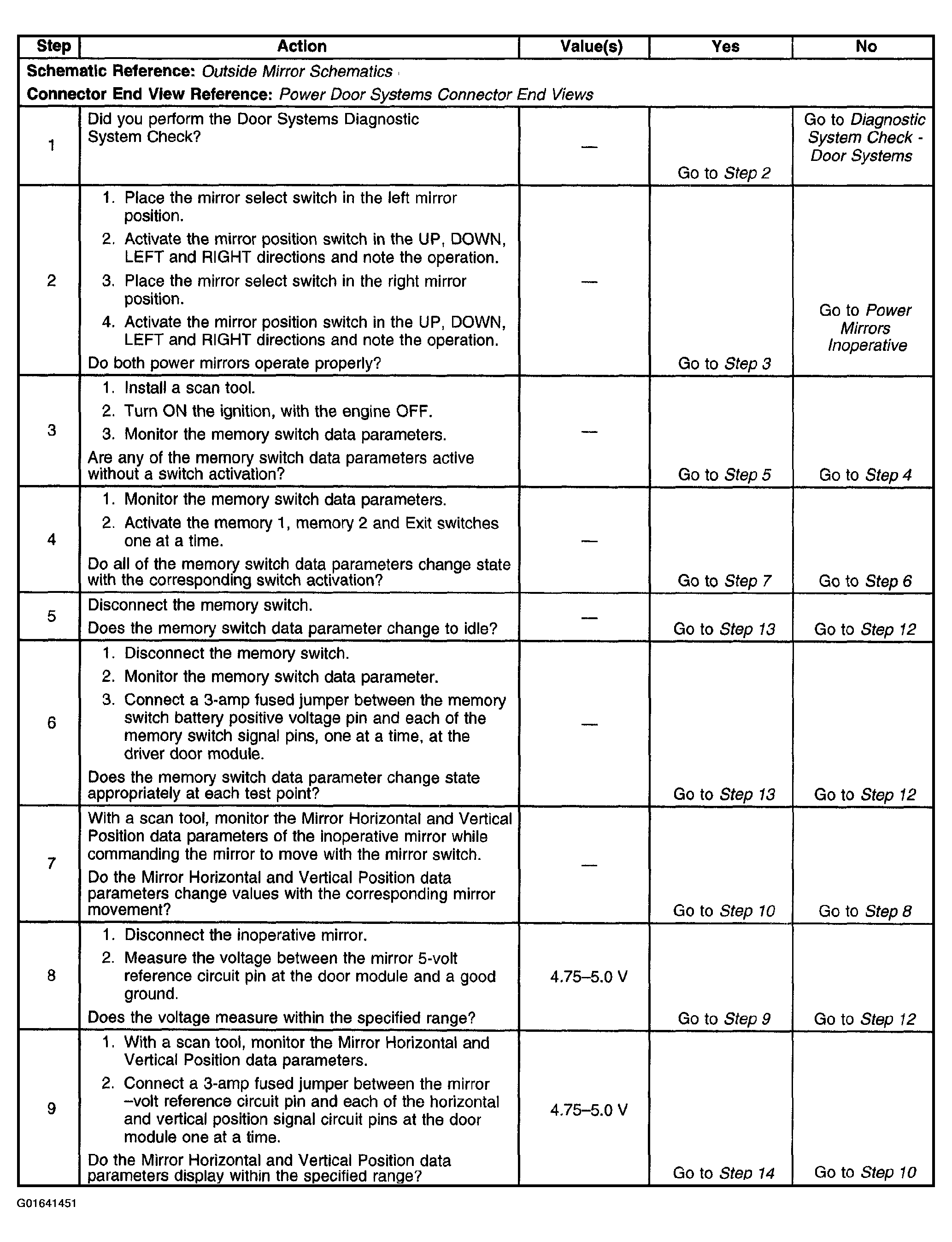

Fig 1: Power Mirrors Symptom Tests - Memory Functions Inoperative Procedure (Steps 1-9)
G01641451Courtesy of GENERAL MOTORS CORP.

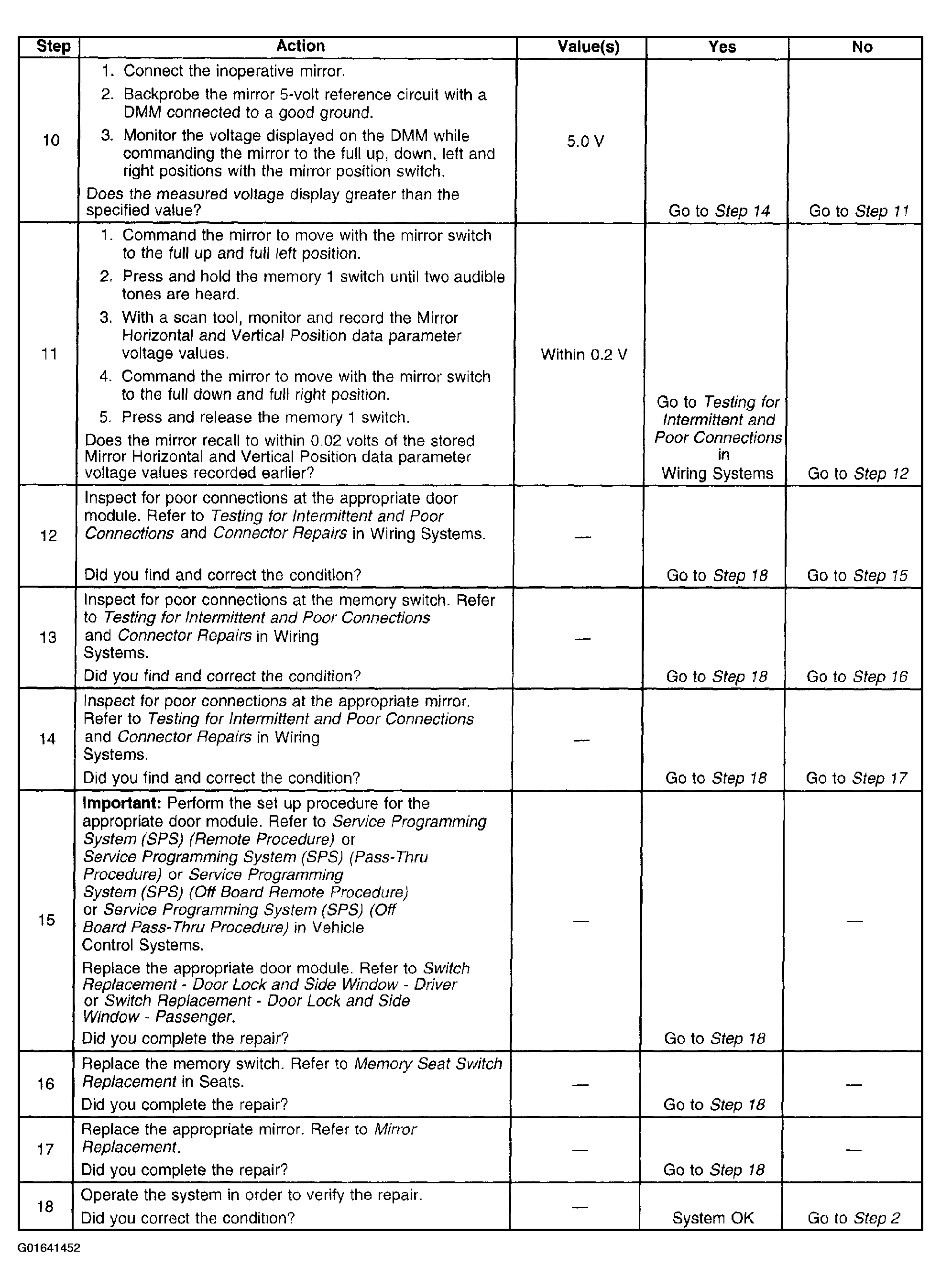

Fig 2: Power Mirrors Symptom Tests - Memory Functions Inoperative Procedure (Steps 10-18)
G01641452Courtesy of GENERAL MOTORS CORP.
