Installation Procedure

  1. Install the seat back over the top of the seat-back frame.

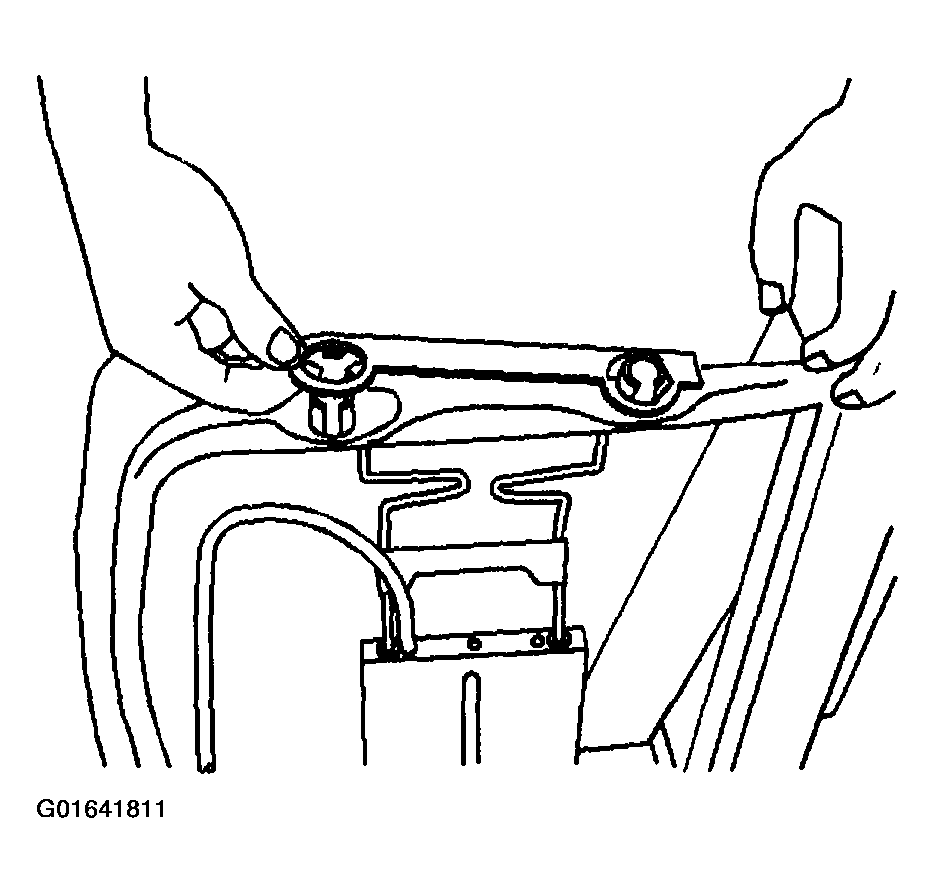

    2. Fig 1: Seat Back Over Top Of Seat-Back Frame
    G01641811Courtesy of GENERAL MOTORS CORP.
  2. Install the panel to the seat-back frame with 2 push-pin fasteners (1) to each side of the panel.

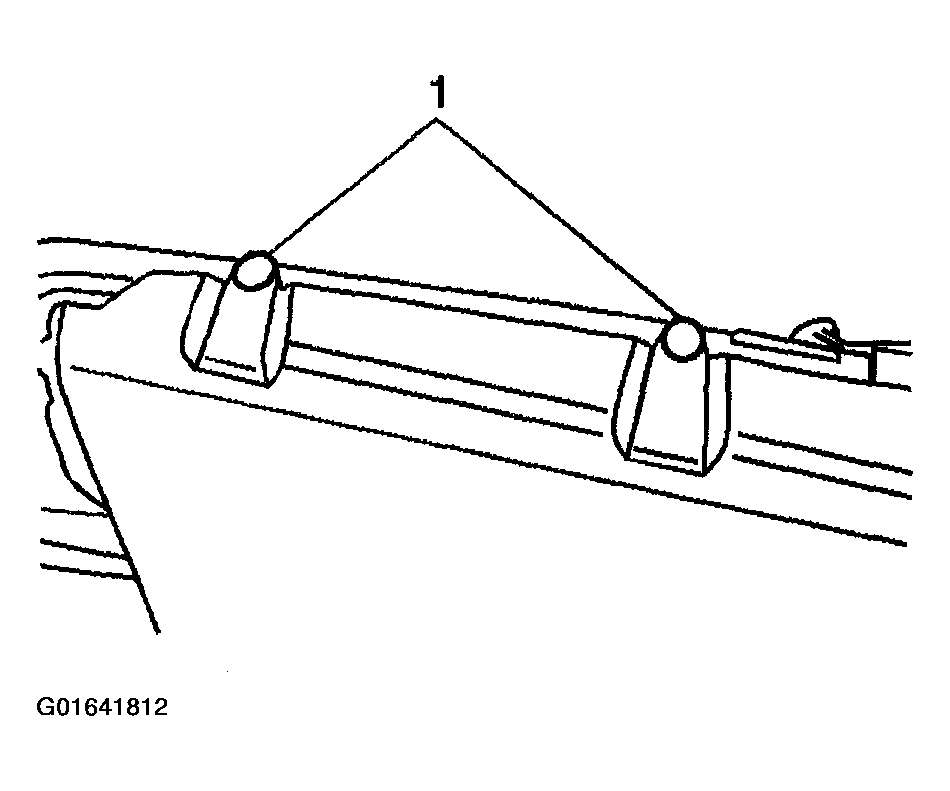

    3. Fig 2: Panel To Seat-Back Frame With 2 Push-Pin Fasteners
    G01641812Courtesy of GENERAL MOTORS CORP.
  3. Install the push-pin fastener (1) to the bottom of the panel.

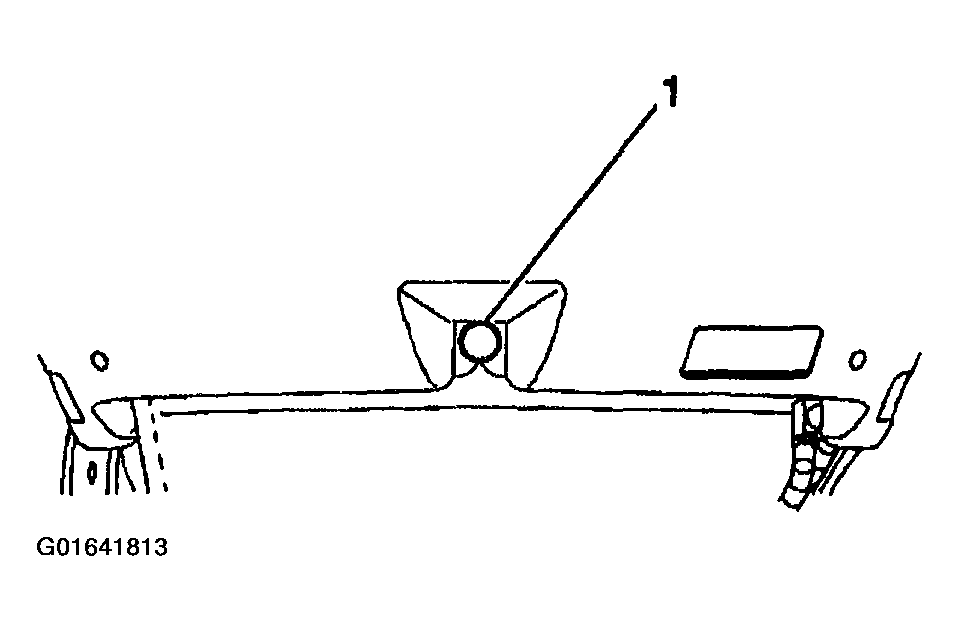

    4. Fig 3: push-pin fastener
    G01641813Courtesy of GENERAL MOTORS CORP.
  4. Install the lumbar cables to the panel clips.

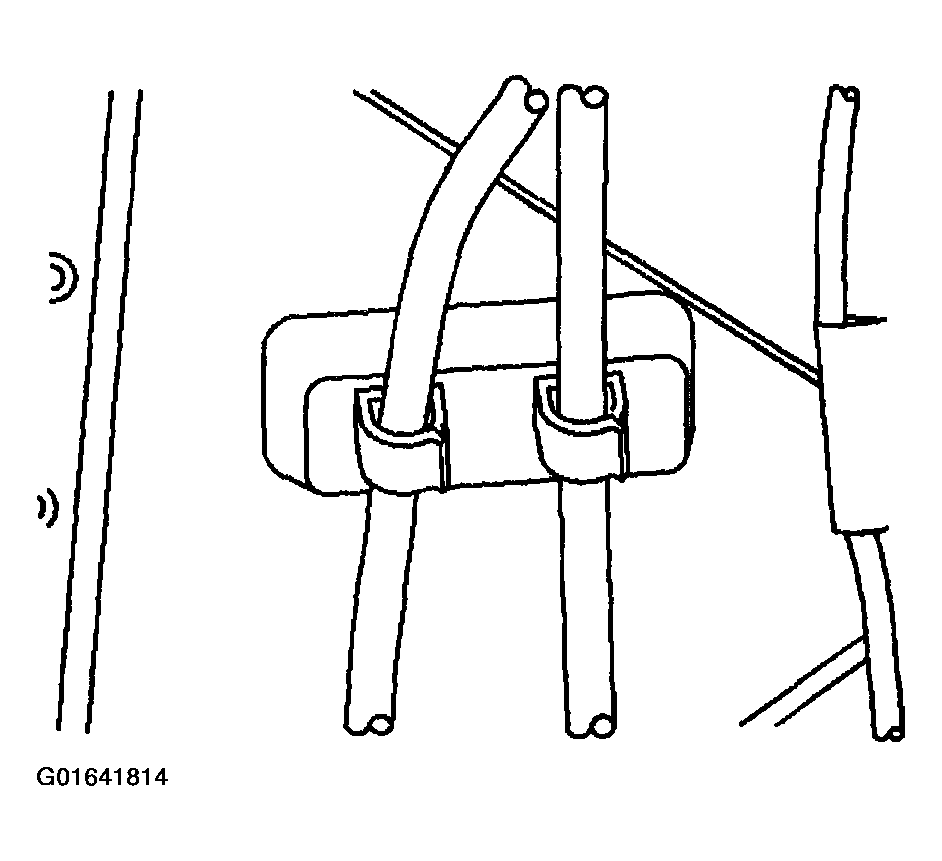

    5. Fig 4: Lumbar Cables To Panel Clips
    G01641814Courtesy of GENERAL MOTORS CORP.
  5. Install the front seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  6. Install the front bucket seat assembly to the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET  .
