Passenger Seat Module (PSM)

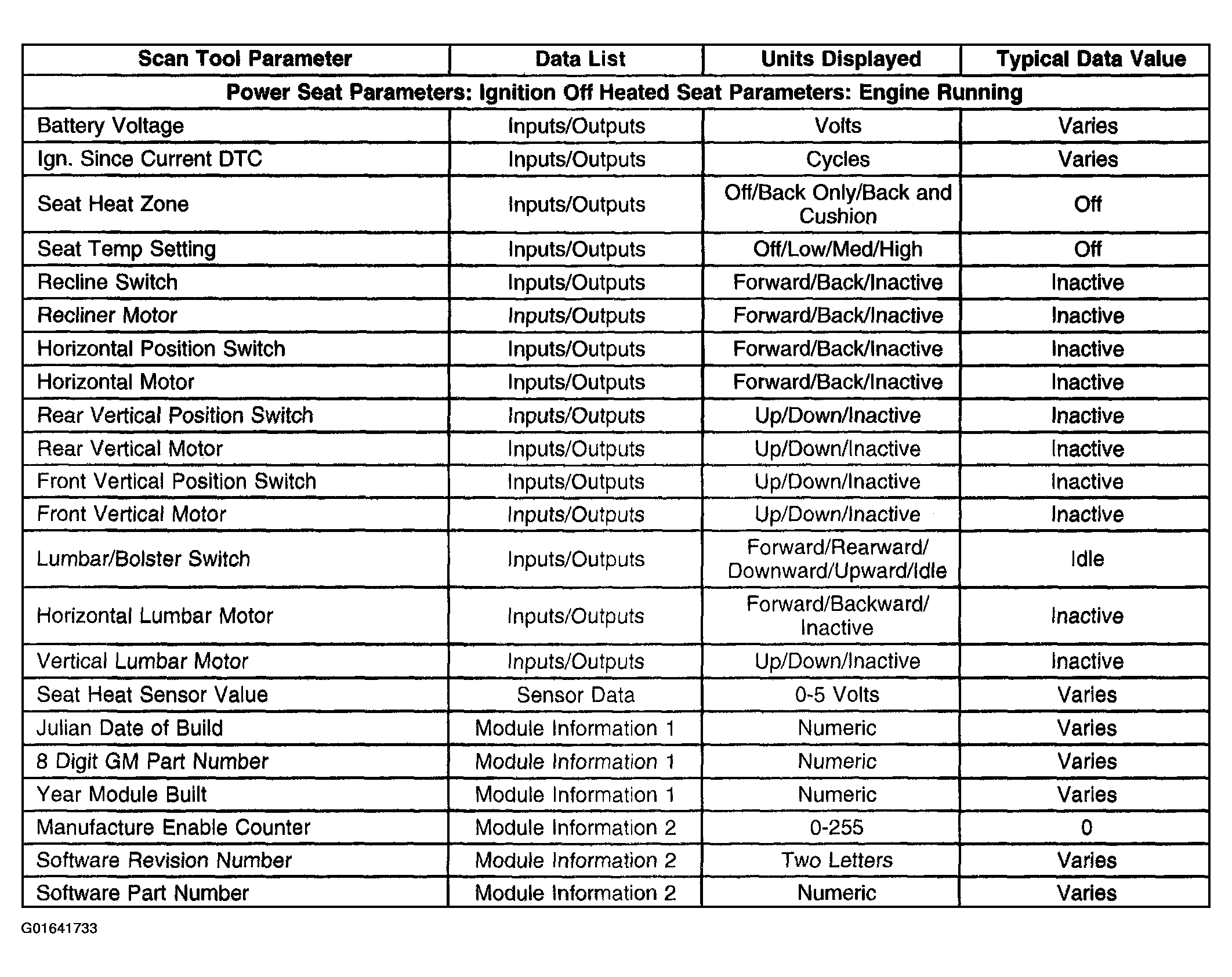

Fig 1: Scan Tool Data List - Driver Seat Module (DSM)

G01641733

Courtesy of GENERAL MOTORS CORP.
