Home >> Oldsmobile >> 2003 >> Bravada AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Diagnostic Information and Procedures >> Scan Tool Data List >> Driver Seat Module (DSM)

Driver Seat Module (DSM)

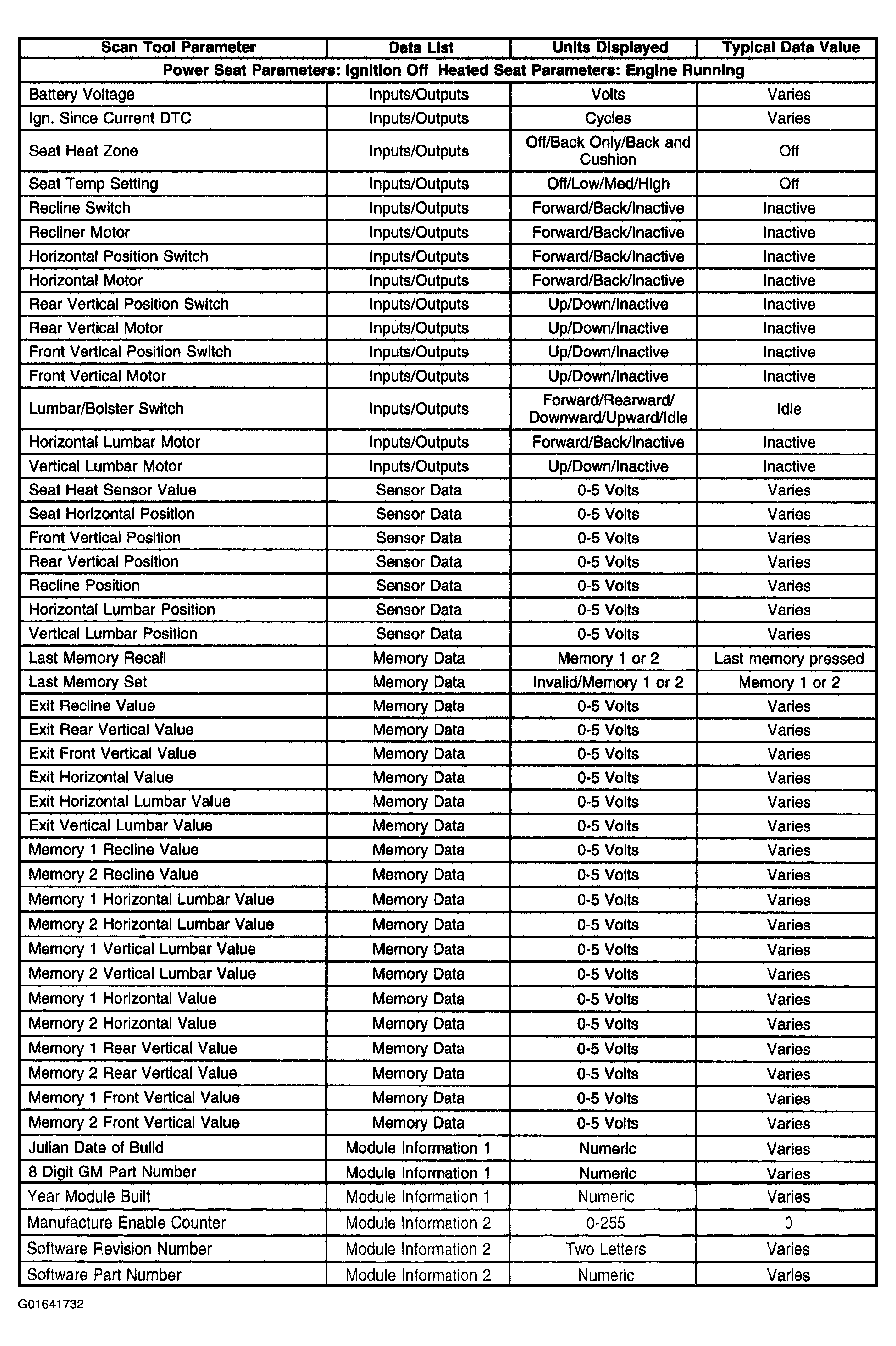

Fig 1: Scan Tool Data List - Driver Seat Module (DSM)

G01641732

Courtesy of GENERAL MOTORS CORP.
