Blower Motor Control Module Connector End View

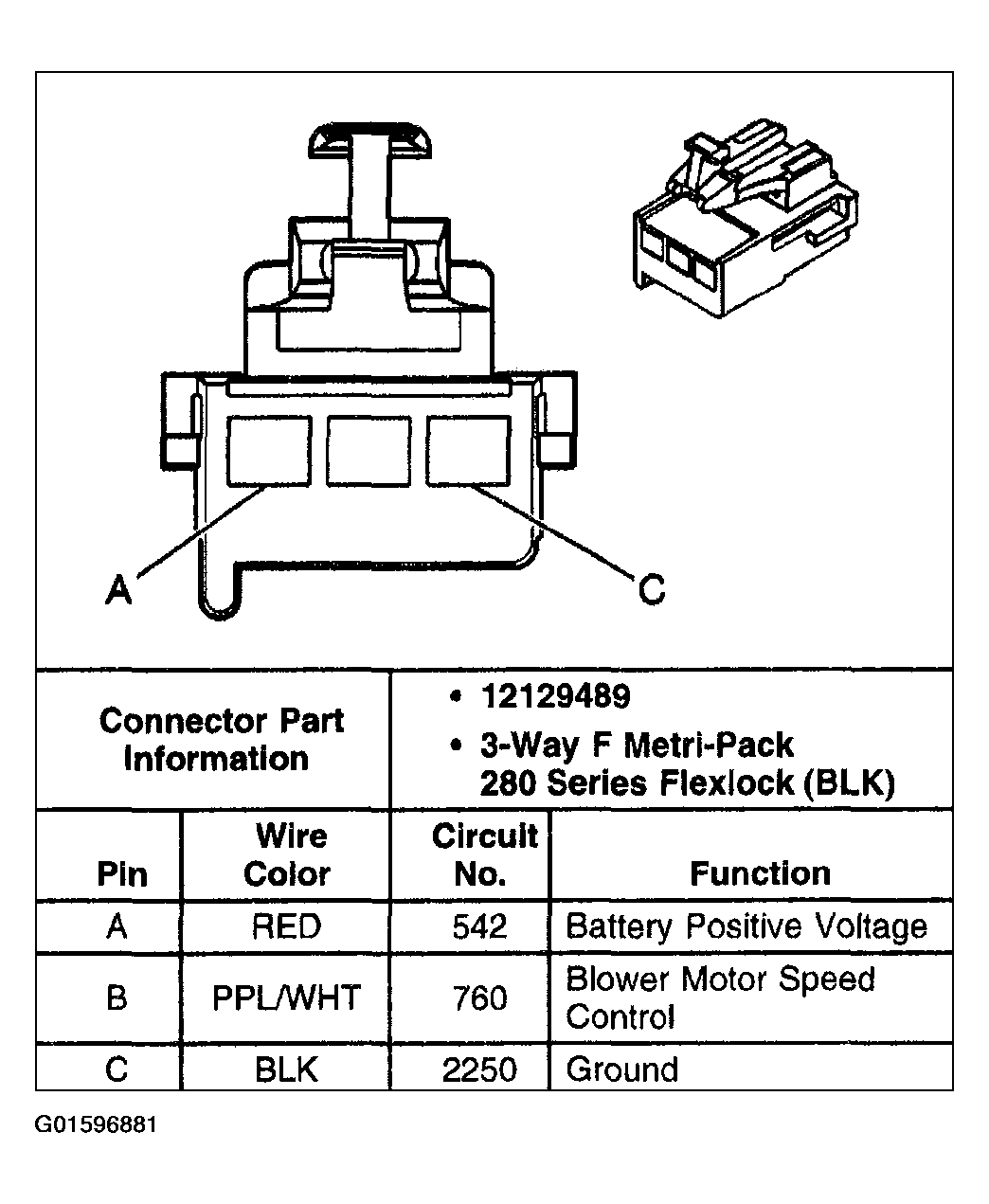

Fig 1: Blower Motor Control Module Connector End View

G01596881

Courtesy of GENERAL MOTORS CORP.
