Installation Procedure

  1. Install the module to the liftgate.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the bolts that retain the module to the liftgate.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

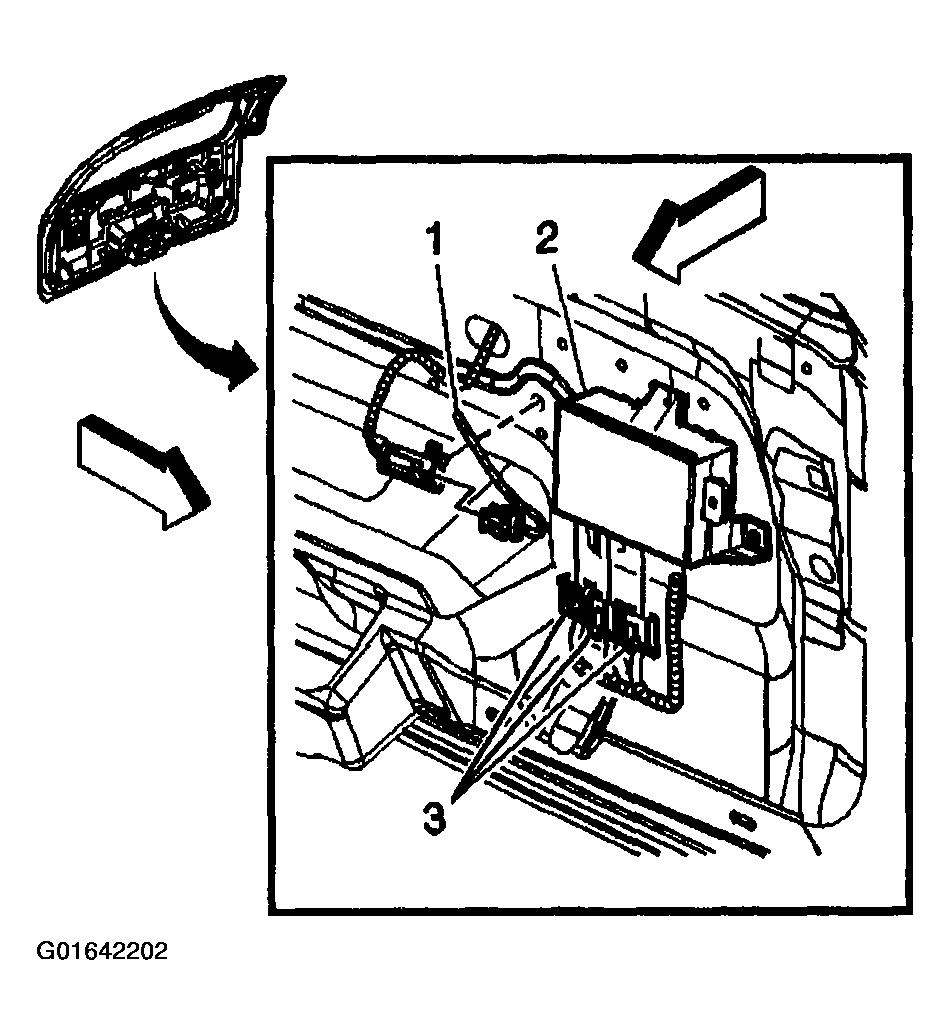

    3. Fig 1: Module To Liftgate
    G01642202Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors (3) as necessary.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  5. Install the liftgate window garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR WINDOW in Interior Trim.
  6. Reprogram the liftgate control module. Refer to LIFT GATE CONTROL MODULE PROGRAMMING  .
