Automatic Transmission Inline 20-Way Connector End View

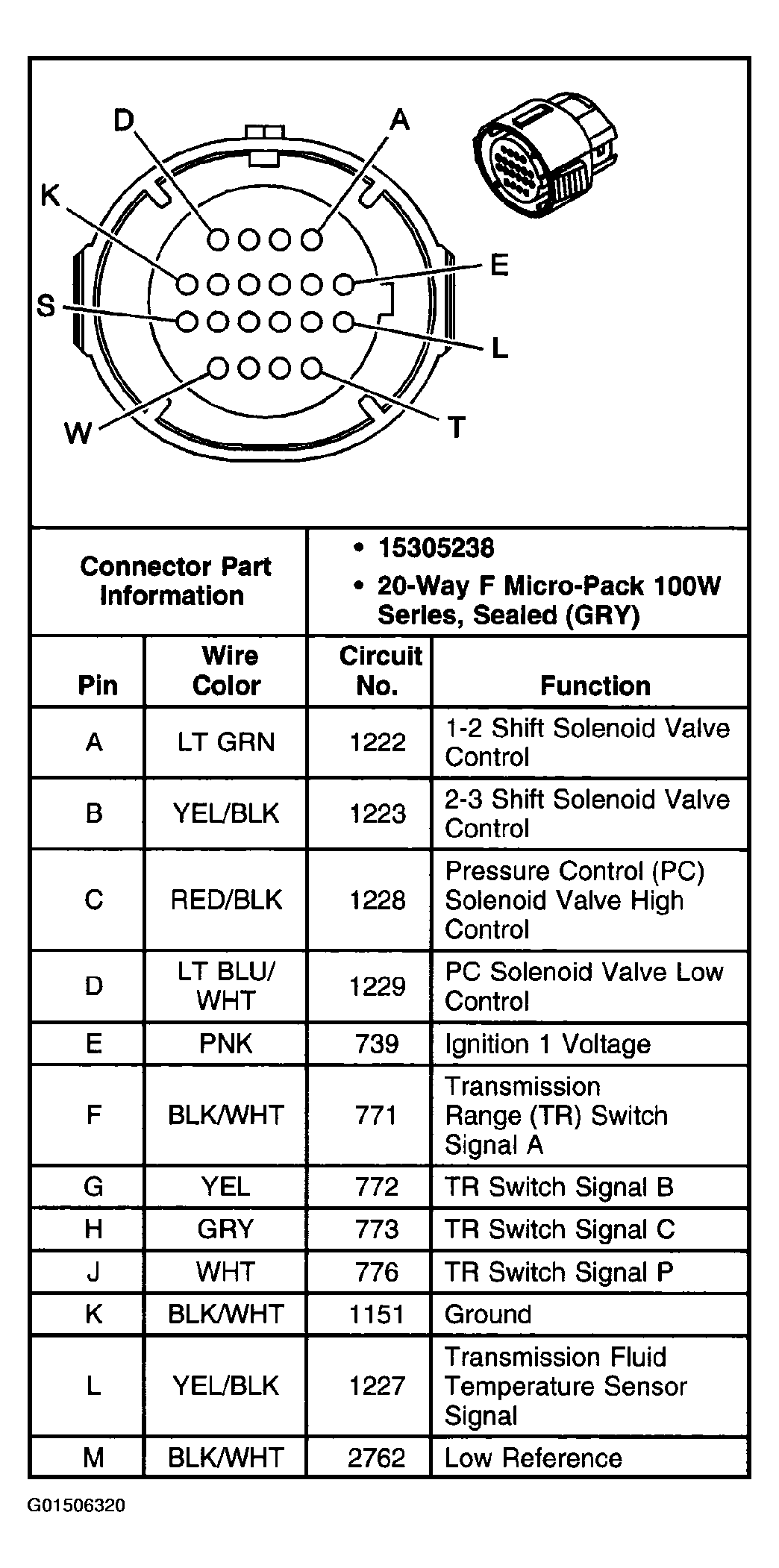

Fig 1: Identifying Engine Side Of Automatic Transmission Inline 20-Way Connector Terminals (1 Of 2)
G01506320Courtesy of GENERAL MOTORS CORP.

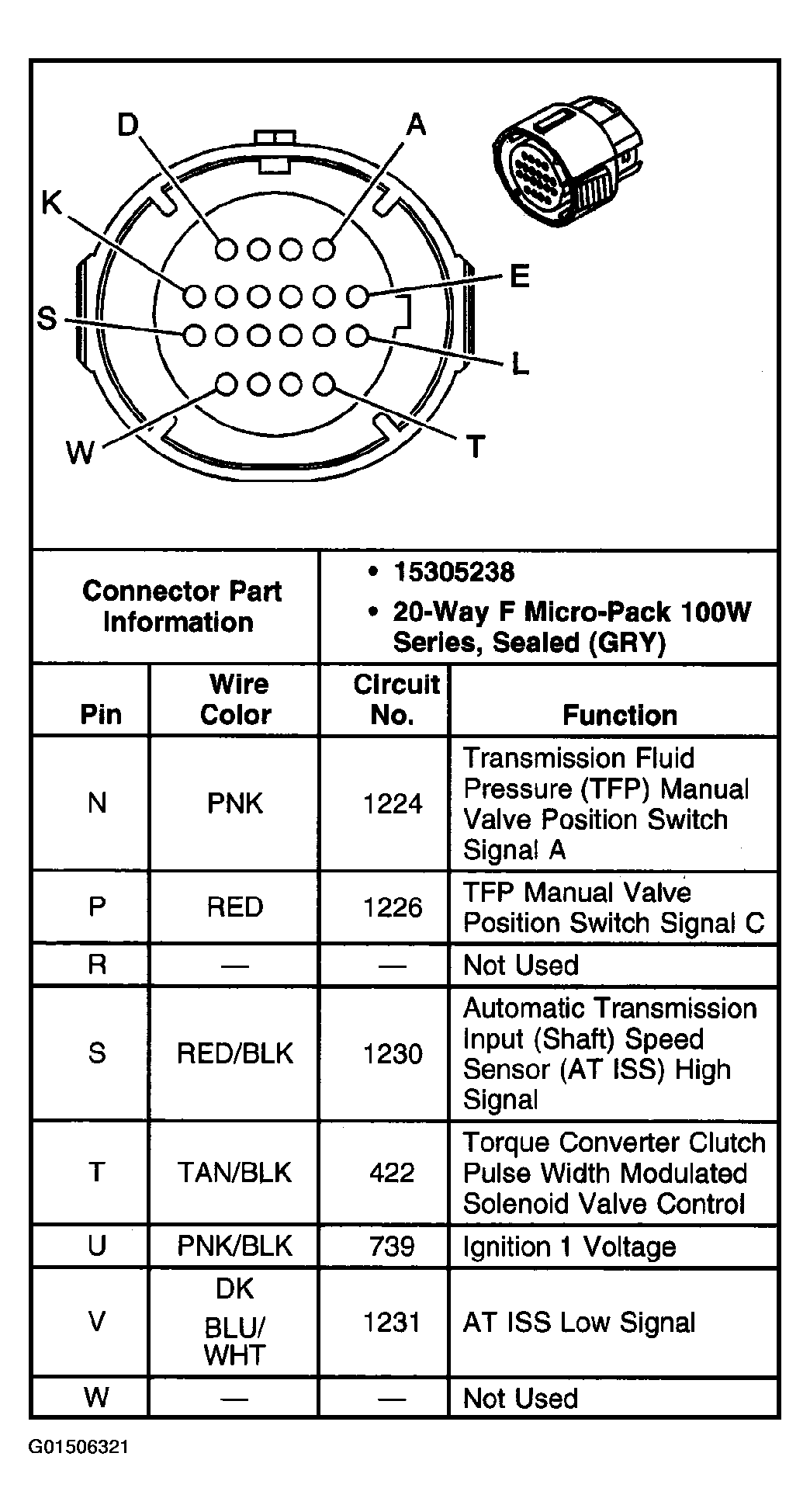

Fig 2: Identifying Engine Side Of Automatic Transmission Inline 20-Way Connector Terminals (2 Of 2)
G01506321Courtesy of GENERAL MOTORS CORP.

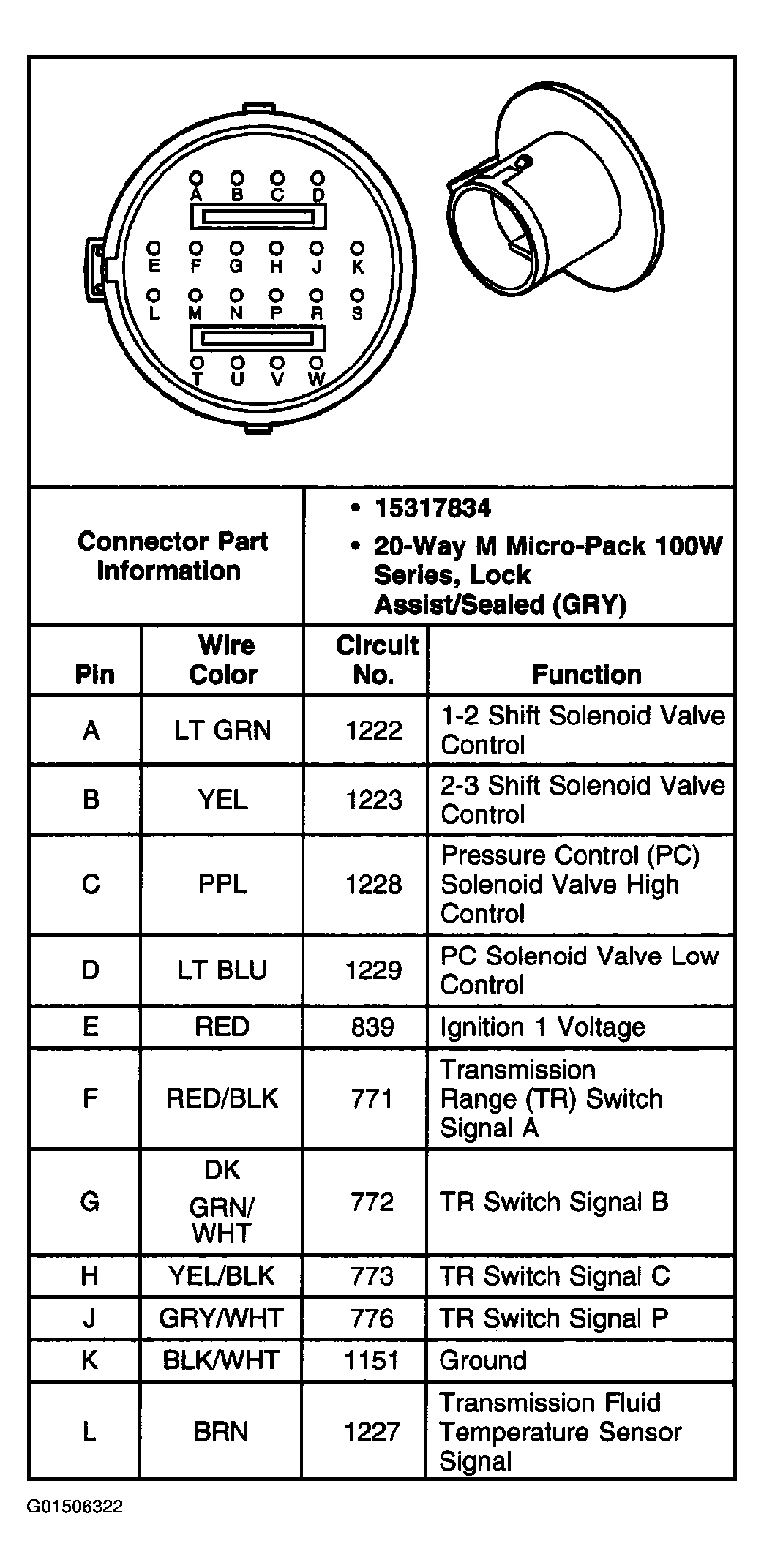

Fig 3: Identifying Transmission Side Of Automatic Transmission Inline 20-Way Connector Terminals (1 Of 2)
G01506322Courtesy of GENERAL MOTORS CORP.

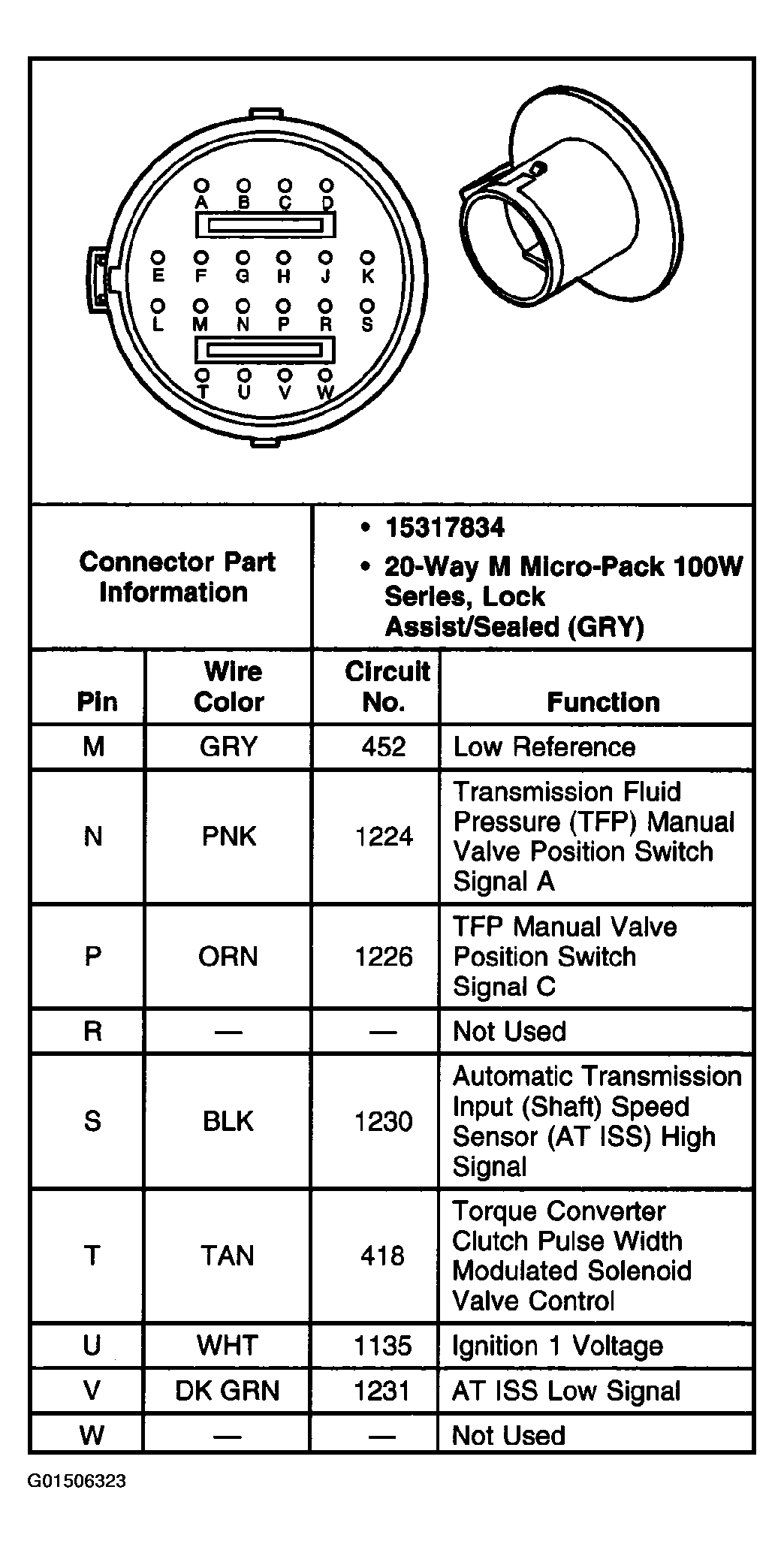

Fig 4: Identifying Transmission Side Of Automatic Transmission Inline 20-Way Connector Terminals (2 Of 2)
G01506323Courtesy of GENERAL MOTORS CORP.
