Home >> Oldsmobile >> 2003 >> Aurora >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - 4T80-E >> Specifications >> Line Pressure

Line Pressure

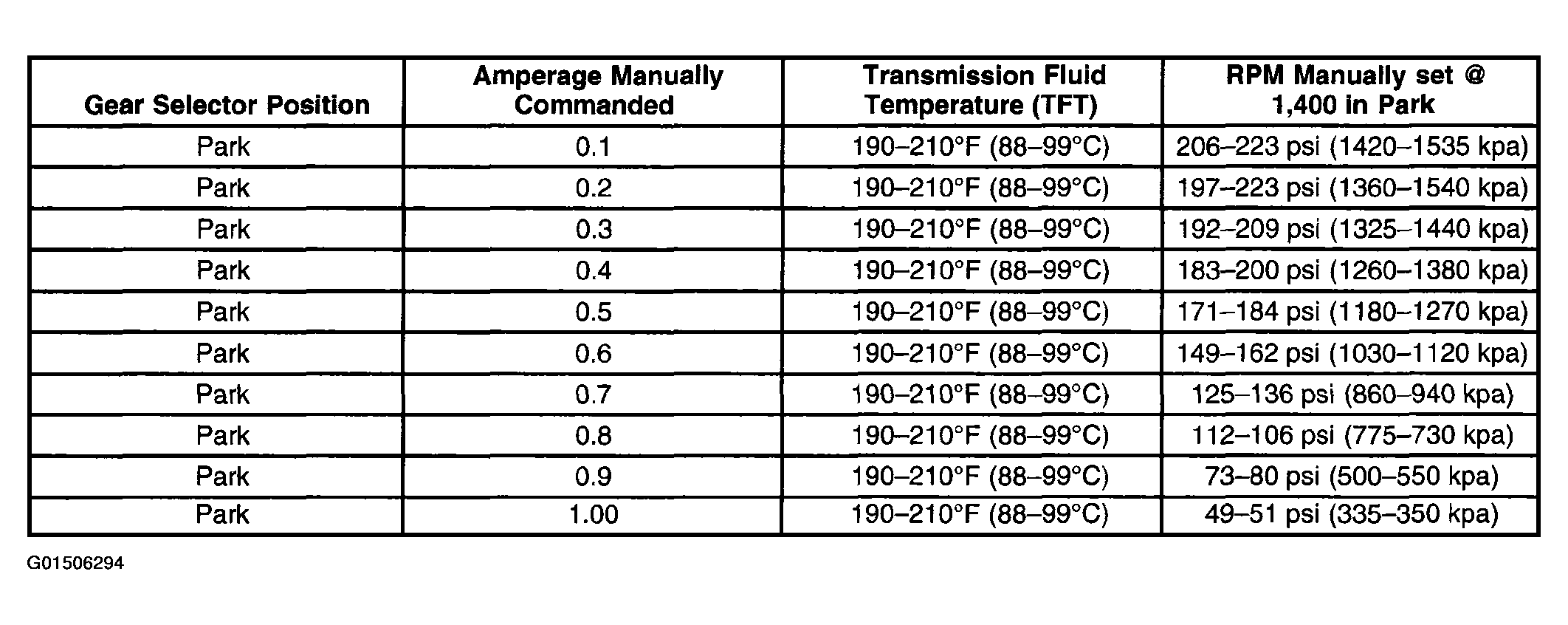

Fig 1: Line Pressure Table

G01506294

Courtesy of GENERAL MOTORS CORP.
